ATX Server Motherboards
// ATX Industrial Motherboards
// SP3
// SoC (System on a Chip)
// 288-pin DDR4 DIMM
// [2 | 4] x G-LAN (Back side)
// 2 x USB (Back side)
// 2 x USB (internal)
// 1 x Seriell I/O
// Digital I/O (8-Bit)
// 2 x PCIe x8
// 5 x PCIe x16
// Power Supply ATX
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

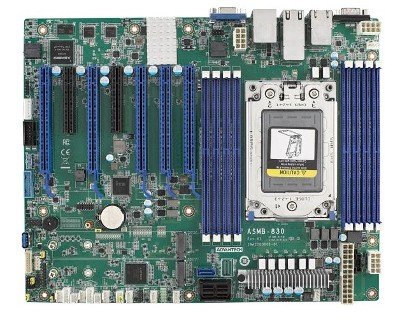

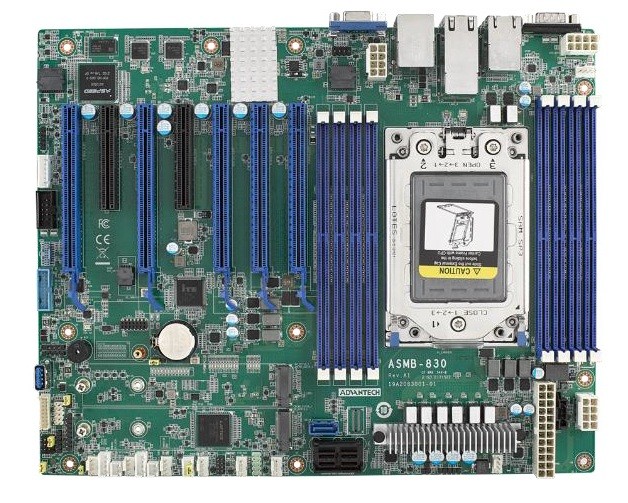

Basic Module: Advantech ASMB-830
| General information | ||||
| SKU / Item Number | ASMB-830 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Series | AMD EPYC 7002/7003 series | ||
| Socket | SP3 | |||
| Processor 2 | Thermal Design Power (TDP) | 225 W | ||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 288-pin DDR4 DIMM | ||
| Memory Type | DDR4 | |||
| DIMM Type | Registered DIMM | |||
| Slots | 4 Pce | |||
| Maximum expansion | 128 GB | |||
| ECC (Error-Correcting Code) | is supported | |||
| I/O controller | Controller 1 | I/O controller | ITE IT8528E / FX | |
| IPMI (Intelligent Platform Management Interface) | IPMI controller | Aspeed AST2500 BMC | ||
| Version | 2.0 | |||
| Graphics | ||||
| Processor | Aspeed AST2500 BMC | |||
| Extension | ||||
| PCIe x8 | Generation | 4 | ||
| x8 signal | 2 Pce | |||
| PCIe x16 | x16 signal | Generation | 4 | |
| Quantity | 5 Pce | |||
| PCIe Interfaces | 2x PCIe x8, 5x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×4 (Gen 4), SATA III | |||
| Supported dimensions | 2280, 22110 | |||
| Slot 2 | Key ID | M | ||
| Interface | PCIe ×4 (Gen 4) | |||
| Supported dimensions | 2280, 22110 | |||
| M.2 Key IDs | M | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210AT PCIe (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Controller | Chipset | -, Intel X550-AT2 (10 Gbps) | ||
| Quantity | 1 Pce, - | |||
| Network | 2x G-LAN | |||

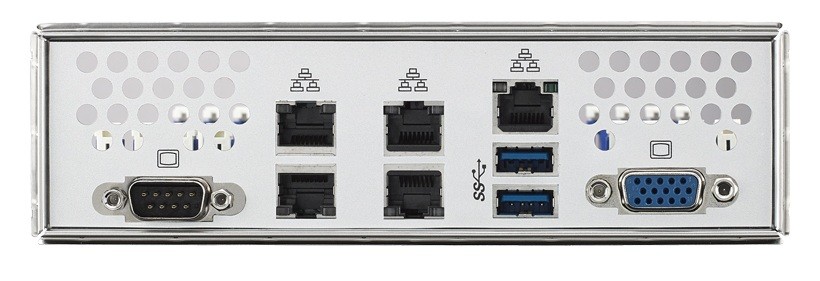

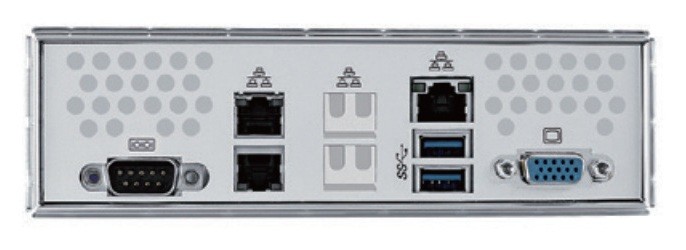

| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce, 4 Pce | ||
| USB | USB 3.2 (Gen 1) | 2 Pce | ||
| Management Ports | Amount | 1 Pce | ||
| Connenctor | RJ-45 | |||
| Internal I/O | ||||
| USB | USB 3.2 | Ports (Type-A socket) | 1 Pce | |
| Key-A Header (20-pin) | 1 Pce | |||
| Generation | Gen. 1 | |||
| PS/2 | pin header | 1 Pce | ||
| Serial | RS-232 | Ports (2.54 mm pitch) | 1 Pce | |
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| LPC | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Serial Attached SCSI (SAS) | SAS Version | SAS 2.0 (6 Gbps, 600 MB/s) | ||
| SAS connector plug | Type SFF-8643 | |||
| SAS Connectors / Ports | 2 x Mini-SAS (2 x 4 ports) | |||
| Chassis Intrusion Detection | Yes | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | TPM header | |||
| Power Supply | ||||
| Typ (Input) | ATX | Connector | 2 x 8-pin ATX (12V DC), 8-pin ATX (12V DC), 24-pin ATX | |
| Power supply - Input | DDR5 | |||
| PMBus connector | Yes | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 10 to 95%, non-condensing | ||
| Storage | 10 to 95%, non-condensing | |||
| Dimensions | Form factor | ATX | ||
| Width | 304 mm | |||
| Deep | 244 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
