Fortron Source PM500

PM500-12B, PM500-12C, PM500-13-1B, PM500-13-1C, PM500-13B, PM500-13C, PM500-14B, PM500-14C, PM500-15B, PM500-15C, PM500-17B, PM500-17C, PM500-18B, PM500-18C, PM500-19B, PM500-19C

Medical Power Supplies

PRODUCT FEATURES

// Medical Power Supplies
// [450 | 500] W

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: Fortron Source PM500

General information
SKU / Item NumberPM500PM500-12B, PM500-12C, PM500-13-1B, PM500-13-1C, PM500-13B, PM500-13C, PM500-14B, PM500-14C, PM500-15B, PM500-15C, PM500-17B, PM500-17C, PM500-18B, PM500-18C, PM500-19B, PM500-19C
Product Basic Data
ManufacturerFortron Source
Power Supply
Typ (Input)ACRange90~264V
Input frequency47 to 63 Hz
Power supply - InputAC: 90~264V
Output wattage450 W, 500 W
EfficiencyAt 100% load / 25°C90 %, 91 %
Typ (Output)DCWide RangeNo
Range12V, 15V, 18V, 24V, 28V, 36V, 48V, 57V
Current8,78 A, 10,42 A, 13,89 A, 17,86 A, 20,84 A, 27,78 A, 30 A, 37,5 A
Output Ripple & Noise Max120 mV, 150 mV, 180 mV, 240 mV, 280 mV, 360 mV, 480 mV, 570 mV
Mechanical / Environment
TemperatureOperation-10°C to 70°C
Storage-40°C to 85°C
Relative humidityOperation5 to 95%, non-condensing
Storage5 to 95%, non-condensing

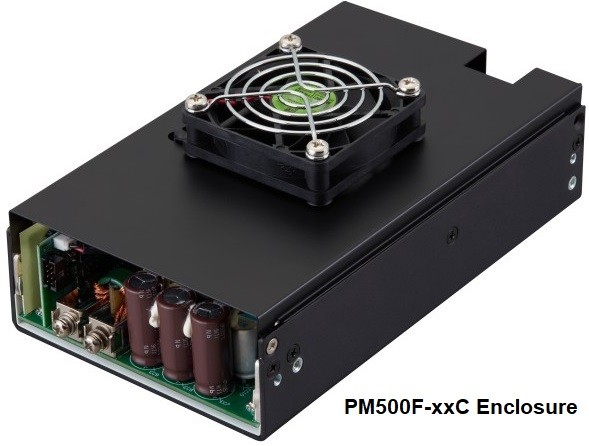

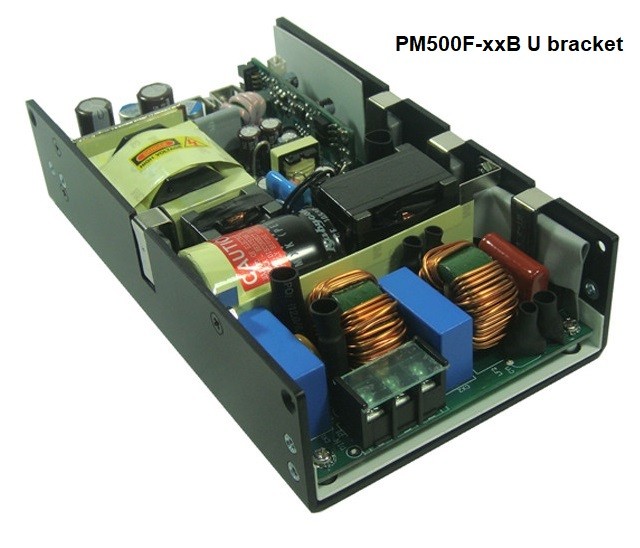

DimensionsForm factorOpen Frame (Housing), Open Frame (U Bracket)
Width101,6 mm
Deep177,8 mm
Height42,6 mm, 44,5 mm
Weight1000 g, 1140 g
MTBF (Mean Time Between Failures)MTBF at 25°C100.000 h
Calculation modelMIL-HDBK-217F
Certificates / Conformities
CEYes
ULYes
Additional certificates / compliance approvalsCB, CSA C22.2 No. 62368-1, EN 55011, EN 55024, EN 55032, EN 60601-1-2, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2 (Electrostatic Discharge), EN 61000-4-3, EN 61000-4-4 (EFT), EN 61000-4-5 (2 kV Surge Protection), EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, TUV 60601, VCCI
RoHS compliantYes
