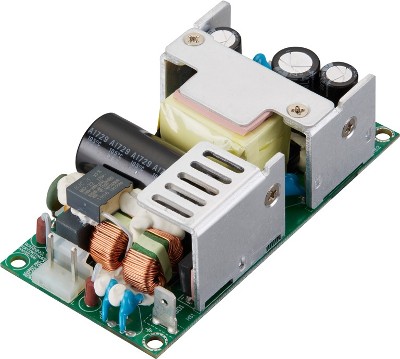

Fortron Source FSP100M-K24

FSP100M-K24-12A, FSP100M-K24-15A, FSP100M-K24-18A, FSP100M-K24-24A, FSP100M-K24-28A, FSP100M-K24-36A, FSP100M-K24-48A

Open-Frame Power Supplies

PRODUCT FEATURES

// Open-Frame Power Supplies
// 100 W

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Fortron Source FSP100M-K24

General information
SKU / Item NumberFSP100M-K24FSP100M-K24-12A, FSP100M-K24-18A, FSP100M-K24-24A, FSP100M-K24-28A, FSP100M-K24-36A, FSP100M-K24-48A, FSP100M-K24-15A
Product Basic Data
ManufacturerFortron Source
Power Supply
Typ (Input)ACRange80-264V
Input frequency47 to 63 Hz
Power supply - InputAC: 80~264V
Output wattage100 W
EfficiencyAt 100% load / 25°C90 %
Typ (Output)DCRange12V, 15V, 18V, 24V, 28V, 36V, 48V
Current2,09 A, 2,78 A, 3,58 A, 4,17 A, 5,56 A, 6,67 A, 8,34 A
Mechanical / Environment
TemperatureOperation-20° down to 70°C
Storage-40°C to 85°C
Relative humidityOperation5 to 95%, non-condensing
DimensionsForm factorOpen frame (PCB)
Width50,8 mm
Deep101,6 mm
Height30,3 mm
Weight155 g
MTBF (Mean Time Between Failures)MTBF at 25°C150.000 h
Calculation modelMIL-HDBK-217F
Certificates / Conformities
CEYes
ULYes
FCCClass BYes
Additional certificates / compliance approvalsBF Class Insulation, EN 55011, EN 55022, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2 (Electrostatic Discharge), EN 61000-4-3, EN 61000-4-4 (EFT), EN 61000-4-5 (2 kV Surge Protection), EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, IEC 60601-1:2015, VCCI
RoHS compliantYes
