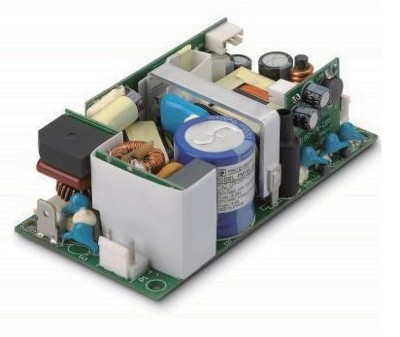

Fortron Source FSP150M-K24

FSP150M-K24-12, FSP150M-K24-18, FSP150M-K24-24, FSP150M-K24-36, FSP150M-K24-48

Open-Frame Power Supplies

PRODUCT FEATURES

// Open-Frame Power Supplies
// 150 W

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Fortron Source FSP150M-K24

General information
SKU / Item NumberFSP150M-K24FSP150M-K24-12, FSP150M-K24-18, FSP150M-K24-24, FSP150M-K24-36, FSP150M-K24-48
Product Basic Data
ManufacturerFortron Source
Power Supply
Typ (Input)ACRange80-264V
Input frequency47 to 63 Hz
Power supply - InputAC: 80~264V
Output wattage150 W
EfficiencyAt 100% load / 25°C82 %
Typ (Output)DCRange12V, 18V, 24V, 36V, 48V
Current3,13 A, 4,17 A, 6,25 A, 8,34 A, 12,5 A
Mechanical / Environment
TemperatureOperation0°C to 70°C
Storage-40°C to 85°C
Relative humidityOperation10 to 90%, non-condensing
Storage5 to 95%, non-condensing
DimensionsForm factorOpen frame (PCB)
Width50,8 mm
Deep101,6 mm
Height30,5 mm
Weight200 g
MTBF (Mean Time Between Failures)MTBF at 25°C250.000 h
Calculation modelMIL-HDBK-217F
Certificates / Conformities
CEYes
ULYes
FCCClass BYes
Additional certificates / compliance approvalsBF Class Insulation, EN 55011, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2 (Electrostatic Discharge), EN 61000-4-3, EN 61000-4-4 (EFT), EN 61000-4-5 (2 kV Surge Protection), EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, IEC 60601-1-2:2014, IEC 60601-1:2015, VCCI
RoHS compliantYes
