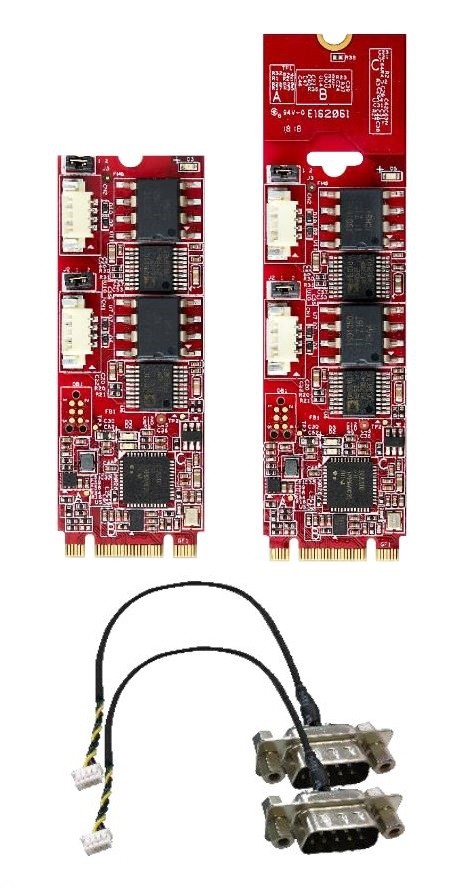

Innodisk EGPC-B201

EGPC-B201-W1, EGPC-B201-W2, EGPC-B201-W3, EGPC-B201-W4, EGPC-B201-W5, EGPC-B201-W6

CAN Bus Interface Cards

PRODUCT FEATURES

// M.2 CAN Bus Interface Cards
// 4 x CAN Bus [CAN 2.0B
// CANopen
// SAE J1939]

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: Innodisk EGPC-B201

General information
	SKU / Item Number			EGPC-B201
Product Basic Data
	Manufacturer			Innodisk
Extension
	M.2	Slot 1	Key ID	B + M
		M.2 Key IDs		B + M
External I/O
	CAN bus	Connector		DB-9
		piece		2 Pce
Internal I/O
	CAN bus	Version 2.0B (with isolation)		2 Pce, -
		J1939 (with isolation)		2 Pce, -
		CANopen (with isolation)		2 Pce, -
		Protocol		CAN 2.0B, CANopen, SAE J1939
OS / Software
	Windows	Windows XP (32/64-bit)		partially supported
		Windows 7 (32/64-bit)		is supported
		Windows 8 (32-bit)		is supported
		Windows 8 (64-bit)		is supported
		Windows 8.1 (32-bit)		is supported
		Windows 8.1 (64-bit)		is supported
		Windows 10 (64-bit)		is supported
	Linux	Distribution		Linux
		Kernel		3.0.35
	QNX	Release		6.6
	Supported OS			Linux, QNX, Windows
Mechanical / Environment
	Temperature	Operation		-40°C to 85°C
		Storage		-55°C to 95°C
	Thermal Design Power (TDP)			2,69 W
	Dimensions	Form factor		M.2
		Type		2260, 2280
		Interface		PCI Express 2.0 x 1
		Width		22 mm
		Deep		60 mm, 80 mm
		Height		8,05 mm
	Vibration	Vibration		5G, 7 to 2000 Hz
	Shock	Measurement Data		50G, 0.5 ms
Certificates / Conformities
	CE			Yes
	FCC	Class A		Yes
	Additional certificates / compliance approvals			EN 61000-4-2 (Electrostatic Discharge), IEC 60950-1
	RoHS compliant			Yes

Product Change Notification (PCN)

This PCN is being issued to announce a PCB replacement on Innodisk EGPC-B201 product series to: 1. Fix the issue of random occurrences where the device cannot be detected after reboot
Revision:	E2008
Revision date:	30. November 2020
Last purchase date:
Last shipping date:
Affected Products:	EGPC-B201
Note Document:	PCN_E2008 EGPC-B201 Product PCB Replacement.pdf
