CAN Bus Interface Cards
// M.2 CAN Bus Interface Cards
// 1 x CAN Bus [CAN FD]
Sales only to business customers.
Delivery time: upon request

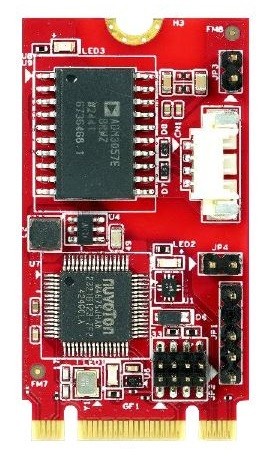

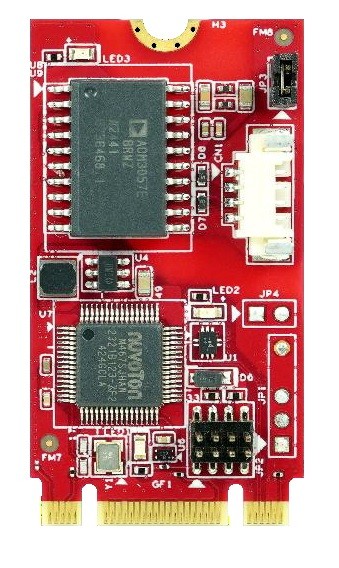

Basic Module: Innodisk EGUC-F1S3
| General information | ||||
| SKU / Item Number | EGUC-F1S3 | |||
| Product Basic Data | ||||
| Manufacturer | Innodisk | |||
| Product ID | EGUC-F1S3-W1 | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B + M | |
| Supported dimensions | 2242 | |||
| M.2 Key IDs | B + M | |||
| External I/O | ||||
| CAN bus | Connector | DB-9 | ||
| piece | 1 Pce | |||
| Protocol | CAN FD | |||
| Baud rate | 10 Kbps, 20 Kbps, 50 Kbps, 125 Kbps, 250 Kbps, 500 Kbps, 800 Kbps, 1000 Kbps | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Windows 11 | Supported | |||
| Linux | Distribution | Linux | ||
| Kernel | 3.0.35 | |||
| Supported OS | Windows, Linux | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -40°C to 85°C | ||
| Storage | -55°C to 95°C | |||
| Thermal Design Power (TDP) | 2,62 W | |||
| Dimensions | Form factor | M.2 | ||
| Type | 2242 | |||
| Interface | USB 2.0 | |||
| Width | 22 mm | |||
| Deep | 42 mm | |||
| Height | 7,55 mm | |||
| Vibration | Vibration | 5G, 7 to 2000 Hz | ||
| Shock | Measurement Data | 50G, 0.5 ms | ||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Additional certificates / compliance approvals | EN 61000-4-2 (Electrostatic Discharge), IEC 60950-1, ISO 11898 | |||
| RoHS compliant | Yes | |||
| Manufacturer's warranty | ||||
| Manufacturer's warranty | 3 years | |||
