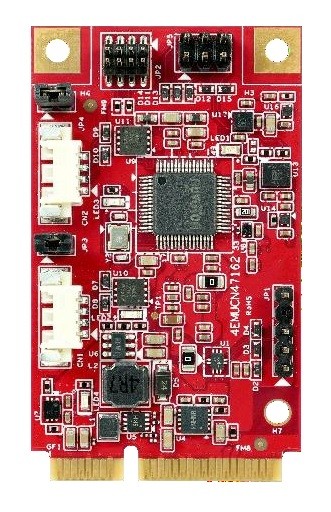

Innodisk EMUC-F2I3

CAN Bus Interface Cards

PRODUCT FEATURES

// mPCIe CAN Bus Interface Cards
// 2 x CAN Bus [CAN FD]

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: Innodisk EMUC-F2I3

General information
	SKU / Item Number		EMUC-F2I3
Product Basic Data
	Manufacturer		Innodisk
	Product ID		EMUC-F2I3-W1
External I/O

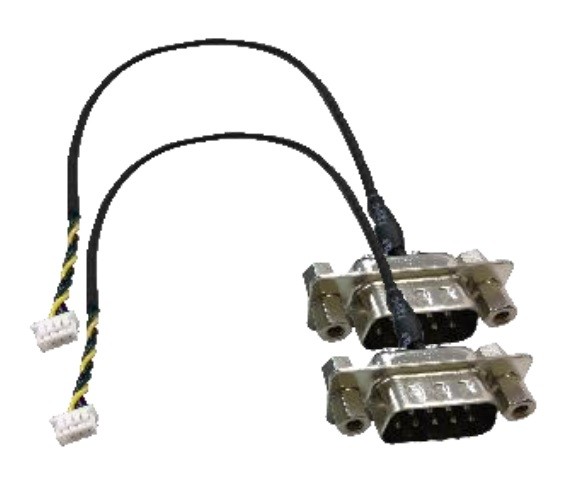

	CAN bus	Connector	DB-9
		piece	2 Pce
		Protocol	CAN FD
Sensor
	3D sensor		3D Magnetometer
OS / Software
	Windows	Windows 10 (64-bit)	is supported
	Linux	Distribution	Linux
	Supported OS		Windows, Linux
Mechanical / Environment
	Temperature	Operation	-40°C to 85°C
		Storage	-55°C to 95°C
	Thermal Design Power (TDP)		1,573 W
	Dimensions	Form factor	mPCIe
		Interface	USB 2.0
		Width	30 mm
		Deep	50,9 mm
		Height	8,45 mm
	Vibration	Vibration	5G, 5 to 500 Hz
	Shock	Measurement Data	50G, 0.5 ms
Certificates / Conformities
	CE		Yes
	Additional certificates / compliance approvals		EN 61000-4-2 (Electrostatic Discharge)
	RoHS compliant		Yes

	Products	Manufacturer	Article Number
	mPCIe CAN Bus Interface Cards, 2 x CAN Bus [CAN 2.0B, CANopen, SAE J1939]		EMPC-B2S1
	mPCIe CAN Bus Interface Cards, 2 x CAN Bus [CAN 2.0B, CANopen, SAE J1939]		EMUC-B202
	mPCIe CAN Bus Interface Cards, 2 x CAN Bus [CAN 2.0B, CANopen, SAE J1939]		EMUC-B2S3
	mPCIe CAN Bus Interface Cards, 2 x CAN Bus [CAN FD]		EMUC-F2S3
