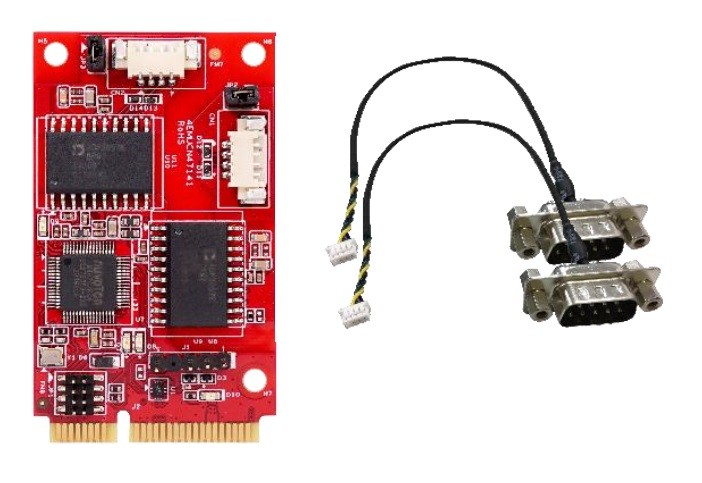

Innodisk EMUC-B2S3

EMUC-B2S3-W1, EMUC-B2S3-W2

CAN Bus Interface Cards

PRODUCT FEATURES

// mPCIe CAN Bus Interface Cards
// 2 x CAN Bus [CAN 2.0B
// CANopen
// SAE J1939]

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Innodisk EMUC-B2S3

General information
SKU / Item NumberEMUC-B2S3EMUC-B2S3-W1, EMUC-B2S3-W2
Product Basic Data
ManufacturerInnodisk
External I/O
CAN busConnectorDB-9
piece2 Pce
ProtocolCAN 2.0B, CANopen, SAE J1939
Baud rate125 Kbps, 250 Kbps, 500 Kbps, 800 Kbps, 1000 Kbps, User-defined
OS / Software
WindowsWindows XP (32/64-bit)partially supported
Windows 7 (32/64-bit)is supported
Windows 8 (32-bit)is supported
Windows 8 (64-bit)is supported
Windows 8.1 (32-bit)is supported
Windows 8.1 (64-bit)is supported
Windows 10 (64-bit)is supported
LinuxDistributionLinux, Ubuntu 16.04
Supported OSLinux, Windows
Mechanical / Environment
TemperatureOperation-40°C to 85°C
Storage-55°C to 95°C
Thermal Design Power (TDP)2 W
DimensionsForm factormPCIe
InterfaceUSB 2.0
Width30 mm
Deep50,9 mm
Height8,35 mm
VibrationVibration5G, 5 to 500 Hz
ShockMeasurement Data50G, 0.5 ms
Certificates / Conformities
CEYes
FCCClass AYes
Additional certificates / compliance approvalsEN 61000-4-2 (Electrostatic Discharge), IEC 60950-1, ISO 11898
RoHS compliantYes
