Panel PC for Terminal/POS
// 23.8" TFT LCD Panel-PC
// [Intel Core i5-1145G7E | Intel Core i7-1185G7E]
// Touchscreen (Capacitive)
// IP65 (front)
// SoC (System on a Chip)
// 260-pin DDR4 SO-DIMM
// 2 x G-LAN (Back side)
// 7 x USB (Back side)
// 1 x PCIe x4
// 1 x Mini-PCIe
// Power Supply DC [19V | -]
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: Advantech POC-624
| General information | ||||
| SKU / Item Number | POC-624 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Tiger Lake | |||
| Number | Intel Core i5-1145G7E, Intel Core i7-1185G7E | |||
| Socket | BGA 1449 | |||
| Base frequency | 1,5 GHz, 1,8 GHz | |||
| Max Turbo Frequency | 4,1 GHz, 4,4 GHz | |||
| Cache | 8 MB, 12 MB | |||
| Thermal Design Power (TDP) | 15 W | |||
| Maximum Turbo Power Consumption | 28 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 260-pin DDR4 SO-DIMM | ||
| Memory Type | DDR4 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 3200 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 64 GB | |||
| Graphics | ||||
| Processor | Intel Iris Xe Graphics | |||
| Display | ||||
| Display Typ | 23.8" TFT LCD | |||
| Max. Resolution | 1920 x 1080 | |||
| Aspect Ratio | 16 : 9 | |||
| Touch Screen | Type | Capacitive | ||
| Multitouch | 10-point | |||
| Audio | Speaker | 2 Pce | ||
| Watt | 2 W | |||
| Extension | ||||
| PCIe x4 | x4 signal | 1 Pce | ||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| PCIe Interfaces | 1x Mini-PCIe, 1x PCIe x4 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | E | ||
| Interface | WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | E, M | |||
| Storage | M.2 | |||
| Network | ||||
| Wireless | RFID | Type | 13.56 MHz (ISO 14443 A/B, FeliCa) | |

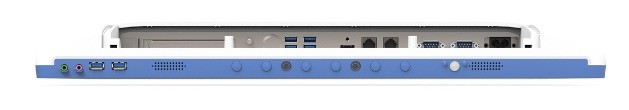

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DP USB-C | 1 Pce | |||
| Audio | Combo Jack | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 | DB-9 | 2 Pce | |
| USB | USB 2.0 | 2 Pce | ||
| USB 3.2 (Gen 2) | 4 Pce | |||
| USB v3.2 (Gen 2, Type C) | 1 Pce | |||
| Internal I/O | ||||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Safety | ||||
| Trusted Platform Module (TPM) | fTPM 2.0 (Firmware Simulation) | |||
| Power Supply | ||||
| Typ (Input) | AC | Range | 100~240V, - | |
| DC | Range | 19V, - | ||
| Connector | -, DC Power Jack | |||
| Maximum power consumption | 150 W, 250 W | |||
| Inserts | ||||
| Internal | 2.5" installation slot | 1 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 35°C | ||
| Storage | 0° to 50°C | |||
| Dimensions | Form factor | 23.8" | ||
| Width | 583 mm | |||
| Deep | 68 mm | |||
| Height | 387 mm | |||
| IP Rating | IP65 (front) | |||
| Weight | 7780 g | |||
| Controls | Power | 1 Pce | ||

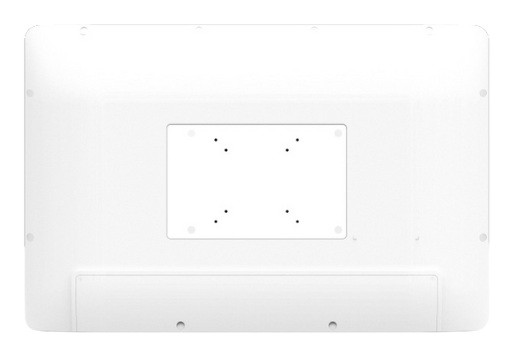

| Mounting option | VESA | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Windows 11 IoT | is supported | |||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows Embedded | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Additional certificates / compliance approvals | EN 60601-1-2, IEC 60601-1-2:2014, UKCA | |||
| RoHS compliant | Yes | |||
