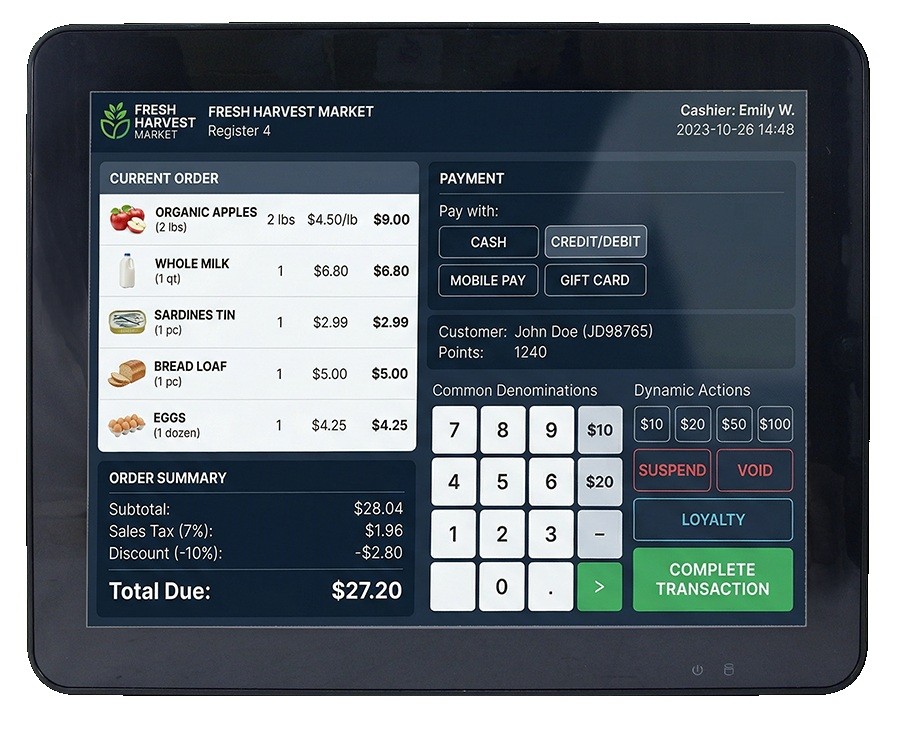

Panel PC with IP65 (Front Side)
// 15" TFT LCD Panel-PC
// Intel Atom x7211E
// Touchscreen (Analog Resistive)
// Passive cooled
// IP65 (front) / IP41 (back)
// SoC (System on a Chip)
// 262-pin SO-DIMM DDR5
// 2 x G-LAN (Back side)
// 6 x USB (Back side)
// Power Supply DC 12V
Sales only to business customers.
Delivery time: upon request
Basic Module: Avalue RITY-1539
| General information | ||||
| SKU / Item Number | RITY-1539 | |||
| Product Basic Data | ||||
| Manufacturer | Avalue | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Alder Lake | |||
| Number | Intel Atom x7211E | |||
| CPU cores | 2 Pce | |||
| Socket | BGA 1264 | |||
| Max Turbo Frequency | 3,2 GHz | |||
| Cache | 6 MB | |||
| Thermal Design Power (TDP) | 6 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 4800 MT/s | |||
| Slots | 1 Pce | |||
| Maximum expansion | 32 GB | |||
| Internal memory | 8 GB | |||
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| Display | ||||
| Display Typ | 15" TFT LCD | |||
| Max. Resolution | 1024 x 768 | |||
| Aspect Ratio | 4 : 3 | |||
| Contrast | 2500:1 | |||
| Luminance | 300 cd/m² | |||
| Viewing angle | Horizontal | 176 ° | ||
| Vertical | 176 ° | |||
| Backlight | Type | LED | ||
| Touch Screen | Type | Analog Resistive | ||
| Interface | USB | |||
| Audio | Speaker | 2 Pce | ||
| Watt | 2 W | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | E | |||

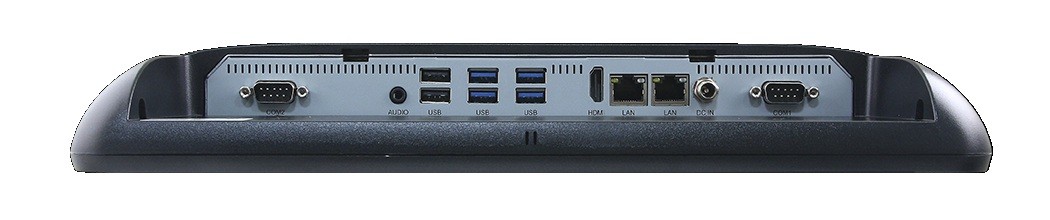

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| Audio | Combo Jack | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 2 Pce | |
| USB | USB 2.0 | 2 Pce | ||
| USB 3.0 | 4 Pce | |||
| Internal I/O | ||||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | Male connector (screw-in) | |||
| Power supply - Input | DC: 12V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Inserts | ||||
| Internal | 2.5" installation slot | 1 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 40°C | ||
| Storage | 0° to 60°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 15-inch | ||
| Width | 362,1 mm | |||
| Deep | 51 mm | |||
| Height | 290,08 mm | |||
| IP Rating | IP65 (front) / IP41 (back) | |||
| Shock | Measurement Data | 10G, half sine wave, 11 ms duration | ||
| Reference Standard | IEC 68-2-27 | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Color | Black | |||
| Material | plastic | |||
| Mounting option | VESA | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Windows 11 | Supported | |||
| Linux | Distribution | Linux | ||
| Supported OS | Windows, Linux | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| UL | Yes | |||
| FCC | Class A | Yes | ||
| Additional certificates / compliance approvals | LVD (Low Voltage Directive), UKCA, VCCI | |||
| RoHS compliant | Yes | |||
