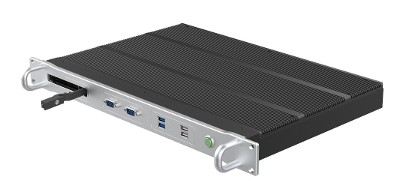

1U Server
// 19-inch
// Intel Core i5-1145G7
// BGA 1449
// DDR4
// DC: 12V
// 2 x G-LAN (Back side)
Sales only to business customers.
Delivery time: upon request
Basic Module: Artessa IT AIT-B04-I5G11
| General information | ||||
| SKU / Item Number | AIT-B04-I5G11 | |||
| Product Basic Data | ||||
| Manufacturer | Artessa IT | |||
| System | ||||
| Processor | Series | Intel Tiger Lake | ||
| Number | Intel Core i5-1145G7 | |||
| CPU cores | 4 Pce | |||
| Threads | 8 Pce | |||
| Socket | BGA 1449 | |||
| Max Turbo Frequency | 4,4 GHz | |||
| Cache | 8 MB | |||
| Basic power consumption of the processor | 12 W | |||
| Maximum Turbo Power Consumption | 28 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 260-pin DDR4 SO-DIMM | ||
| Memory Type | DDR4 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| Internal memory | 8 GB | |||
| Storage | Solid State Drive (M.2) | 128 GB | ||
| Power supply - Input | Solid State Drive (M.2) 128 GB | |||
| Graphics | ||||
| Processor | Intel Iris Xe Graphics | |||
| Internal I/O | ||||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Externe I/O (Front Panel) | ||||
| Serial | RS-232 | DB-9 | 2 Pce | |
| USB | USB 2.0 | 2 Pce | ||
| USB 3.2 (Gen 1) | 2 Pce | |||

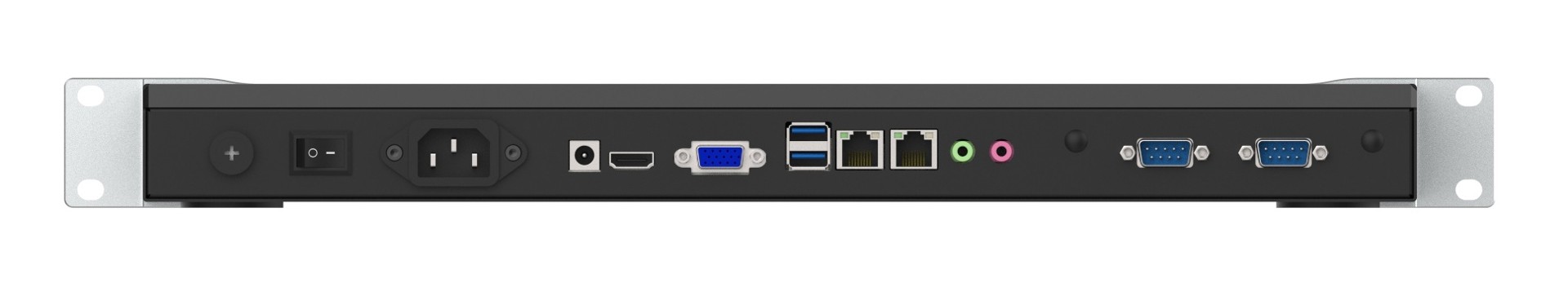

| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| HDMI | 1 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 | DB-9 | 2 Pce | |
| USB | USB 3.2 (Gen 1) | 2 Pce | ||
| Power Supply | ||||
| Typ (Input) | AC | Modules | 1 Pce | |
| Connector | C14 | |||
| DC | Wide Range | No | ||
| Range | 12V | |||
| Connector | DC Power Jack | |||
| Power supply - Input | DC: 12V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Inserts | ||||
| external | 2.5" installation slot | 1 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 50°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 90%, non-condensing | ||
| Dimensions | Form factor | 19-inch | ||
| Width | 482,6 mm | |||
| Deep | 300 mm | |||
| Height | 44 mm | |||
| Height units | 1 HE | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Power | 1 Pce | ||
| Antenna holes | 2 Pce | |||
| Color | Black / silver | |||
| Material | Aluminum, Steel | |||
| Mounting option | Rackmount | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Windows 11 | Supported | |||
| Linux | Distribution | Linux | ||
| Supported OS | Windows, Linux | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
