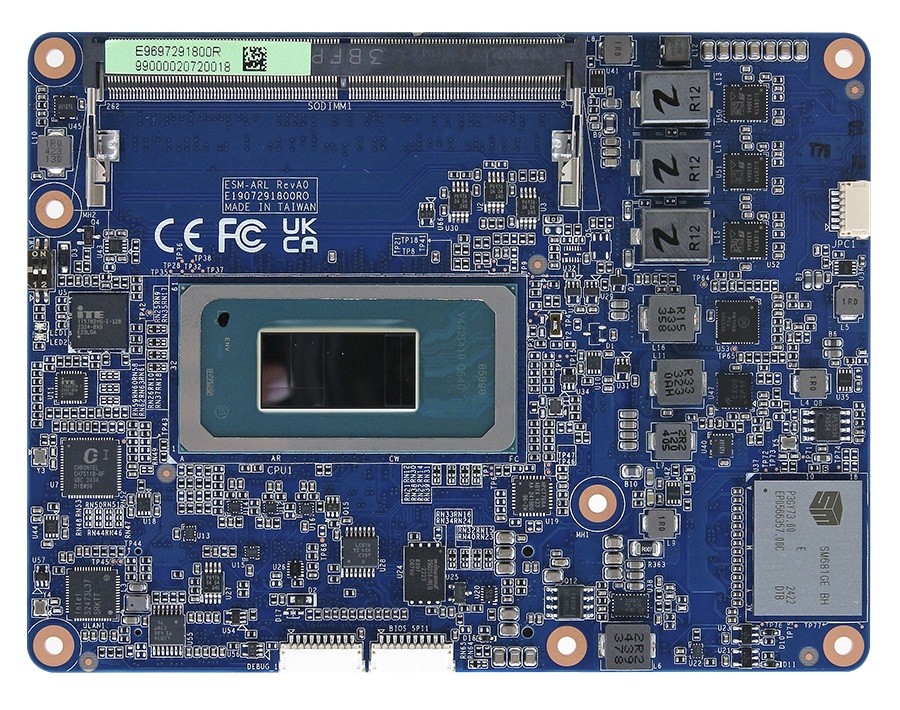

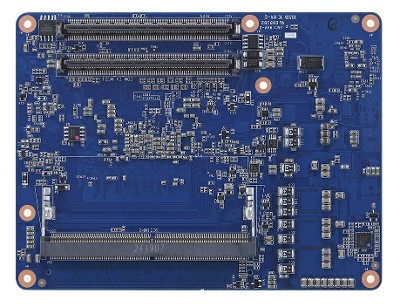

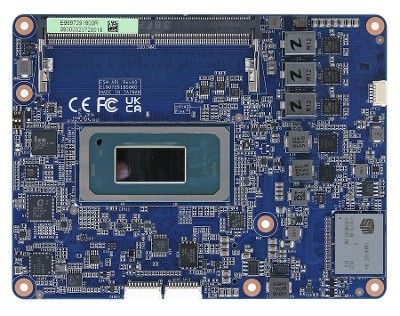

Avalue ESM-ARL

ESM-ARL-225H-A1R, ESM-ARL-225U-A1R, ESM-ARL-255H-A1R, ESM-ARL-255U-A1R

COM Express Basic

PRODUCT FEATURES

// COM Express Basic
// [Intel Core Ultra 5 Processor 225H | Intel Core Ultra 5 Processor 225U | Intel Core Ultra 7 Processor 255H | Intel Core Ultra 7 Processor 255U]
// 262-pin SO-DIMM DDR5
// LVDS|DDI
// 1 x G-LAN
// 12 x USB (internal)
// Digital I/O (8-Bit)
// 5 x PCIe x1

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Avalue ESM-ARL

General information
SKU / Item NumberESM-ARLESM-ARL-225H-A1R, ESM-ARL-225U-A1R, ESM-ARL-255H-A1R, ESM-ARL-255U-A1R
Product Basic Data
ManufacturerAvalue
System
ProcessorVertical SegmentEmbedded
SeriesIntel Arrow Lake
NumberIntel Core Ultra 5 Processor 225H, Intel Core Ultra 5 Processor 225U, Intel Core Ultra 7 Processor 255H, Intel Core Ultra 7 Processor 255U
CPU cores12 Pce, 14 Pce, 16 Pce
Threads14 Pce, 16 Pce
SocketBGA 2049
Performance core base clock frequency1,5 GHz, 1,7 GHz, 2 GHz
Performance Core Max Turbo Frequency4,8 GHz, 4,9 GHz, 5,1 GHz, 5,2 GHz
Efficient-core base clock frequency1,3 GHz, 1,5 GHz, 1,7 GHz
Efficient-core Max Turbo Frequency3,8 GHz, 4,2 GHz, 4,3 GHz, 4,4 GHz
Cache12 MB, 18 MB, 24 MB
Basic power consumption of the processor15 W, 28 W
Maximum Turbo Power Consumption57 W, 115 W
ChipsetSoC (System on a Chip)
MemoryStructure262-pin SO-DIMM DDR5
Memory TypeDDR5
DIMM TypeUnbuffered SO-DIMM
DIMM data transfer rate6400 MT/s
Slots2 Pce
Maximum expansion96 GB
BIOSAMI UEFI 256 Mbit SPI
I/O controllerController 1I/O controllerITE IT5782VG
Graphics
ProcessorIntel Arc 130T, Intel Arc 140T, Intel Graphics
Screens (Multi-display)4 displays
HDMIVersion2.1
DisplayPortVersion1.4
LVDS (Low Voltage Differential Signaling)Maximum resolution1920 x 1200 at 60 Hz
Bits24-bit
BridgeChrontel CH7511B
DDI (Digital Display Interfaces)DPMaximum resolution7680 x 4320 at 60 Hz
HDMIMaximum resolution4096 x 2304 at 60 Hz
Extension
PCIe x1Generation4
x1 Signal (Interface)5 Pce
PCIe Interfaces5x PCIe x1 slots
Audio
ChipsetIntel integrated audio
Network
G-LANControllerChipsetIntel I226LM PCIe (10/100/1000/2500 Mbps)
Quantity1 Pce
Network1x G-LAN
Internal I/O
USBUSB 2.0Interface8 Pce
USB 3.2GenerationGen. 2
Interface4 Pce
USB 4.0Interface2 Pce
Digital I/OBits8-bit1 Pce
SMBus1 Pce
LPC1 Pce
Serial Peripheral Interface (SPI)1 Pce
I²C (Inter-Integrated Circuit)1 Pce
UARTTx/Rx2 Pce
Serial ATASATA R3.0 (Interface)2 Pce
Watchdog Timer
Watchdog TimerYes
Watchdog timer (interval)Programmable via software (1 - 65535 seconds)
Safety
Trusted Platform Module (TPM)Nuvoton NPCT760AABYX
Power Supply
Typ (Input)DCWide RangeYes
Range9 to 19 volts
ConnectorCOM Express connector (2 x 220 pins per row A + B)
Power supply - InputDC: 9~19V
OS / Software
WindowsWindows 11Supported
LinuxDistributionUbuntu 24.04
Supported OSLinux, Windows
Mechanical / Environment
TemperatureOperation0° to 60°C
Storage-40°C to 75°C
Relative humidityOperation5 to 95%, non-condensing
DimensionsForm factorCOM Express Basic
Width125 mm
Deep95 mm
Certificates / Conformities
CEYes
FCCClass AYes
CompatibilityPICMG COM Express R3.1, Type 6
RoHS compliantYes
