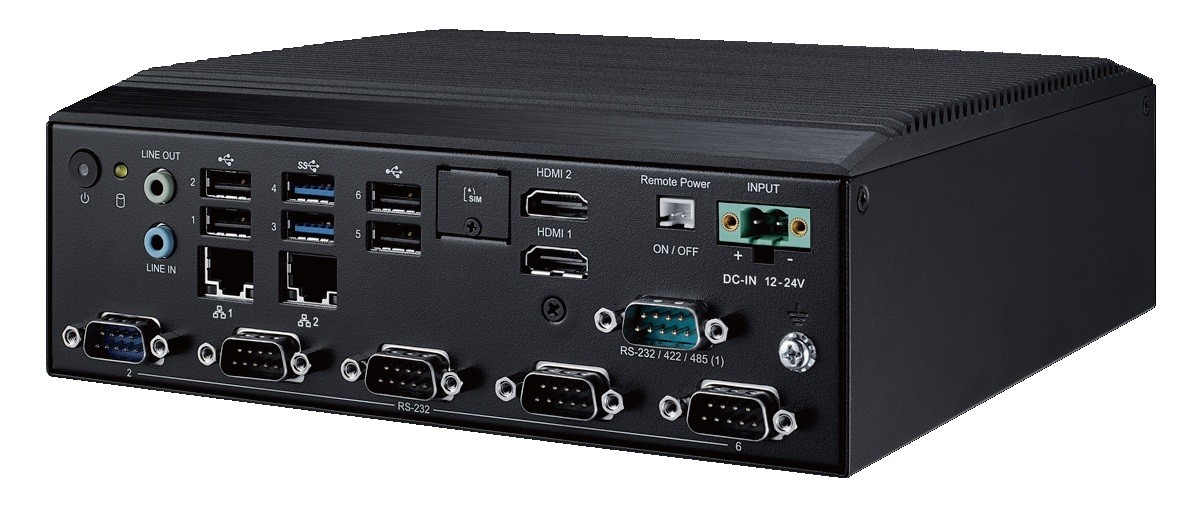

Embedded System
// Embedded System
// [Intel Core i3-N305 | Intel N97]
// Passive cooled
// 2 x Display
// 6 x Serial
// 6 x USB (Front page)
// 2 x G-LAN (Front page)
// 2 x M.2 Slot
// 12 to 24V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: Advantech AIMC-200
| General information | ||||
| SKU / Item Number | AIMC-200 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Series | Intel Alder Lake | ||
| Number | Intel Core i3-N305, Intel N97 | |||
| CPU cores | 4 Pce, 8 Pce | |||
| Threads | 8 Pce, - | |||
| Socket | BGA 1264 | |||
| Max Turbo Frequency | 3,6 GHz, 3,8 GHz | |||
| Cache | 6 MB | |||
| Thermal Design Power (TDP) | 12 W, 15 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 4800 MT/s | |||
| Slots | 1 Pce | |||
| Maximum expansion | 16 GB | |||
| BIOS | AMI SPI 256 Mbit | |||
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B | |
| Interface | 4G/LTE, 5G / Storage Module | |||
| Supported dimensions | 2242, 3042, 3052 | |||
| Slot 2 | Key ID | E | ||
| Interface | Wi-Fi | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | B, E | |||
| Network | ||||
| G-LAN | Controller | Chipset | Realtek RTL8111K-CG (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| Internal I/O | ||||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | ||

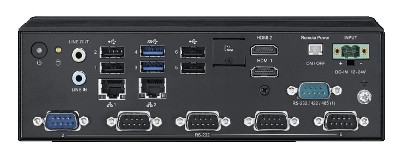

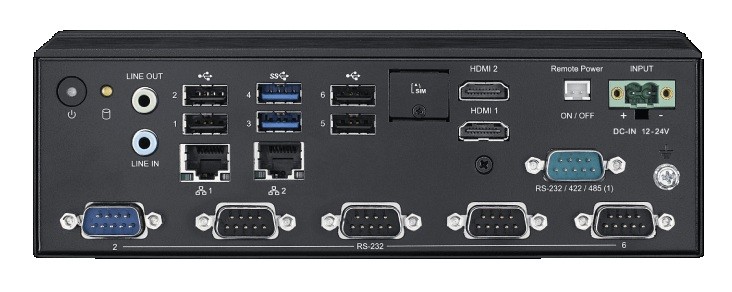

| Externe I/O (Front Panel) | ||||
| Display | HDMI | 2 Pce | ||
| Audio | Line-in | 1 Pce | ||
| Line Out | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 | DB-9 | 5 Pce | |
| RS-232 / 422 / 485 | DB-9 | 1 Pce | ||
| USB | USB 2.0 | 4 Pce | ||
| USB 3.2 (Gen 2) | 2 Pce | |||
| SIM card slot | 1 Pce | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Intel PTT (wie TPM 2.0) und TPM header | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 24V | |||
| Connector | 2-pin terminal connector | |||
| Power supply - Input | DC: 12 to 24V | |||
| Typical power consumption | 15,84 W | |||
| Maximum power consumption | 32,83 W | |||
| Cooling | ||||
| Implementation | Passive | |||
| Inserts | ||||
| Internal | 2.5" installation slot | 2 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | -20° to 60°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Storage | 5 to 95%, non-condensing | |||
| Dimensions | Form factor | Embedded System | ||
| Width | 200 mm | |||
| Deep | 200 mm | |||
| Height | 69 mm | |||
| Vibration | with HDD | 0.5G, 5 to 500 Hz | ||
| with SSD | 10-500 Hz, IEC68-2-6 (3G) | |||
| Shock | Measurement Data | 20G, 11 ms | ||
| Weight | 1800 g | |||
| Controls | Power | 1 Pce | ||
| Power (terminal connection) | 1 Pce | |||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Antenna holes | 2 Pce | |||
| Color | Black | |||
| Mounting option | Wall Mount | |||
| OS / Software | ||||
| Windows Embedded | Windows 11 IoT | is supported | ||
| Linux | Distribution | Ubuntu 22.04 | ||
| Supported OS | Linux, Windows Embedded | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| CCC | Yes | |||
| Additional certificates / compliance approvals | BSMI, LVD (Low Voltage Directive) | |||
| RoHS compliant | Yes | |||
