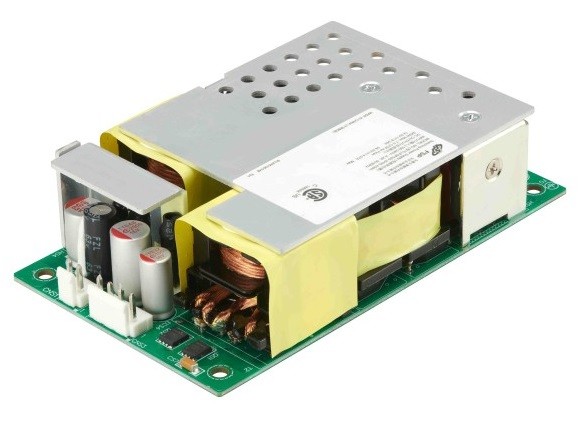

Fortron Source FSP262-2H35-A54H

Open-Frame Power Supplies

PRODUCT FEATURES

// Open-Frame Power Supplies
// 262 W

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

INQUIRY
CHAT
PHONE
COMPARE
SAVE

Basic Module: Fortron Source FSP262-2H35-A54H

General information
	SKU / Item Number			FSP262-2H35-A54H
Product Basic Data
	Manufacturer			Fortron Source
Power Supply
	Typ (Input)	AC	Range	90~264V
			Input frequency	47 to 63 Hz
	Power supply - Input			AC: 90~264V
	Output wattage			262 W
	Output Voltage	+12V	Output Current Max	8,33 A
		+54V	Output Current Max	3 A
	Efficiency	At 100% load / 25°C		91 %
Mechanical / Environment
	Temperature	Operation		-20° down to 70°C
		Storage		-40°C to 85°C
	Relative humidity	Operation		5 to 95%, non-condensing
		Storage		5 to 95%, non-condensing
	Dimensions	Form factor		Open frame (PCB)
		Width		127 mm
		Deep		76,52 mm
		Height		32 mm
	Weight			410 g
	MTBF (Mean Time Between Failures)	MTBF at 25°C		250.000 h
		Calculation model		TELCORDIA SR-332
Certificates / Conformities
	CE			Yes
	FCC	Class B		Yes
	Additional certificates / compliance approvals			EN 55032, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2 (Electrostatic Discharge), EN 61000-4-3, EN 61000-4-4 (EFT), EN 61000-4-5 (2 kV Surge Protection), EN 61000-4-6, EN 61000-4-8, EN 61000-4-11
	RoHS compliant			Yes
