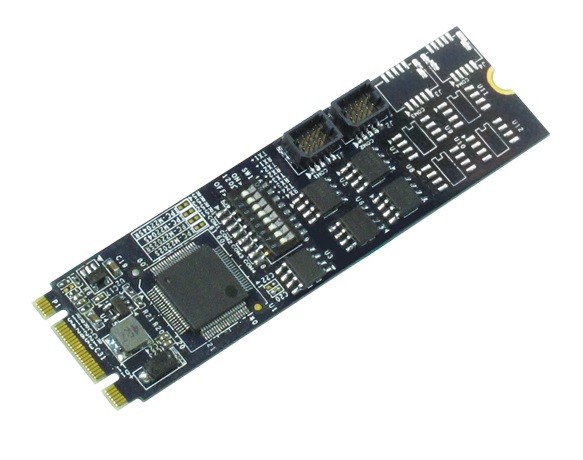

Sunix IPC-M2202S

Serial Interface Cards

PRODUCT FEATURES

// M.2 Serial Interface Cards
// 2 x Seriell I/O

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION

Basic Module: Sunix IPC-M2202S

General information
SKU / Item NumberIPC-M2202S
Product Basic Data
ManufacturerSunix
Extension
M.2Slot 1Key IDB + M
Supported dimensions2280
M.2 Key IDsB + M
External I/O
SerialRS-422 / 485DB-92 Pce
OS / Software
WindowsWindows XP (32/64-bit)is supported
Windows 7 (32/64-bit)is supported
Windows 8 (32-bit)is supported
Windows 8 (64-bit)is supported
Windows 8.1 (32-bit)is supported
Windows 8.1 (64-bit)is supported
Windows 10 (64-bit)is supported
Windows Server 2012is supported
Windows Server 2016is supported
LinuxDistributionLinux
Supported OSWindows, Linux
Mechanical / Environment
TemperatureOperation0°C to 70°C
Storage-20° to 85°C
Relative humidityOperation5 to 95%, non-condensing
DimensionsForm factorM.2
InterfacePCI Express 2.0 x 1
Width22 mm
Deep80 mm
Height6,75 mm
Certificates / Conformities
CEYes
FCCClass BYes
Additional certificates / compliance approvalsBSMI, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2 (Electrostatic Discharge), EN 61000-4-5 (2 kV Surge Protection), VCCI
RoHS compliantYes
