Embedded System
// Embedded System
// Intel Comet Lake-S
// Passiv cooled
// 3 x Display
// 2 x Serial
// 6 x USB (Front page)
// 3 x G-LAN (Front page)
// 3 x M.2 Slot
// 24V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Darveen MIC-8000
Allgemein | ||||
SKU / Artikelnummer | MIC-8000 | |||
Produktgrunddaten | ||||
Hersteller | Darveen | |||
System | ||||
Prozessor | Serie | Intel Comet Lake-S | ||
Thermal Design Power (TDP) | 65 W | |||
Chipsatz | Intel H420E | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Memory Type | DDR4 | |||
DIMM Type | Unbuffered SO-DIMM | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
BIOS | AMI SPI 128 Mbit | |||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | M | |
Interface | SATA III | |||
Unterstütze Abmaße | 2280 | |||
Slot 2 | Key ID | M | ||
Interface | SATA III | |||
Unterstütze Abmaße | 2280 | |||
Slot 3 | Key ID | E | ||
Interface | WLAN | |||
Unterstütze Abmaße | 2230 | |||
Slot 4 | Key ID | B | ||
Interface | USB 3.0 | |||
Unterstütze Abmaße | 3052 | |||
M.2 Key IDs | E, M | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Micro SIM | |||
Storage | M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | ||
Anzahl | 2 St | |||
Netzwerk | 3x G-LAN | |||

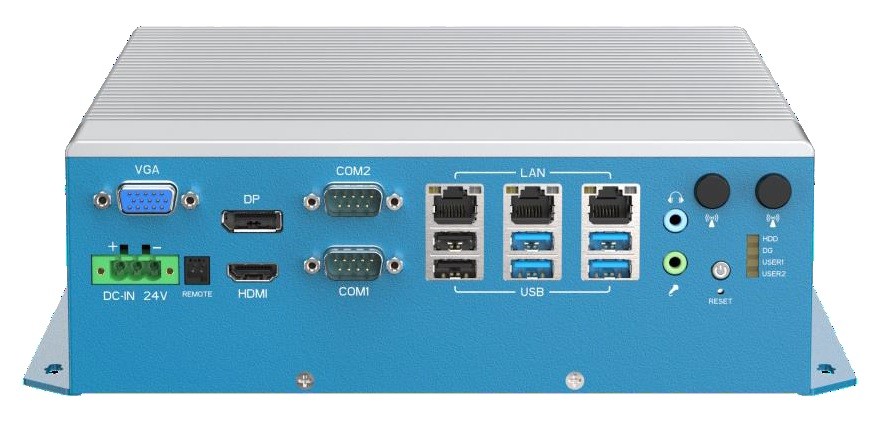

Externe I/O (Frontseite) | ||||
Anzeige | VGA | 1 St | ||
HDMI | 1 St | |||
Displayport | 1 St | |||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 3 St | ||
Seriell | RS-232 | DB-9 | 1 St | |
RS-232 / 422 / 485 | DB-9 | 1 St | ||
USB | USB v2.0 | 2 St | ||
USB v3.0 | 4 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 24V | |||
Anschluss | 3 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 24V | |||

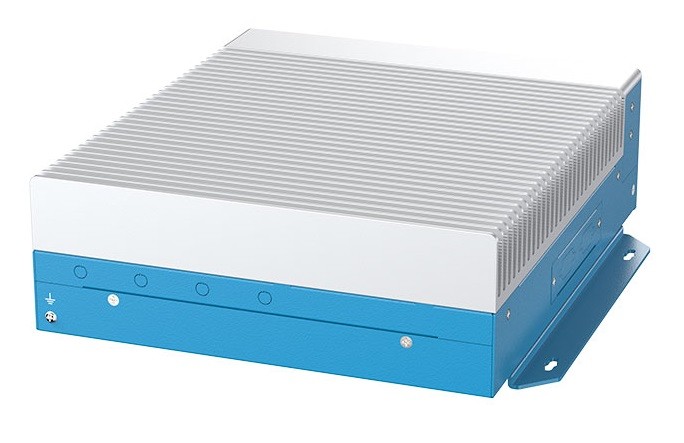

Kühlung | ||||
Umsetzung | Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb (SSD) | -10° bis 50°C | ||
Lagerung | -40° bis 80°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Embedded System | ||
Breite | 220 mm | |||
Tiefe | 256 mm | |||
Höhe | 76 mm | |||
Gewicht | 4300 g | |||
Bedienelemente | Power | 1 St | ||
Power (Terminal Anschluss) | 1 St | |||
Reset | 1 St | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
System Status | 3 St | |||
Antennenlöcher | 6 St | |||
Farbe | Blau / Silber | |||
Material | Aluminium | |||
Montageoption | Wandmontage | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Windows 11 | Wird unterstützt | |||
Linux | Distribution | Ubuntu 20.04 | ||
Unterstützte BS | Windows, Linux | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja |
