COM Express Compact
// COM Express Compact
// [Qualcomm Snapdragon X1E-00-1DE | Qualcomm Snapdragon X1E-78-100 | Qualcomm Snapdragon X1P-42-100 | Qualcomm Snapdragon X1P-66-100]
// LVDS
// 1 x G-LAN
// 12 x USB (internal)
// 2 x Seriell I/O
// Digital I/O (8-Bit)
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

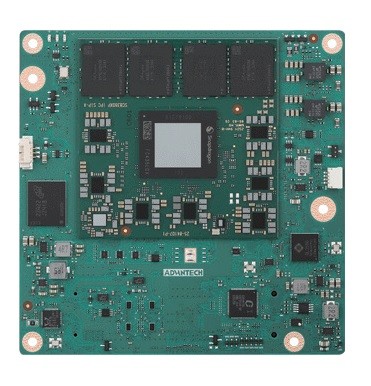

Basic Module: Advantech SOM-6820
| General information | ||||
| SKU / Item Number | SOM-6820 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Series | Qualcomm Snapdragon X Plus, Qualcomm Snapdragon X-Elite | ||
| Number | Qualcomm Snapdragon X1E-00-1DE, Qualcomm Snapdragon X1E-78-100, Qualcomm Snapdragon X1P-42-100, Qualcomm Snapdragon X1P-66-100 | |||
| CPU cores | 8 Pce, 10 Pce, 12 Pce | |||
| Max Turbo Frequency | 3,2 GHz, 3,4 GHz, 3,8 GHz | |||
| Cache | 30 MB, 42 MB | |||
| Thermal Design Power (TDP) | 45 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR5 | ||
| DIMM data transfer rate | 8400 MT/s | |||
| Maximum expansion | 64 GB | |||
| Storage | Universal Flash Storage (UFS) | Version | 3.1 | |
| BIOS | AMI UEFI BIOS | |||
| AI / AI | ||||
| Performance | TOPS (INT8) | 45 | ||
| Graphics | ||||
| Screens (Multi-display) | 4 displays | |||
| DisplayPort | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Version | 2.1 | |||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Bridge | Chrontel CH7513A-BF | |||
| eDP (Embedded DisplayPort) | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Extension | ||||
| PCIe x8 | Generation | 4 | ||
| x8 Signal (Interface) | 1 Pce | |||
| PCIe Interfaces | 1x PCIe x8 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Realtek RTL8153B (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Network | 1x G-LAN | |||
| Internal I/O | ||||
| USB | USB 2.0 | Interface | 8 Pce | |
| USB 3.2 | Generation | Gen. 2 | ||
| Interface | 4 Pce | |||
| Serial | RS-232 | Interface | 2 Pce | |
| Display | LVDS (Low Voltage Differential Signaling) | Dual channel | ||
| LVDS interface | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| Serial Peripheral Interface (SPI) | 1 Pce | |||
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| Image Capture Interfaces | Camera Input 1 | Quantity | 2 Pce | |
| Lanes | 4 Pce | |||
| Serial ATA | SATA R3.0 (Interface) | 4 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 65535 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Windows 11 IoT | is supported | |||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows Embedded | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Storage | 5 to 95%, non-condensing | |||
| Dimensions | Form factor | COM Express Compact | ||
| Width | 95 mm | |||
| Deep | 95 mm | |||
| Vibration | Vibration | 3G, 10 to 500 Hz | ||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Compatibility | PICMG COM Express R3.1, Type 6 | |||
| RoHS compliant | Yes | |||
