COM-HPC
// COM HPC Client Mini
// Qualcomm Dragonwing QCS9075
// 36 GB
// 2 x G-LAN
// 6 x USB
// 1 x USB (internal)
// 2 x Seriell I/O
// 1 x CAN Bus [CAN-FD]
// Digital I/O (8-Bit)
Sales only to business customers.
Delivery time: upon request

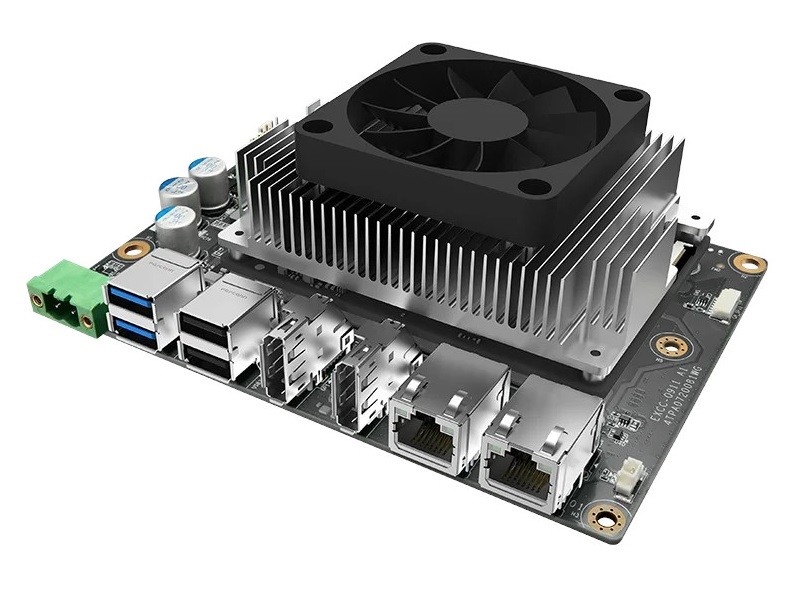

Basic Module: Innodisk EXEC-Q911
| General information | ||||
| SKU / Item Number | EXEC-Q911 | |||
| Product Basic Data | ||||
| Manufacturer | Innodisk | |||
| Product ID | EXEC-Q911-00A1-W1 | |||
| System | ||||
| Processor | Series | Qualcomm Dragonwing IQ9 Series | ||
| Number | Qualcomm Dragonwing QCS9075 | |||
| CPU cores | 8 Pce | |||
| Max Turbo Frequency | 2,36 GHz | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR5 | ||
| Internal memory | 36 GB | |||
| Storage | Universal Flash Storage (UFS) | Memory | 128 GB GB | |
| Version | 3.1 | |||
| Graphics | ||||
| Processor | Qualcomm Adreno 663 | |||
| Performance | TOPS (INT8) | 100 | ||
| Screens (Multi-display) | 3 displays | |||
| DisplayPort | Version | 1.2 | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×4 (Gen 4) | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | B | ||
| Interface | USB 2.0, USB 3.2 Gen 2 | |||
| Supported dimensions | 3052 | |||
| Slot 3 | Key ID | E | ||
| Interface | PCIe ×2 (Gen 4), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Cirrus WM8904 | |||
| External I/O | ||||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 2.0 | 2 Pce | ||
| USB 3.2 (Gen 2) | 3 Pce | |||
| USB On-The-Go (USB OTG) | 1 Pce | |||
| Display | DisplayPort | 2 Pce | ||
| Audio | Combo Jack | 1 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (Type-A socket) | 1 Pce | |
| Serial | RS-232 / 422 / 485 | Ports (2.54 mm pitch) | 2 Pce | |
| Display | eDP (Embedded DisplayPort) lanes | 1 Pce | ||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Serial Peripheral Interface (SPI) | 1 Pce | |||
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| Image Capture Interfaces | Camera Input 1 | Connector | 22 Pin FCP 0.5 mm | |
| Quantity | 2 Pce | |||
| Lanes | 4 Pce | |||
| CAN bus | Version 2.0B (with isolation) | 1 Pce | ||
| Protocol | CAN-FD | |||
| Audio | Verstärker | 1 Pce | ||
| Debug port | is supported | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 9 to 36V | |||
| Connector | 2-pin terminal connector | |||
| Power supply - Input | DC: 9~36V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Linux | Distribution | Ubuntu 24.04, Yocto 3.0 | ||
| Supported OS | Linux | |||
| Cooling | ||||
| Implementation | Active (fan cooling) | |||
| Active | Fan | Quantity | 1 Pce | |
| Mechanical / Environment | ||||
| Temperature | Operation | -40°C to 85°C | ||
| Storage | -40°C to 90°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Storage | 5 to 95%, non-condensing | |||
| Dimensions | Form factor | COM HPC Client Mini | ||
| Width | 146 mm | |||
| Deep | 102 mm | |||
| Height | 56,99 mm | |||
| Vibration | Vibration | 3G, 10 to 500 Hz | ||
| Reference Standard | IEC 68-2-64 | |||
| Shock | Measurement Data | 30G, 18 ms | ||
| Reference Standard | IEC 68-2-27 | |||
| Weight | 1704 g | |||
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | EN 61000-4-2 (Electrostatic Discharge) | |||
| RoHS compliant | Yes | |||
