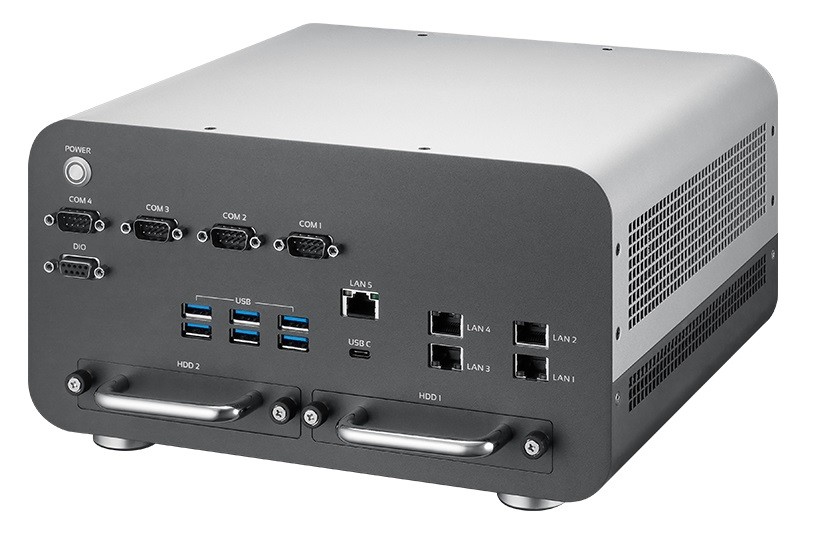

AI System
// AI System
// Intel Core i7-13700E
// 32 GB RAM
// 5 x Display
// 4 x Serial
// 7 x USB (Front page)
// 2 x USB (Back side)
// 5 x G-LAN (Front page)
// 1 x G-LAN (Back side)
// 2 x M.2 Slot
// 24V
Please configure your desired product.
Standard Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: Innodisk APEX-P100
| General information | ||||
| SKU / Item Number | APEX-P100 | |||
| Product Basic Data | ||||
| Manufacturer | Innodisk | |||
| System | ||||
| Processor | Series | Intel Raptor Lake | ||
| Number | Intel Core i7-13700E | |||
| CPU cores | 16 Pce | |||
| Threads | 24 Pce | |||
| Socket | LGA 1700 (H6) | |||
| Performance core base clock frequency | 1,9 GHz | |||
| Performance Core Max Turbo Frequency | 5,1 GHz | |||
| Efficient-core base clock frequency | 1,3 GHz | |||
| Efficient-core Max Turbo Frequency | 3,9 GHz | |||
| Cache | 30 MB | |||
| Thermal Design Power (TDP) | 65 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 5200 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 64 GB | |||
| Internal memory | 32 GB | |||
| Storage | Solid State Drive (NVMe SSD) | 512 GB | ||
| BIOS | AMI UEFI 256 Mbit SPI | |||
| Graphics | ||||
| Processor | Nvidia Quadro RTX 5000 Ada | |||
| Cores | CUDA | 9728 Pce | ||
| RT Cores | 76 Pce | |||
| Tensor | 304 Pce | |||
| Memory | RAM | 16 GB (GDDR6) | ||
| DisplayPort | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Version | 1.4 | |||
| Dual mode | Yes (DP++) | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 (Gen 4), SATA III | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | M | ||
| Interface | NVMe, PCIe ×4 (Gen 4), SATA III | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | M | |||
| Mobile PCI Express Module (MXM) | is supported | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 5 Pce | |||
| Network | 5x G-LAN | |||
| Internal I/O | ||||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | ||

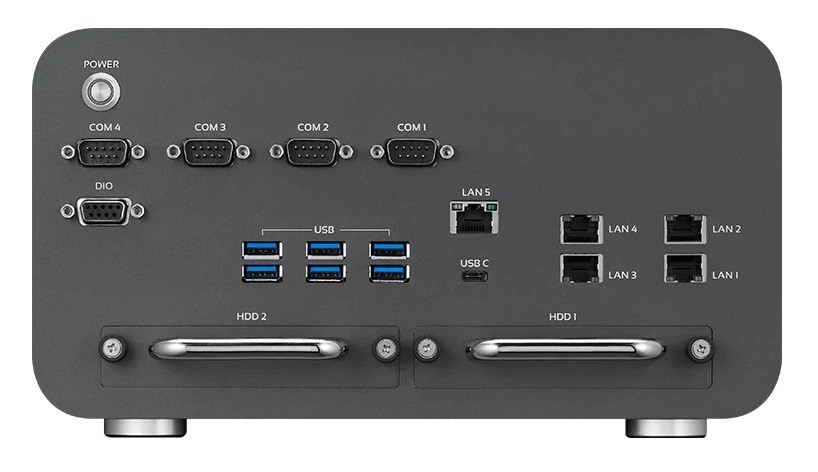

| Externe I/O (Front Panel) | ||||
| Ethernet | RJ-45 | 5 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 4 Pce | |
| Digital I/O | Quantity | 1 Pce | ||
| Bits | 8-bit | |||
| Connector | DB-9 | |||
| USB | USB 3.2 (Gen 2) | 6 Pce | ||
| USB v3.2 (Gen 2, Type C) | 1 Pce | |||

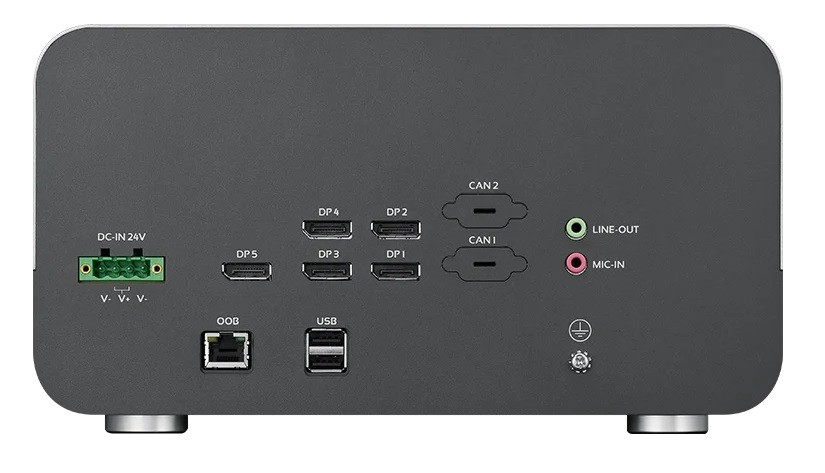

| Externe I/O (Rear Panel) | ||||
| Display | DP++ | 5 Pce | ||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 with OOB | 1 Pce | ||
| USB | USB 2.0 | 2 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | dTPM 2.0 (Hardware) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 24V | |||
| Connector | 4-pin terminal plug | |||
| Current | 19,8 A | |||
| Power supply - Input | DC: 24V | |||
| Inserts | ||||
| external | 2.5" installation slot | 2 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 50°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | AI System | ||
| Width | 280 mm | |||
| Deep | 270 mm | |||
| Height | 148,2 mm | |||
| Vibration | Vibration | 3G, 10 to 500 Hz | ||
| Reference Standard | IEC 68-2-64 | |||
| Shock | Reference Standard | IEC 68-2-27 | ||
| with SSD | 30G, half sine wave, 11 ms duration | |||
| Weight | 5700 g | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Power | 1 Pce | ||
| Mounting option | Wall Mount | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Linux | Distribution | Ubuntu 22.04 | ||
| Supported OS | Linux, Windows Embedded | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
