AI System
// AI System
// Intel Core i7-13800HE
// 32 GB RAM
// 1 x Display
// 1 x Serial
// 2 x USB (Front page)
// 4 x USB (Back side)
// 1 x G-LAN (Front page)
// 3 x G-LAN (Back side)
// 2 x M.2 Slot
// 19V
Please configure your desired product.
Standard Configuration
Sales only to business customers.
Delivery time: upon request

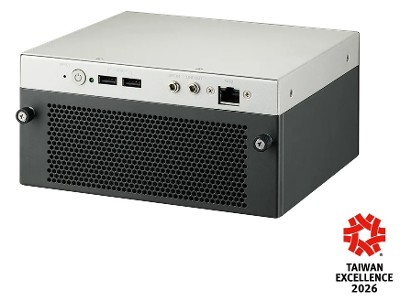

Basic Module: Innodisk APEX-P200
| General information | ||||
| SKU / Item Number | APEX-P200 | |||
| Product Basic Data | ||||
| Manufacturer | Innodisk | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Raptor Lake | |||
| Number | Intel Core i7-13800HE | |||
| CPU cores | 14 Pce | |||
| Threads | 20 Pce | |||
| Socket | BGA 1744 | |||
| Performance Core Max Turbo Frequency | 5 GHz | |||
| Efficient-core Max Turbo Frequency | 4 GHz | |||
| Cache | 24 MB | |||
| Thermal Design Power (TDP) | 45 W | |||
| Maximum Turbo Power Consumption | 115 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 5200 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 64 GB | |||
| Internal memory | 32 GB | |||
| Storage | Solid State Drive (NVMe SSD) | 512 GB | ||
| BIOS | AMI UEFI 256 Mbit SPI | |||
| Graphics | ||||
| Processor | Nvidia RTX 2000 Ada | |||
| Cores | CUDA | 3072 Pce | ||
| RT Cores | 24 Pce | |||
| Tensor | 96 Pce | |||
| Memory | RAM | 8 GB (GDDR6) | ||
| HDMI | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Version | 2.1 | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 (Gen 4) | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | E | ||
| Interface | PCIe ×1 (Gen 3), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | E, M | |||
| Mobile PCI Express Module (MXM) | is supported | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 3 Pce | |||
| Network | 3x G-LAN | |||
| Internal I/O | ||||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||

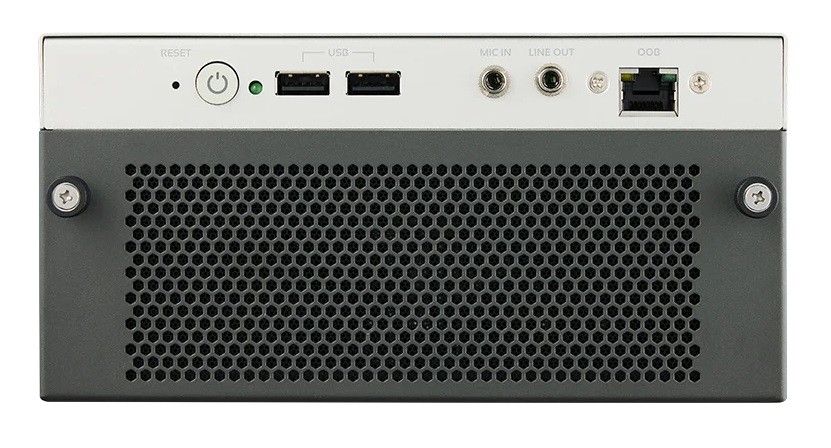

| Externe I/O (Front Panel) | ||||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 with OOB | 1 Pce | ||
| USB | USB 2.0 | 2 Pce | ||

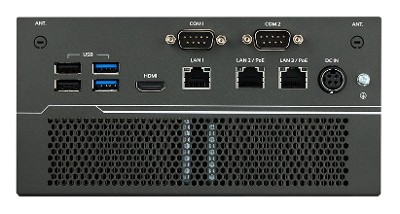

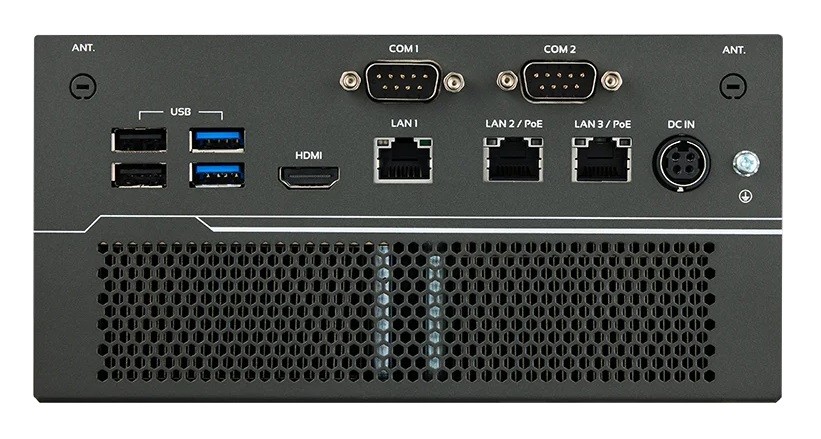

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| Ethernet | RJ-45 | 1 Pce | ||
| RJ-45 with PoE | 2 Pce | |||
| Serial | RS-232 / 422 / 485 | DB-9 | 1 Pce | |
| DB-9 mit Power (Pin 9 +5 V/+12 V) | 1 Pce | |||
| USB | USB 2.0 | 2 Pce | ||
| USB 3.2 (Gen 2) | 2 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | dTPM 2.0 (Hardware) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 19V | |||
| Connector | 4-pin connector (Kycon, Singatron, or similar) | |||
| Current | 10,5 A | |||
| PoE (Power over Ethernet) | Connectors | 2 Pce | ||
| Protocol | IEEE 802.3at / 30W | |||
| Power supply - Input | DC: 19V | |||
| Inserts | ||||
| Internal | 2.5" installation slot | 1 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | -20° to 60°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 90%, non-condensing | ||
| Dimensions | Form factor | AI System | ||
| Width | 180 mm | |||
| Deep | 158,6 mm | |||
| Height | 90 mm | |||
| Vibration | Vibration | 3G, 10 to 500 Hz | ||
| Reference Standard | IEC 68-2-64 | |||
| Shock | Measurement Data | 30G, 18 ms | ||
| Reference Standard | IEC 68-2-27 | |||
| Weight | 3000 g | |||
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Antenna holes | 2 Pce | |||
| Color | Black / silver | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Linux | Distribution | Ubuntu 22.04 | ||
| Supported OS | Linux, Windows Embedded | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Additional certificates / compliance approvals | UKCA | |||
| RoHS compliant | Yes | |||
We are happy to advise you personally.
