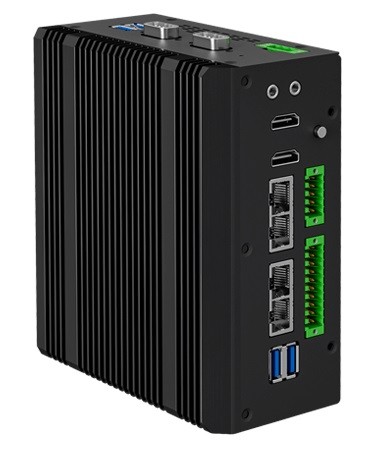

Edge AI System
// Edge AI System
// Intel Core i5-1335U
// 3,3 GHz
// Passive cooled
// 8 GB RAM
// 2 x Display
// 2 x Serial
// 2 x USB (Front page)
// 2 x USB (sideways)
// 4 x G-LAN (Front page)
// 3 x M.2 Slot
// 9 to 36V
Sales only to business customers.
Delivery time: upon request
Basic Module: Winmate IRDRW500
| General information | ||||
| SKU / Item Number | IRDRW500 | |||
| Product Basic Data | ||||
| Manufacturer | Winmate | |||
| System | ||||
| Processor | Vertical Segment | Mobile | ||
| Series | Intel Raptor Lake | |||
| Number | Intel Core i5-1335U | |||
| CPU cores | 10 Pce | |||
| Threads | 12 Pce | |||
| Socket | BGA 1744 | |||
| Base frequency | 3,3 GHz | |||
| Max Turbo Frequency | 4,4 GHz | |||
| Performance Core Max Turbo Frequency | 4,4 GHz | |||
| Efficient-core Max Turbo Frequency | 3,4 GHz | |||
| Cache | 12 MB | |||
| Basic power consumption of the processor | 15 W | |||
| Maximum Turbo Power Consumption | 55 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| Frequency | 4800 MHz | |||
| Slots | 1 Pce | |||
| Maximum expansion | 32 GB | |||
| Internal memory | 8 GB | |||
| Storage | Solid State Drive (NVMe SSD) | 256 GB | ||
| Graphics | ||||
| Processor | Intel Iris Xe Graphics | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | E | ||
| Interface | OOB (Out Of Box), Wi-Fi | |||
| Supported dimensions | 2230 | |||
| Slot 3 | Key ID | B | ||
| Interface | 4G/LTE, 5G / Storage Module | |||
| Supported dimensions | 3042, 3052 | |||
| M.2 Key IDs | B, E, M | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Quantity | 4 Pce | |
| Network | 4x G-LAN | |||
| Internal I/O | ||||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Externe I/O (Front Panel) | ||||
| Display | HDMI | 2 Pce | ||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 4 Pce | ||
| Serial | RS-232 / 422 / 485 | 10-pin terminal connector | 2 Pce | |
| Digital I/O | Quantity | 1 Pce | ||
| Bits | 16-bit | |||
| Connector | 20-pin terminal connector | |||
| USB | USB 3.2 (Gen 2) | 2 Pce | ||

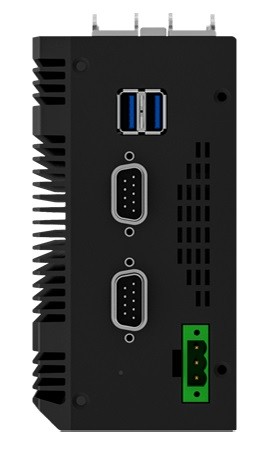

| External I/O (sidewise) | ||||
| Serial | RS-232 / 422 / 485 | DB-9 | 2 Pce | |
| USB | USB 2.0 | 1 Pce | ||
| USB 3.2 (Gen 1) | 1 Pce | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 9 to 36V | |||
| Connector | 3-pin terminal connector | |||
| Power supply - Input | DC: 9~36V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Inserts | ||||
| Internal | 2.5" installation slot | 1 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | -20° to 60°C | ||
| Storage | -40°C to 70°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Dimensions | Form factor | Edge AI System | ||
| Width | 130 mm | |||
| Deep | 68 mm | |||
| Height | 150 mm | |||
| Vibration | Reference Standard | MIL-STD-810G Method 514.6 Procedure I | ||
| Weight | 1500 g | |||
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Status indicators | Power | 1 Pce | ||
| Color | Black | |||
| Material | Aluminum, Steel | |||

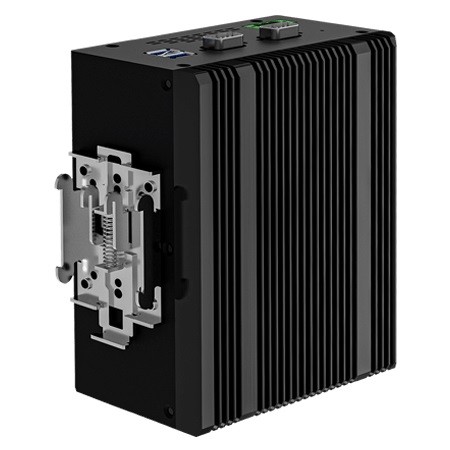

| Mounting option | DIN Rail, Wall Mount | |||
| OS / Software | ||||
| Windows | Windows 11 | Supported | ||
| Windows Embedded | Windows 11 IoT | is supported | ||
| Linux | Distribution | Ubuntu 22.04 | ||
| Supported OS | Windows, Windows Embedded, Linux | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
