Embedded System
// Embedded System
// Intel N150
// 2 x Display
// 1 x Serial
// 3 x USB (Front page)
// 2 x USB (Back side)
// 2 x G-LAN (Back side)
// 2 x M.2 Slot
// 12 to 19 V
Sales only to business customers.
Delivery time: upon request
Basic Module: GIGAIPC QB-N150A
| General information | ||||
| SKU / Item Number | QB-N150A | |||
| Product Basic Data | ||||
| Manufacturer | GIGAIPC | |||
| Product ID | 6BQBN150AMR-SI | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Twin Lake | |||
| Number | Intel N150 | |||
| CPU cores | 4 Pce | |||
| Threads | 4 Pce | |||
| Socket | BGA 1264 | |||
| Max Turbo Frequency | 3,6 GHz | |||
| Cache | 6 MB | |||
| Thermal Design Power (TDP) | 6 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 4800 MT/s | |||
| Slots | 1 Pce | |||
| Maximum expansion | 16 GB | |||
| Graphics | ||||
| Processor | Intel Graphics | |||
| Screens (Multi-display) | 3 displays | |||
| HDMI | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Version | 2.0 | |||
| DisplayPort | Version | 1.4 | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×1 (Gen 3), SATA III | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | E | ||
| Interface | WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | E, M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC269 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Realtek RTL8111H (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||

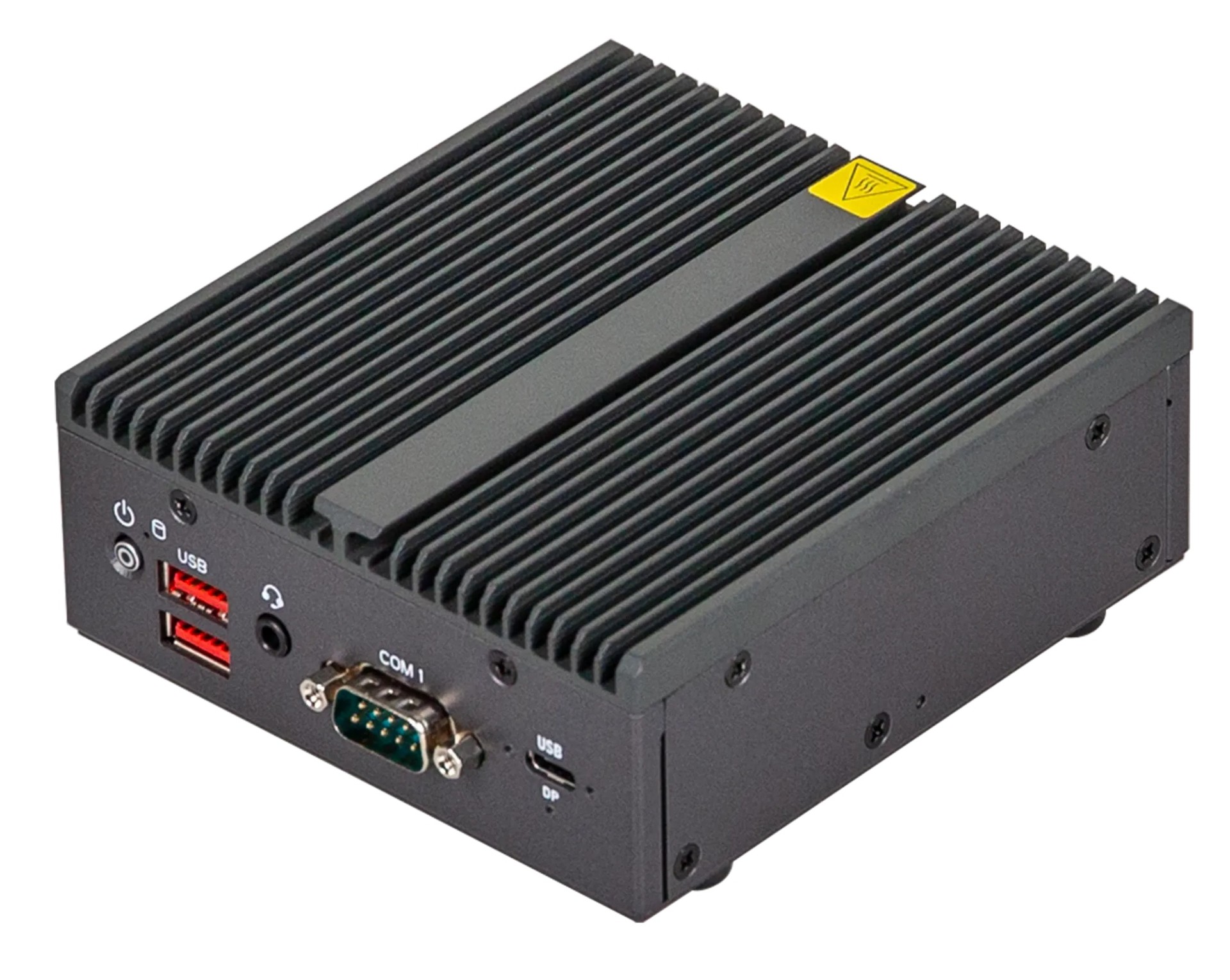

| Externe I/O (Front Panel) | ||||
| Display | DP USB-C | 1 Pce | ||
| Audio | Speaker Out | 1 Pce | ||
| Serial | RS-232 | DB-9 | 1 Pce | |
| USB | USB 3.2 (Gen 2) | 2 Pce | ||
| USB v3.2 (Gen 2, Type C) | 1 Pce | |||

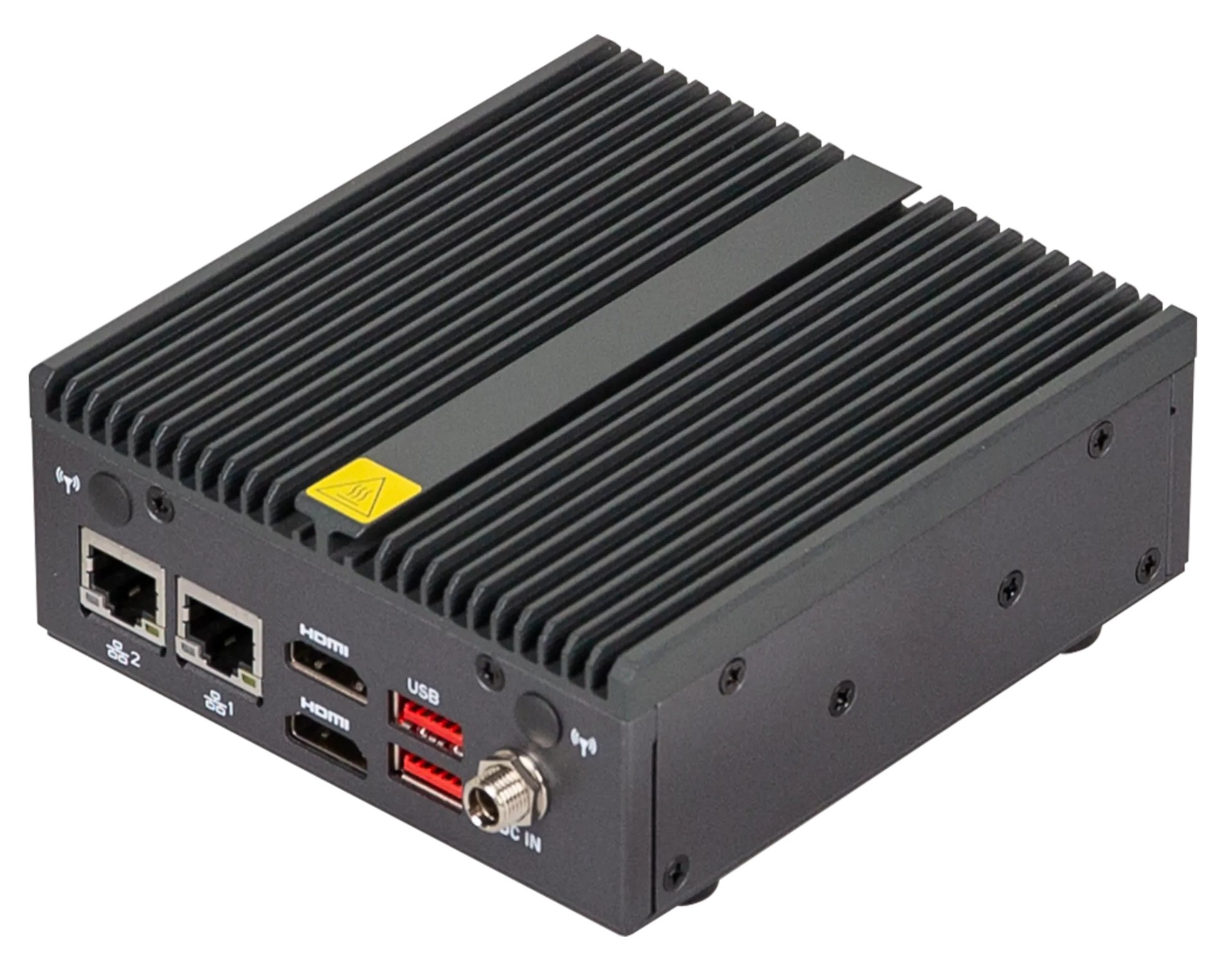

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 2 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.2 (Gen 2) | 2 Pce | ||
| Safety | ||||
| Trusted Platform Module (TPM) | Nuvoton NPCT760AABYX | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 19 V | |||
| Connector | Male connector (screw-in) | |||
| Power supply - Input | DC: 12 to 19V | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 50°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 0 to 90%, non-condensing | ||
| Storage | 5 to 95%, non-condensing | |||
| Dimensions | Form factor | Embedded System | ||
| Width | 118 mm | |||
| Deep | 109,4 mm | |||
| Height | 44,4 mm | |||
| Vibration | Vibration | 5G, 5 to 500 Hz | ||
| Reference Standard | IEC 68-2-64 | |||
| with SSD | 5G | |||
| Shock | Measurement Data | 50G, half sine wave, 11 ms duration | ||
| Reference Standard | IEC 68-2-27 | |||
| with SSD | 50G | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Power | 1 Pce | ||
| Antenna holes | 2 Pce | |||
| Color | Black | |||
| Mounting option | VESA | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
