ATX Mainboards
// ATX Industrial Mainboards
// LGA 1155 (H2)
// Intel B75
// 240-pin DDR3 DIMM
// LVDS
// 2 x G-LAN (Back side)
// 6 x USB (Back side)
// 5 x USB (internal)
// 5 x Seriell I/O
// Digital I/O (8-Bit)
// 4 x PCI
// 1 x PCIe x1
// 1 x PCIe x4
// 1 x PCIe x16
// 2 x Mini-PCIe
// Power Supply ATX
Sales only to business customers.
Delivery time: upon request

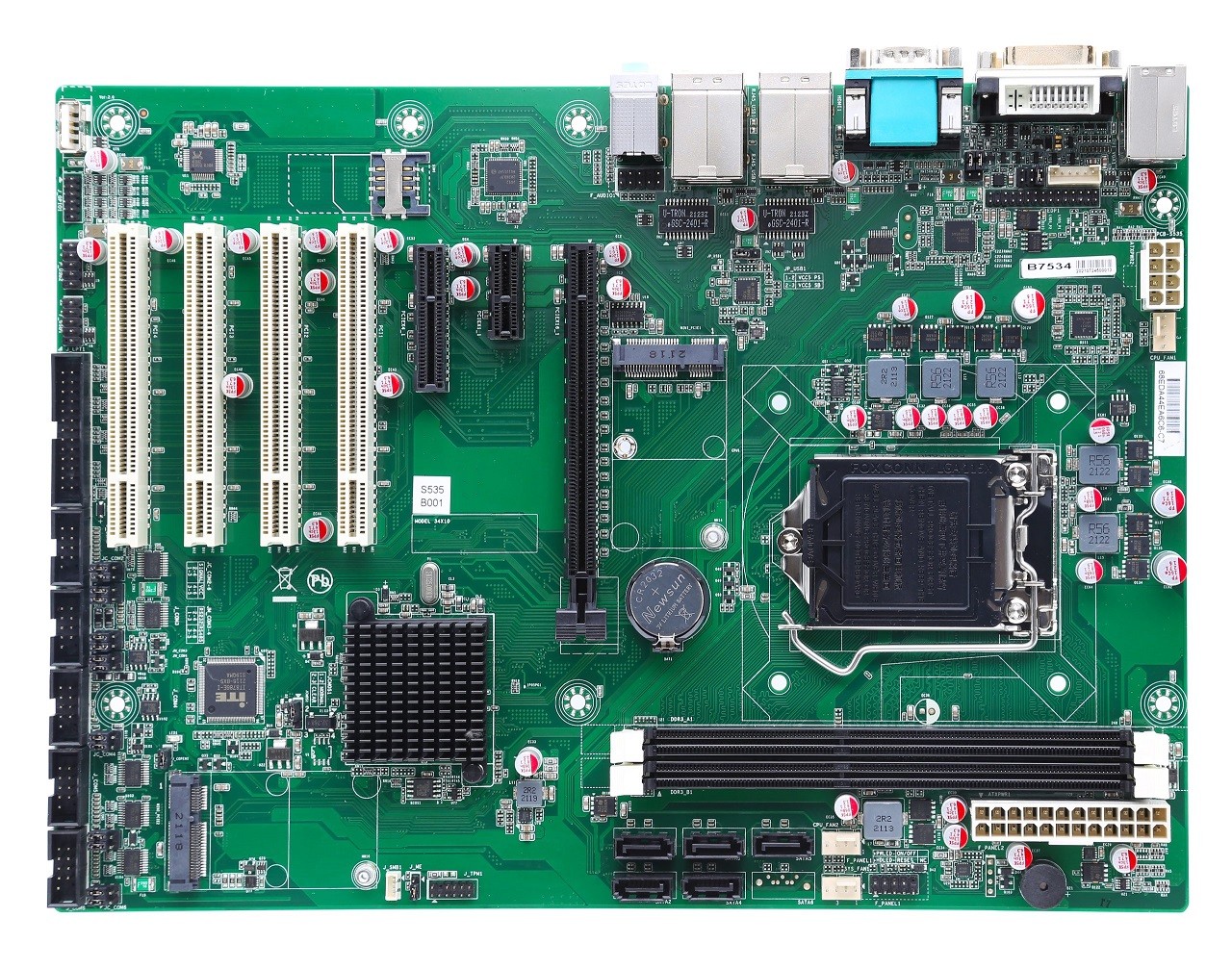

Basic Module: Darveen DMB-AB75
| General information | ||||
| SKU / Item Number | DMB-AB75 | |||
| Product Basic Data | ||||
| Manufacturer | Darveen | |||
| System | ||||
| Processor | Series | Intel Ivy Bridge | ||
| Socket | LGA 1155 (H2) | |||
| Thermal Design Power (TDP) | 65 W | |||
| Chipset | Intel B75 | |||
| Memory | Structure | 240-pin DDR3 DIMM | ||
| Memory Type | DDR3 | |||
| DIMM Type | Unbuffered DIMM | |||
| Frequency | 1333 / 1600 MHz | |||
| Slots | 2 Pce | |||
| Maximum expansion | 16 GB | |||
| BIOS | AMI UEFI BIOS | |||
| Graphics | ||||
| Screens (Multi-display) | 2 displays | |||
| VGA | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| DVI | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| HDMI | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| eDP (Embedded DisplayPort) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Extension | ||||
| PCI | Quantity | 4 Pce | ||
| PCI Interfaces | 4x PCI slots | |||
| PCIe x1 | Generation | 2 | ||
| x1 Signal | 1 Pce | |||
| PCIe x4 | Generation | 2 | ||
| x4 signal | 1 Pce | |||
| PCIe x16 | x16 signal | Generation | 3 | |
| Quantity | 1 Pce | |||
| Mini-PCIe | Full installation depth | Quantity | 2 Pce | |
| mSATA support | Yes | |||
| PCIe Interfaces | 1x PCIe x1, 1x PCIe x4, 1x PCIe x16, 2x Mini-PCIe slots | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Micro SIM | |||
| Storage | mSATA | |||

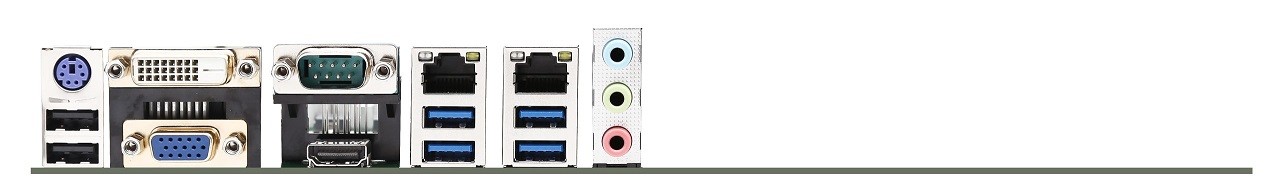

| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| HDMI | 1 Pce | |||
| DVI | DVI-D signal | 1 Pce | ||
| Audio | Line-in | 1 Pce | ||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 | DB-9 | 1 Pce | |
| USB | USB 2.0 | 2 Pce | ||
| USB 3.0 | 4 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 4 Pce | |
| Ports (Type-A socket) | 1 Pce | |||
| PS/2 | pin header | 1 Pce | ||
| Serial | RS-232 | Ports (2.54 mm pitch) | 3 Pce | |
| RS-422 / 485 | Ports (2.54 mm pitch) | 2 Pce | ||
| Parallel | Ports (2.54 mm pitch) | 1 Pce | ||
| Display | LVDS connectors | 1 Pce | ||
| eDP (Embedded DisplayPort) lanes | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| Serial ATA | S-ATA R2.0 (3 Gbps, 300 MB/s) | 5 Pce | ||
| Chassis Intrusion Detection | Yes | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | TPM header | |||
| Power Supply | ||||
| Typ (Input) | ATX | Connector | 8-pin ATX (12V DC), 24-pin ATX | |
| Power supply - Input | ATX: 8-pin ATX (12V DC), 24-pin ATX | |||
| OS / Software | ||||
| Windows | Windows 7 (32/64-bit) | is supported | ||
| Linux | Distribution | Linux | ||
| Supported OS | Windows, Linux | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -20° down to 70°C | |||
| Dimensions | Form factor | ATX | ||
| Width | 305 mm | |||
| Deep | 220 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
