ATX Mainboards
// ATX Industrial Mainboards
// LGA 1200 (H5)
// Intel H470
// 288-pin DDR4 DIMM
// 2 x G-LAN (Back side)
// 6 x USB (Back side)
// 7 x USB (internal)
// 5 x Seriell I/O
// Digital I/O (8-Bit)
// 4 x PCI
// 1 x PCIe x4
// 1 x PCIe x16
// Power Supply ATX
Sales only to business customers.
Delivery time: upon request

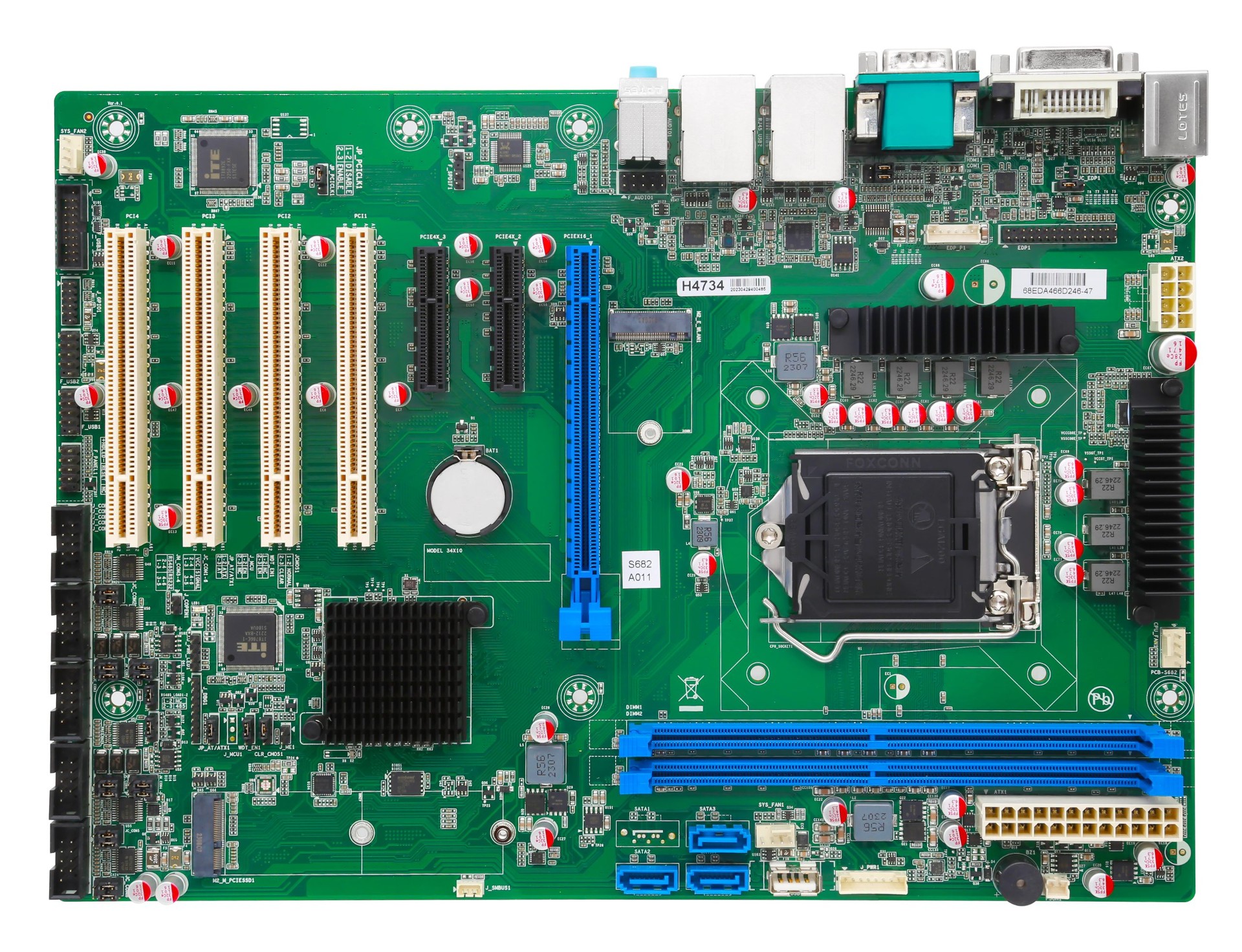

Basic Module: Darveen DMB-AH470
| General information | ||||
| SKU / Item Number | DMB-AH470 | |||
| Product Basic Data | ||||
| Manufacturer | Darveen | |||
| System | ||||
| Processor | Series | Intel Comet Lake | ||
| Socket | LGA 1200 (H5) | |||
| Thermal Design Power (TDP) | 65 W | |||
| Chipset | Intel H470 | |||
| Memory | Structure | 288-pin DDR4 DIMM | ||
| Memory Type | DDR4 | |||
| DIMM Type | Unbuffered DIMM | |||
| Frequency | 2933 MHz | |||
| Slots | 2 Pce | |||
| Maximum expansion | 64 GB | |||
| BIOS | AMI UEFI BIOS | |||
| Graphics | ||||
| Screens (Multi-display) | 2 displays | |||
| VGA | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| DVI | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| HDMI | Maximum resolution | 4096 x 2160 at 30 Hz | ||
| Version | 1.4b | |||
| eDP (Embedded DisplayPort) | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Extension | ||||
| PCI | Quantity | 4 Pce | ||
| PCI Interfaces | 4x PCI slots | |||
| PCIe x4 | x1 Signal | 1 Pce | ||
| x2 Signal | 1 Pce | |||
| PCIe x16 | x16 signal | Quantity | 1 Pce | |
| PCIe Interfaces | 2x PCIe x4, 1x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×2, SATA III | |||
| Supported dimensions | 2242, 2280 | |||
| Slot 2 | Key ID | E | ||
| Interface | PCIe ×1 (Gen 3), USB 2.0, WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | E, M | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I219V PCIe (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I225V PCIe (10/100/1000/2500 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||
| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| HDMI | 1 Pce | |||
| DVI | DVI-D signal | 1 Pce | ||
| Audio | Line-in | 1 Pce | ||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| PS/2 | mini-DIN-6 | 1 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 1 Pce | |
| USB | USB 3.0 | 6 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 4 Pce | |
| Ports (Type-A socket) | 1 Pce | |||
| USB 3.0 | Ports (2.54 mm pitch) | 2 Pce | ||
| Serial | RS-232 | Ports (2.54 mm pitch) | 3 Pce | |
| RS-232 / 422 / 485 | Ports (2.54 mm pitch) | 2 Pce | ||
| Display | eDP (Embedded DisplayPort) lanes | 1 Pce | ||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| Audio | Connector | 2.00 mm pitch | ||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| S/PDIF | available | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 3 Pce | ||
| Chassis Intrusion Detection | Yes | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Available Upon Request | |||
| Power Supply | ||||
| Typ (Input) | ATX | Connector | 8-pin ATX (12V DC), 24-pin ATX | |
| Power supply - Input | ATX: 8-pin ATX (12V DC), 24-pin ATX | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Linux | Distribution | Linux | ||
| Supported OS | Windows, Linux | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -20° down to 70°C | |||
| Dimensions | Form factor | ATX | ||
| Width | 305 mm | |||
| Deep | 220 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
