ATX Mainboards
// ATX Industrial Mainboards
// LGA 1151 (H4)
// Intel Q170
// 288-pin DDR4 DIMM
// 1 x HDMI
// 1 x DVI-D
// 1 x Displayport
// 2 x G-LAN
// 6 x USB
// 8 x USB (internal)
// 6 x Seriell I/O
// Digital I/O (8-Bit)
// 3 x PCI
// 1 x PCIe x1
// 1 x PCIe x4
// 1 x PCIe x8
// 1 x PCIe x16
// 1 x Mini-PCIe
// Power Supply ATX
Sales only to business customers.
Delivery time: upon request

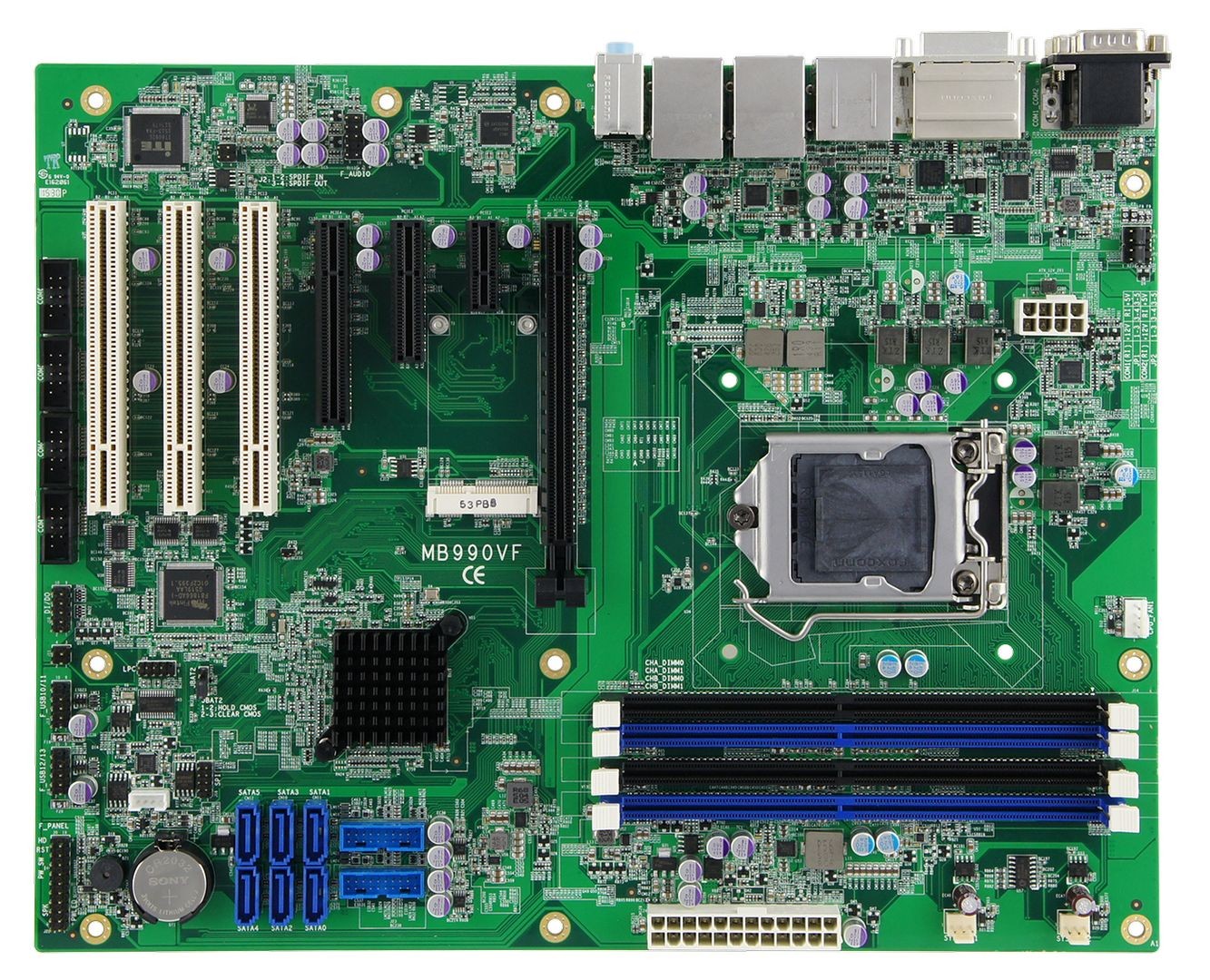

Basic Module: IBASE MB990
| General information | ||||
| SKU / Item Number | MB990 | |||
| Product Basic Data | ||||
| Manufacturer | IBASE | |||
| Product ID | MB990VFS-A | |||
| System | ||||
| Processor | Series | Intel Skylake / Kaby Lake | ||
| Socket | LGA 1151 (H4) | |||
| Chipset | Intel Q170 | |||
| Memory | Structure | 288-pin DDR4 DIMM | ||
| Memory Type | DDR4 | |||
| DIMM Type | Unbuffered DIMM | |||
| Frequency | 1866 / 2133 MHz | |||
| Slots | 4 Pce | |||
| Maximum expansion | 64 GB | |||
| BIOS | AMI BIOS | |||
| I/O controller | Controller 1 | I/O controller | Fintek F81866AD-I | |
| Graphics | ||||
| Processor | Intel HD Graphics | |||
| Screens (Multi-display) | 3 displays | |||
| DVI | Maximum resolution | 4096 x 2304 at 30 Hz | ||
| HDMI | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Version | 2.0 | |||
| DisplayPort | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Version | 1.3 | |||
| Dual mode | Yes (DP++) | |||
| Extension | ||||
| PCI | Version | 3.0 | ||
| Quantity | 3 Pce | |||
| PCI Interfaces | 3x PCI slots | |||
| PCIe x1 | Generation | 3 | ||
| x1 Signal | 1 Pce | |||
| PCIe x4 | Generation | 3 | ||
| x4 signal | 1 Pce | |||
| PCIe x8 | Generation | 3 | ||
| x4 signal | 1 Pce | |||
| PCIe x16 | x16 signal | Generation | 3 | |
| Quantity | 1 Pce | |||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| mSATA support | Yes | |||
| PCIe Interfaces | 1x PCIe x1, 1x PCIe x4, 1x PCIe x8, 1x PCIe x16, 1x Mini-PCIe | |||
| Storage | mSATA | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I219LM PCIe with AMT with Core i5/i7 (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I210AT PCIe (10/100/1000 Mbps) | ||
| Quantity | 1 Pce | |||
| Active Management Technology (AMT) version | 11.0 | |||
| Network | 2x G-LAN | |||

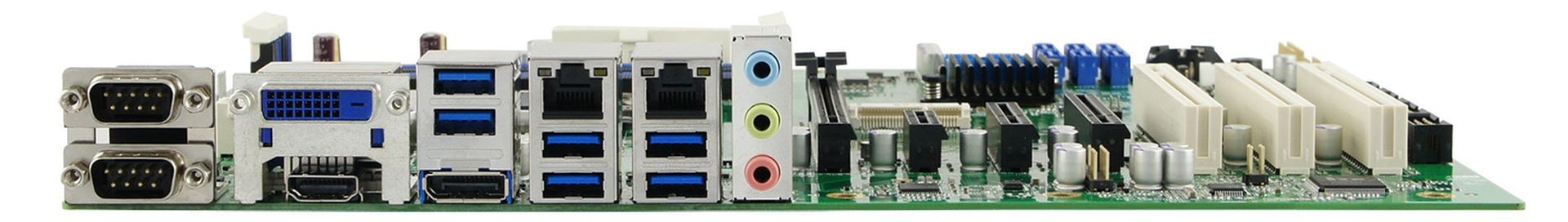

| External I/O | ||||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.0 | 6 Pce | ||
| Serial | RS-232 | DB-9 | 1 Pce | |
| RS-232 / 422 / 485 | DB-9 | 1 Pce | ||
| Display | HDMI | 1 Pce | ||
| DVI | DVI-D signal | 1 Pce | ||
| DisplayPort | 1 Pce | |||
| Audio | Line-in | 1 Pce | ||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 4 Pce | |
| USB 3.0 | Ports (2.00 mm pitch) | 4 Pce | ||
| Serial | RS-232 | Ports (2.54 mm pitch) | 4 Pce | |
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Audio | Connector | 2.00 mm pitch | ||
| Line-in | 1 Pce | |||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 6 Pce | ||
| RAID support | RAID 0/1/5 | is supported | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v1.2 | |||
| Power Supply | ||||
| Typ (Input) | ATX | Connector | 8-pin ATX (12V DC), 24-pin ATX | |
| Power supply - Input | ATX: 8-pin ATX (12V DC), 24-pin ATX | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Windows | Windows 7 (32/64-bit) | is supported | ||
| Windows 8 (32-bit) | is supported | |||
| Windows 8 (64-bit) | is supported | |||
| Windows 8.1 (32-bit) | is supported | |||
| Windows 8.1 (64-bit) | is supported | |||
| Windows 10 (64-bit) | is supported | |||
| Supported OS | Windows | |||
| Cooling | ||||
| Implementation | Active (fan cooling) | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -20° to 80°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Dimensions | Form factor | ATX | ||
| Width | 244 mm | |||
| Deep | 305 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | LVD (Low Voltage Directive) | |||
| RoHS compliant | Yes | |||
| Lifecycle | ||||
| Expected until | Q3, 2030 | |||
| Manufacturer's warranty | ||||
| Manufacturer's warranty | 2 years | |||
