ATX Mainboards
// ATX Industrial Mainboards
// LGA 1851
// Intel Q870
// 288-pin DDR5 DIMM
// 2 x G-LAN (Back side)
// 6 x USB (Back side)
// 6 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (12-Bit)
// 1 x PCIe x1
// 4 x PCIe x4
// 2 x PCIe x16
// Power Supply ATX
Sales only to business customers.
Delivery time: upon request

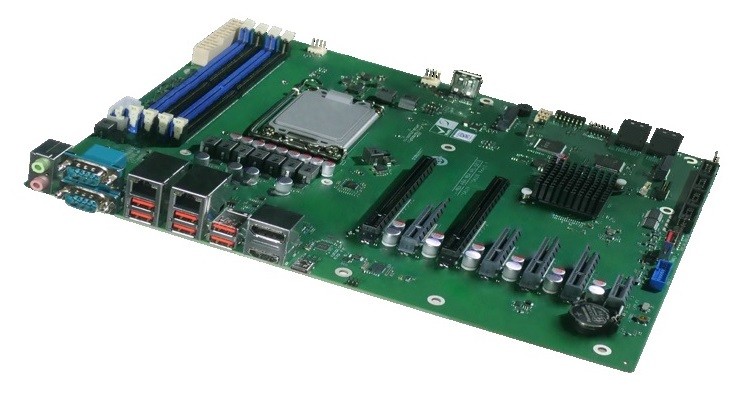

Basic Module: IEI IMBA-ARL-Q870
| General information | ||||
| SKU / Item Number | IMBA-ARL-Q870 | |||
| Product Basic Data | ||||
| Manufacturer | IEI | |||
| System | ||||
| Processor | Series | Intel Arrow Lake | ||
| Socket | LGA 1851 | |||
| Thermal Design Power (TDP) | 65 W | |||
| Chipset | Intel Q870 | |||
| Memory | Structure | 288-pin DDR5 DIMM | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered DIMM | |||
| DIMM data transfer rate | 5600 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 192 GB | |||
| BIOS | AMI UEFI BIOS | |||
| I/O controller | Controller 1 | I/O controller | Fintek F81966AB-I | |
| Extension | ||||
| PCIe x1 | Generation | 4 | ||
| x1 Signal | 1 Pce | |||
| PCIe x4 | Generation | 4 | ||
| x4 signal | 4 Pce | |||
| PCIe x16 | x8 signal | Generation | 5 | |
| Quantity | 2 Pce | |||
| PCIe Interfaces | 1x PCIe x1, 4x PCIe x4, 2x PCIe x16 slots | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×2 (Gen 4) | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | M | ||
| Interface | NVMe, PCIe ×2 (Gen 4) | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||
| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DisplayPort | 1 Pce | |||
| DP USB-C | 1 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 2 Pce | |
| USB | USB 3.2 (Gen 2) | 6 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 4 Pce | |
| USB 3.2 | Ports (Type-A socket) | 1 Pce | ||
| Key-A Header (20-pin) | 1 Pce | |||
| Generation | Gen. 1 | |||
| Serial | RS-232 | Ports (2.54 mm pitch) | 4 Pce | |
| Digital I/O | Bits | 12-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 4 Pce | ||
| RAID support | RAID 0/1/5/10 | is supported | ||
| RAID support | RAID 0/1/5/10 | |||
| Chassis Intrusion Detection | Yes | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Intel PTT (like TPM 2.0) | |||
| Power Supply | ||||
| Typ (Input) | ATX | Connector | 8-pin ATX (12V DC), 24-pin ATX | |
| Power supply - Input | ATX: 8-pin ATX (12V DC), 24-pin ATX | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -10° to 60°C | ||
| Storage | -30°C to 70°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | ATX | ||
| Width | 244 mm | |||
| Deep | 305 mm | |||
| Weight | 700 g | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
