Micro-ATX Mainboards
// Micro-ATX Industrial Mainboards
// LGA 1700 (H6)
// Intel H610
// 288-pin DDR4 DIMM
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 4 x USB (internal)
// 3 x Seriell I/O
// Digital I/O (8-Bit)
// 1 x PCIe x1
// 1 x PCIe x4
// 1 x PCIe x16
// Power Supply ATX
Sales only to business customers.
Delivery time: upon request

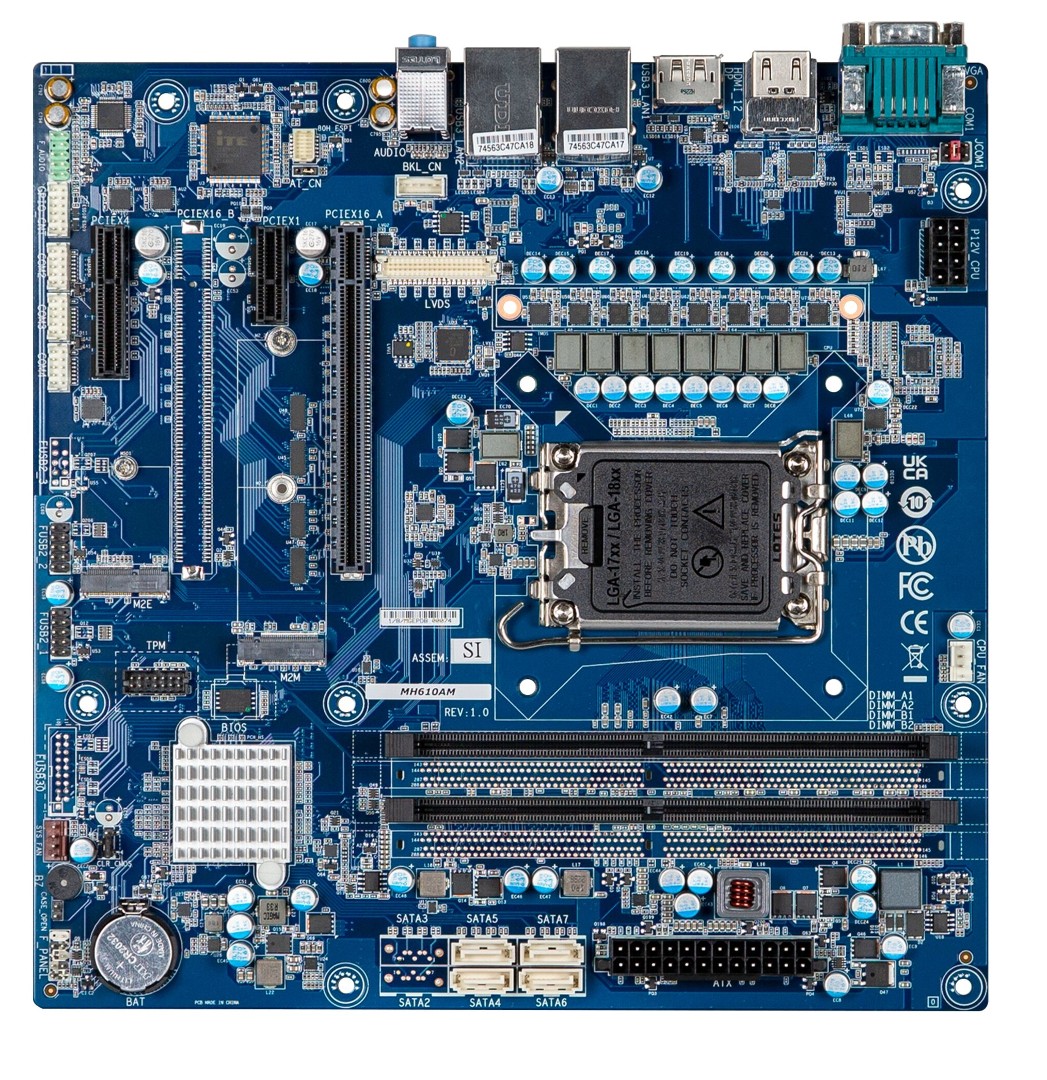

Basic Module: GIGAIPC uATX-H610A
| General information | ||||
| SKU / Item Number | uATX-H610A | |||
| Product Basic Data | ||||
| Manufacturer | GIGAIPC | |||
| System | ||||
| Processor | Series | Intel Alder Lake / Raptor Lake | ||
| Socket | LGA 1700 (H6) | |||
| Thermal Design Power (TDP) | 125 W | |||
| Lithography | 7 nm | |||
| Chipset | Intel H610 | |||
| Memory | Structure | 288-pin DDR4 DIMM | ||
| Memory Type | DDR4 | |||
| Frequency | 3200 MHz | |||
| Slots | 2 Pce | |||
| Maximum expansion | 64 GB | |||
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| Screens (Multi-display) | 3 displays | |||
| VGA | Maximum resolution | 1920 x 1080 at 60 Hz | ||
| HDMI | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Version | 2.0 | |||
| DisplayPort | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Extension | ||||
| PCIe x1 | Generation | 3 | ||
| x1 Signal | 1 Pce | |||
| PCIe x4 | Generation | 3 | ||
| x4 signal | 1 Pce | |||
| PCIe x16 | x16 signal | Generation | 4 | |
| Quantity | 1 Pce | |||
| PCIe Interfaces | 1x PCIe x1, 1x PCIe x4, 1x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×1 (Gen 3), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | M | ||
| Interface | PCIe ×4, SATA III | |||
| Supported dimensions | 2242, 2280 | |||
| M.2 Key IDs | E, M | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I219V PCIe (10/100/1000 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||
| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| HDMI | 2 Pce | |||
| DisplayPort | 1 Pce | |||
| Audio | Line-in | 1 Pce | ||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 1 Pce | |
| USB | USB 3.2 (Gen 1) | 2 Pce | ||
| USB 3.2 (Gen 2) | 2 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 4 Pce | |
| Serial | RS-232 | Ports (2.00 mm pitch) | 3 Pce | |
| Display | LVDS (Low Voltage Differential Signaling) | Dual channel | ||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| Audio | Connector | 2.00 mm pitch | ||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 4 Pce | ||
| Safety | ||||
| Trusted Platform Module (TPM) | TPM header | |||
| Power Supply | ||||
| Typ (Input) | ATX | Connector | 8-pin ATX (12V DC), 24-pin ATX | |
| Power supply - Input | ATX: 8-pin ATX (12V DC), 24-pin ATX | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Windows 11 | Supported | |||
| Supported OS | Windows | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 0 to 90%, non-condensing | ||
| Storage | 0 to 95%, non-condensing | |||
| Dimensions | Form factor | Micro-ATX | ||
| Width | 244 mm | |||
| Deep | 244 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| RoHS compliant | Yes | |||
