Thin Mini-ITX Mainboards
// Thin Mini-ITX Industrial Mainboards
// LGA 1700 (H6)
// Intel H610
// 262-pin SO-DIMM DDR5
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 5 x USB (internal)
// 1 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 12V / 19V to ~24V
// 19 to 24V
Sales only to business customers.
Delivery time: upon request

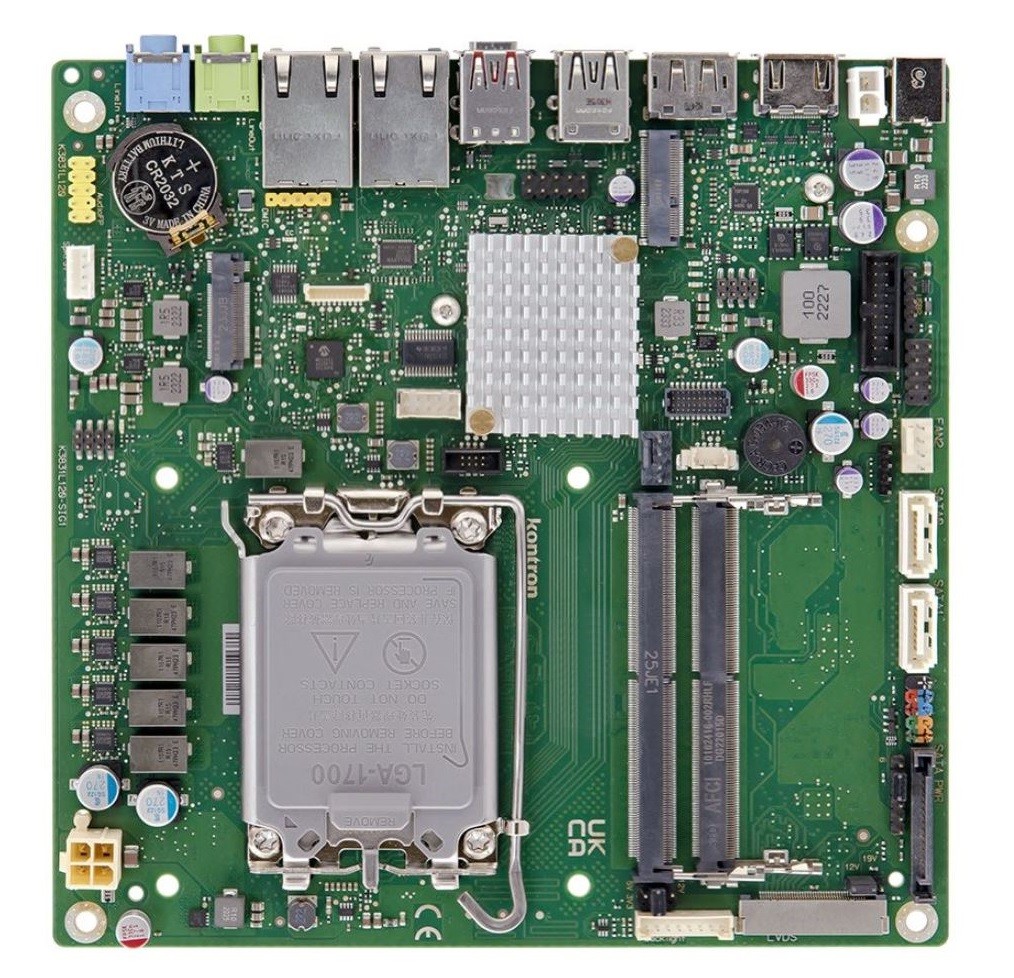

Basic Module: Kontron K3831-H
| General information | ||||
| SKU / Item Number | K3831-H | |||
| Product Basic Data | ||||
| Manufacturer | Kontron | |||
| Product ID | F5120-V219 | |||
| System | ||||
| Processor | Series | Intel Alder Lake / Raptor Lake | ||
| Socket | LGA 1700 (H6) | |||
| Thermal Design Power (TDP) | 65 W | |||
| Chipset | Intel H610 | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| Frequency | 5600 MHz | |||
| Slots | 2 Pce | |||
| Maximum expansion | 64 GB | |||
| ECC (Error-Correcting Code) | not supported | |||
| BIOS | AMI UEFI Aptio 5.x | |||
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| HDMI | Version | 2.0b | ||
| DisplayPort | Version | 1.4A | ||
| LVDS (Low Voltage Differential Signaling) | Bits | 24-bit | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 (Gen 4) | |||
| Supported dimensions | 2242 | |||
| Slot 2 | Key ID | E | ||
| Interface | CNVi (Connected Network Interface), WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | E, M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC256 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I219LM PCIe with AMT with Core i5/i7 (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Realtek RTL8111H (10/100/1000 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||

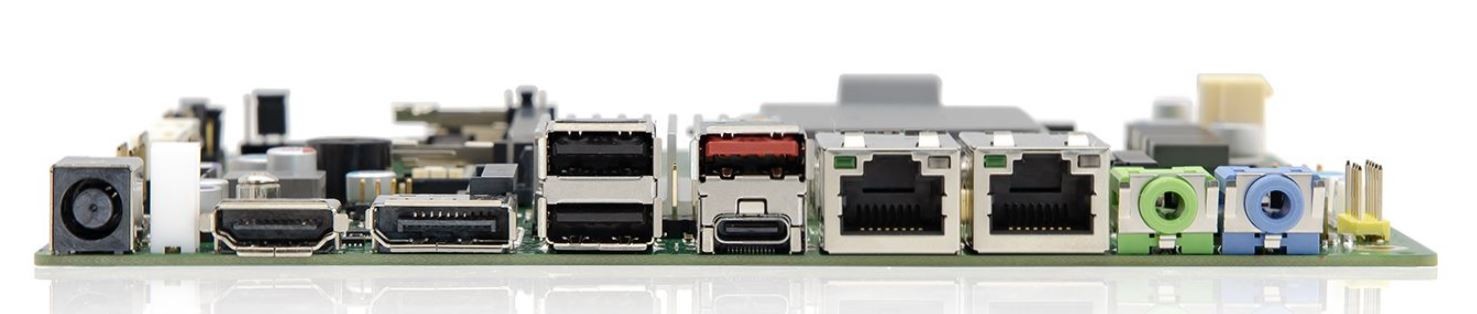

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DisplayPort | 1 Pce | |||
| DP USB-C | 1 Pce | |||
| Audio | Line-in | 1 Pce | ||
| Line Out | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 2.0 | 2 Pce | ||
| USB 3.2 (Gen 2) | 1 Pce | |||
| USB v3.2 (Gen 2, Type C) | 1 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 3 Pce | |
| USB 3.2 | Key-A Header (20-pin) | 2 Pce | ||
| Serial | RS-232 | Ports (2.54 mm pitch) | 1 Pce | |
| Display | LVDS (Low Voltage Differential Signaling) | Dual channel | ||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| Audio | Connector | 2.00 mm pitch | ||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Intel PTT (like TPM 2.0) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 19 to 24V | |||
| Connector | DC Power Jack | |||
| DC | Wide Range | Yes | ||
| Range | 12V / 19V to ~24V | |||
| Connector | 4-pin connector (horizontal) | |||
| Power supply - Input | DC: 19~24V, 12V / 19V ~ 24V | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Windows 11 | Supported | |||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Linux | Kernel | 5.x | ||
| Supported OS | Windows, Windows Embedded, Linux | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Dimensions | Form factor | Thin Mini-ITX | ||
| Width | 170 mm | |||
| Deep | 170 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | IEC 62368-1, UKCA | |||
| RoHS compliant | Yes | |||
