Thin Mini-ITX Mainboards
// Thin Mini-ITX Industrial Mainboards
// LGA 1700 (H6)
// Intel R680E
// 262-pin SO-DIMM DDR5
// 128 GB SSD
// 2 x G-LAN (Back side)
// 4 x USB (internal)
// 4 x Seriell I/O
// 1 x PCIe x16
// Power Supply DC 12V
Sales only to business customers.
Delivery time: upon request

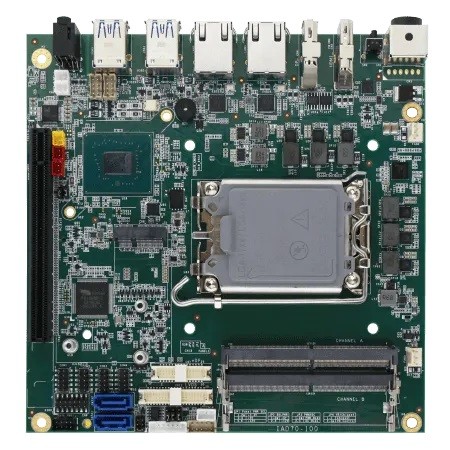

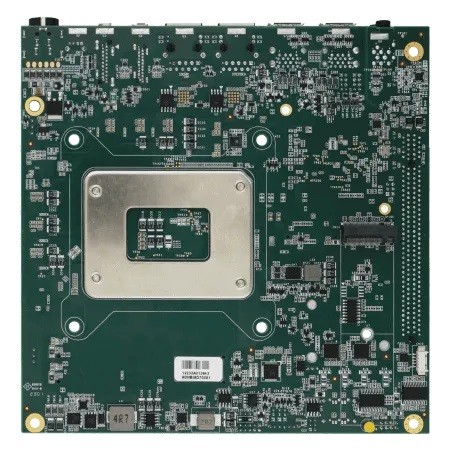

Basic Module: Winmate IAD70
| General information | ||||
| SKU / Item Number | IAD70 | |||
| Product Basic Data | ||||
| Manufacturer | Winmate | |||
| System | ||||
| Processor | Series | Intel Alder Lake / Raptor Lake | ||
| Socket | LGA 1700 (H6) | |||
| Chipset | Intel R680E | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 4800 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 64 GB | |||
| ECC (Error-Correcting Code) | is supported | |||
| Storage | Solid State Drive (SSD) | 128 GB | ||
| Power supply - Input | Solid State Drive (SSD) 128 GB | |||
| Graphics | ||||
| HDMI | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Version | 2.0b | |||
| DisplayPort | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Version | 1.4A | |||
| Dual mode | Yes (DP++) | |||
| Extension | ||||
| PCIe x16 | x16 signal | Generation | 4 | |
| Quantity | 1 Pce | |||
| PCIe Interfaces | 1x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | E | ||
| Interface | Wi-Fi | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | E, M | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Quantity | 2 Pce | |
| Network | 2x G-LAN | |||
| Externe I/O (Rear Panel) | ||||
| Display | DP++ | 1 Pce | ||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 4 Pce | |
| Serial | RS-232 | Ports (2.00 mm pitch) | 2 Pce | |
| RS-232 / 422 / 485 | Ports (2.00 mm pitch) | 2 Pce | ||
| Display | LCD / Inverter Power | Yes | ||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 14-bit | 1 Pce | |
| Audio | Verstärker | 2 Pce | ||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | ||
| RAID support | RAID 0/1 | is supported | ||
| Power connection (onboard) | 1 Pce | |||
| RAID support | RAID 0/1 | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | 4-pin connector (Kycon, Singatron, or similar) | |||
| Power supply - Input | DC: 12V | |||
| Typ (Output) | DC | Range | 12V | |
| Connector | 2-pin connector (horizontal) | |||
| OS / Software | ||||
| Windows | Windows 11 | Supported | ||
| Windows Embedded | Windows 11 IoT | is supported | ||
| Linux | Distribution | Ubuntu 22.04 | ||
| Supported OS | Windows, Windows Embedded, Linux | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -40°C to 70°C | |||
| Relative humidity | Operation | 10 to 95%, non-condensing | ||
| Dimensions | Form factor | Thin Mini-ITX | ||
| Width | 170 mm | |||
| Deep | 170 mm | |||
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
We are happy to advise you personally.
