CompactPCI
// 3U CompactPCI (cPCI) Industrial Mainboards
// [Intel Core i7-9850HL | Intel Xeon E-2276ML]
// Intel CM246
// 260-pin DDR4 SO-DIMM
// 2 x Displayport
// [2 | 4] x G-LAN
// 2 x USB
// 10 x USB (internal)
// [0 | 1] x Seriell I/O
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

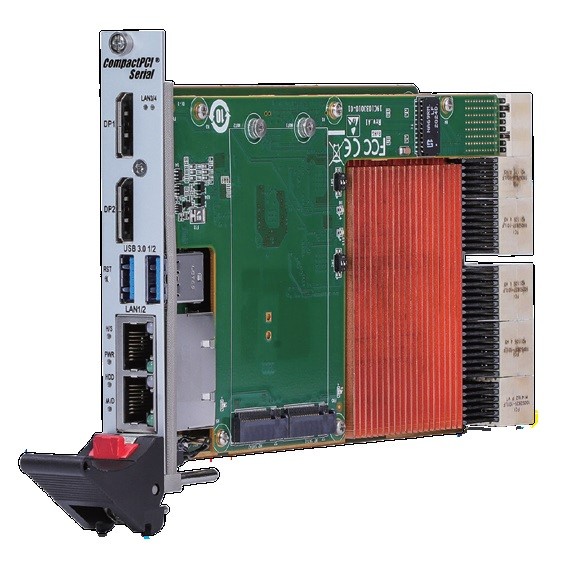

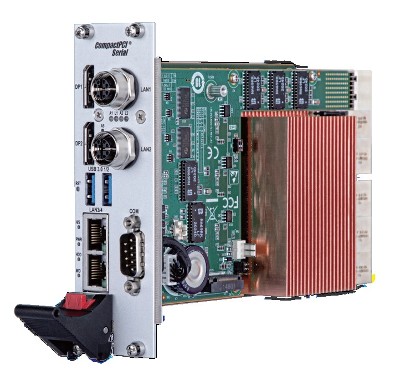

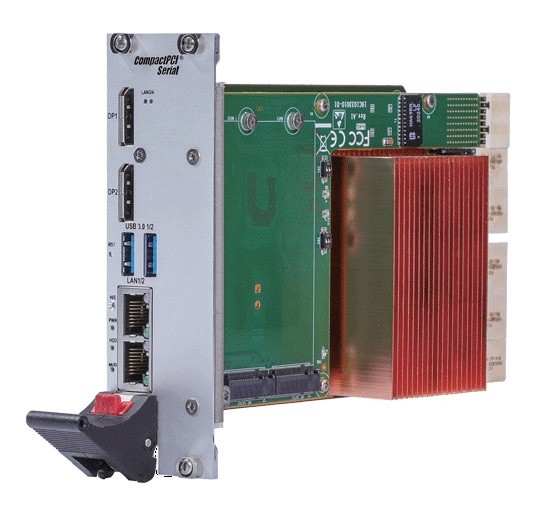

Basic Module: Advantech MIC-330
| General information | ||||
| SKU / Item Number | MIC-330 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Coffee Lake | |||
| Number | Intel Core i7-9850HL, Intel Xeon E-2276ML | |||
| CPU cores | 6 Pce | |||
| Threads | 12 Pce | |||
| Socket | BGA 1440 | |||
| Base frequency | 1,9 GHz, 2 GHz | |||
| Max Turbo Frequency | 4,1 GHz, 4,2 GHz | |||
| Cache | 9 MB, 12 MB | |||
| Thermal Design Power (TDP) | 25 W | |||
| Chipset | Intel CM246 | |||
| Memory | Structure | 260-pin DDR4 SO-DIMM | ||
| Memory Type | DDR4 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 2666 MT/s | |||
| Slots | 1 Pce, - | |||
| Maximum expansion | 32 GB | |||
| ECC (Error-Correcting Code) | -, is supported | |||
| BIOS | AMI SPI 128 Mbit | |||
| Graphics | ||||
| Processor | Intel UHD Graphics 630, Intel UHD Graphics P630 | |||
| DisplayPort | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Extension | ||||
| PCIe x2 | Generation | 3 | ||
| x2 Signal (Interface) | 2 Pce | |||
| PCIe x4 | Generation | 3 | ||
| x4 signal (interface) | 2 Pce | |||
| PCIe x8 | Generation | 3 | ||
| x8 Signal (Interface) | 2 Pce | |||
| PCIe Interfaces | 2x PCIe x2, 2x PCIe x4, 2x PCIe x8 | |||
| M.2 | Slot 2 | Key ID | B + M | |
| Interface | SATA III | |||
| Supported dimensions | 2280 | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210 PCIe (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| External I/O | ||||
| Ethernet | RJ-45 | 2 Pce | ||
| M12 connectors | 2 Pce, - | |||
| USB | USB 3.0 | 2 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 1 Pce, - | |
| Display | DisplayPort | 2 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Interface | 8 Pce | |
| USB 3.0 | Interface | 2 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -25°C to 70°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Storage | 5 to 95%, non-condensing | |||
| Dimensions | Form factor | 3U CompactPCI (cPCI) | ||
| Width | 160 mm | |||
| Deep | 100 mm | |||
| Vibration | Vibration | 2G, 5 to 500 Hz | ||
| Shock | Measurement Data | 10G, half sine wave, 11 ms duration | ||
| Controls | Reset | 1 Pce | ||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| System Status | 1 Pce | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Additional certificates / compliance approvals | EN 50121-4, EN 50155 | |||
| Compatibility | PICMG CompactPCI R2.0 | |||
| RoHS compliant | Yes | |||
