CompactPCI
// 3U CompactPCI (cPCI) Industrial Mainboards
// [Nvidia Jetson AGX ORIN 32 GB | Nvidia Jetson AGX ORIN 64 GB]
// SoC (System on a Chip)
// [32 GB | 64 GB]
// 1 x HDMI
// 2 x G-LAN
// 3 x USB
// [0 | 1] x Seriell I/O
// 64 GB eMMC
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

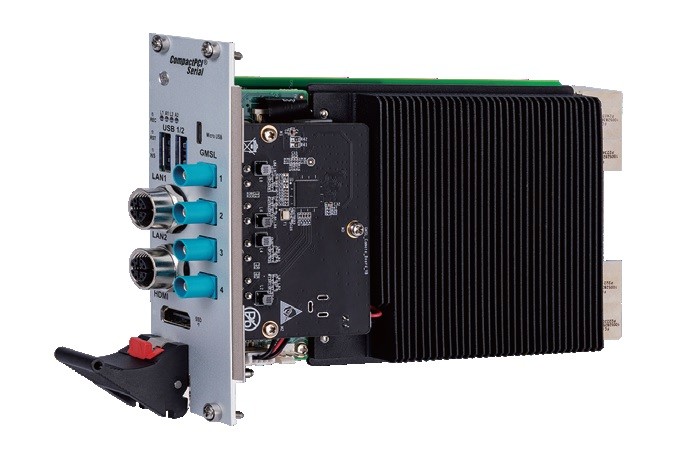

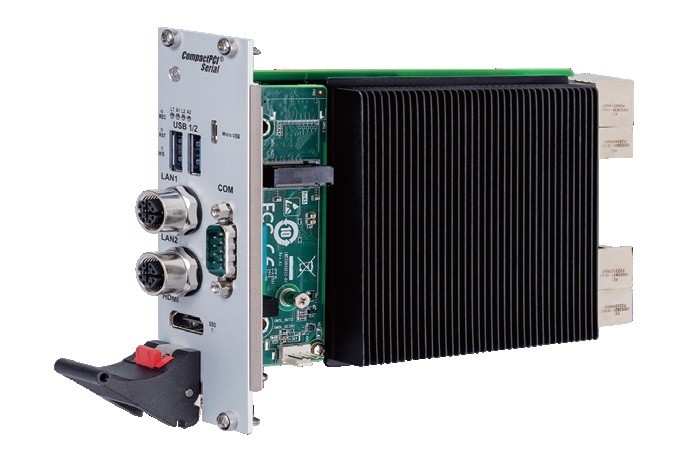

Basic Module: Advantech MIC-332AO
| General information | ||||
| SKU / Item Number | MIC-332AO | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Series | ARM Cortex-A78AE | ||
| Number | Nvidia Jetson AGX ORIN 32 GB, Nvidia Jetson AGX ORIN 64 GB | |||
| CPU cores | 8 Pce, 12 Pce | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR5 | ||
| Internal memory | 32 GB, 64 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 64 GB | ||
| eMMC version | 5.1 | |||
| Power supply - Input | Embedded MultiMedia Card (eMMC) 64 GB | |||
| Graphics | ||||
| Cores | RT Cores | 1792 Pce, 2048 Pce | ||
| Tensor | 56 Pce, 64 Pce | |||
| Performance | TOPS (INT8) | 200, 275 | ||
| HDMI | Maximum resolution | 3840 x 2160 at 60 Hz | ||
| Version | 2.0 | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 | |||
| Supported dimensions | 2242 | |||
| M.2 Key IDs | M | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Marvell 88E1512 (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Marvell AQC113 (2.5/5/10 Gbps) | ||
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | ||
| Quantity | 2 Pce | |||
| Network | 4x G-LAN | |||
| External I/O | ||||
| Ethernet | M12 connectors | 2 Pce | ||
| USB | USB 3.2 (Gen 2) | 2 Pce | ||
| USB On-The-Go (USB OTG) | 1 Pce | |||
| Serial | RS-232 | DB-9 | 1 Pce, - | |
| Display | HDMI | 1 Pce | ||
| Gigabit Multimedia Serial Link | Protocol | -, GMSL2 | ||
| Quantity | 4 Pce, - | |||
| OS / Software | ||||
| Linux | Distribution | Linux, Ubuntu 22.04 | ||
| Kernel | 5.x | |||
| Supported OS | Linux | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -25°C to 70°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Storage | 5 to 95%, non-condensing | |||
| Dimensions | Form factor | 3U CompactPCI (cPCI) | ||
| Width | 160 mm | |||
| Deep | 100 mm | |||
| Vibration | Vibration | 2G, 5 to 500 Hz | ||
| Shock | Measurement Data | 10G, half sine wave, 11 ms duration | ||
| Controls | Reset | 2 Pce | ||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| System Status | 1 Pce | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Additional certificates / compliance approvals | EN 50121-4, EN 50155, UKCA | |||
| Compatibility | PICMG CompactPCI R2.0 | |||
| RoHS compliant | Yes | |||
