CompactPCI
// 3U CompactPCI (cPCI) Industrial Mainboards
// [Intel Atom X7433RE | Intel Atom x7835RE]
// SoC (System on a Chip)
// 16 GB
// 1 x Displayport
// 2 x G-LAN
// 2 x USB
// 5 x USB (internal)
// 2 x Seriell I/O
// 4 x PCIe x1
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

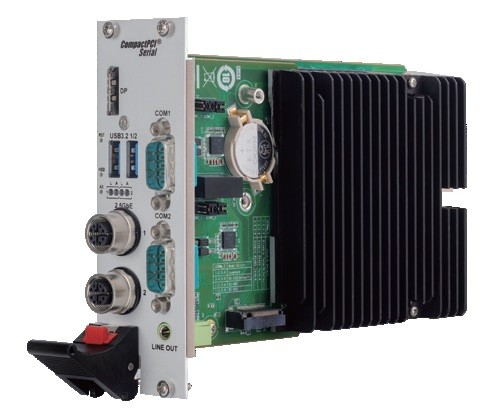

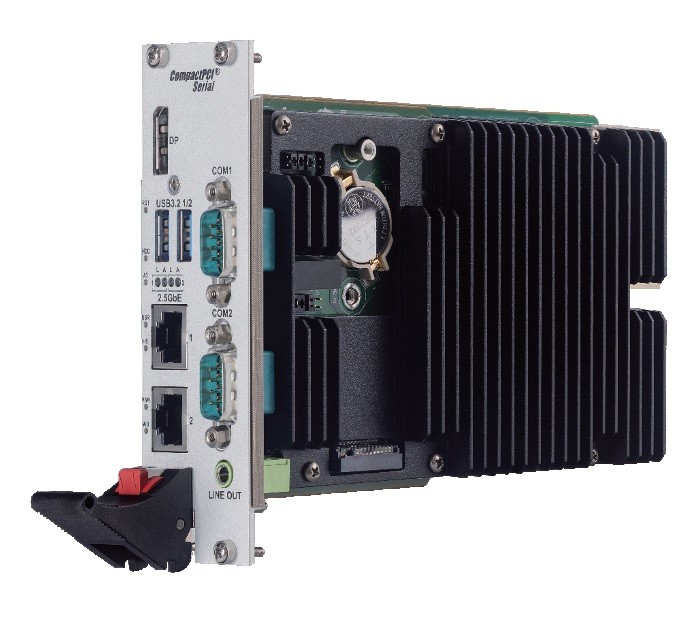

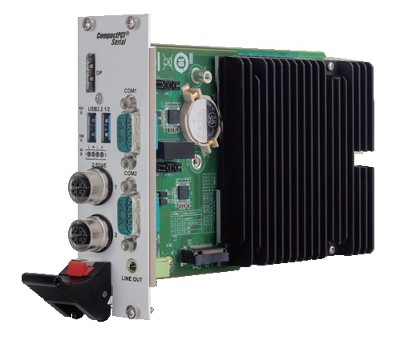

Basic Module: Advantech MIC-336
| General information | ||||
| SKU / Item Number | MIC-336 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Amston Lake | |||
| Number | Intel Atom X7433RE, Intel Atom x7835RE | |||
| CPU cores | 4 Pce, 8 Pce | |||
| Socket | BGA 1264 | |||
| Max Turbo Frequency | 3,4 GHz, 3,6 GHz | |||
| Cache | 6 MB | |||
| Thermal Design Power (TDP) | 9 W, 12 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR5 | ||
| DIMM data transfer rate | 4800 MT/s | |||
| ECC (Error-Correcting Code) | is supported | |||
| Internal memory | 16 GB | |||
| BIOS | AMI SPI 256 Mbit | |||
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| DisplayPort | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Extension | ||||
| PCIe x1 | x1 Signal (Interface) | 4 Pce | ||
| PCIe Interfaces | 4x PCIe x1 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×1 (Gen 3), SATA III | |||
| Supported dimensions | 2242, 2280 | |||
| M.2 Key IDs | M | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226IT PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| External I/O | ||||
| Ethernet | RJ-45 | 2 Pce, - | ||
| M12 connectors | 2 Pce, - | |||
| USB | USB 3.2 (Gen 1) | 2 Pce | ||
| Serial | RS-232 | DB-9 | 2 Pce | |
| Display | DisplayPort | 1 Pce | ||
| Audio | Line Out | 1 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Interface | 4 Pce | |
| USB 3.2 | Generation | Gen. 1 | ||
| Interface | 1 Pce | |||
| Serial ATA | SATA R3.0 (Interface) | 1 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Windows 11 | Supported | |||
| Linux | Distribution | Ubuntu 22.04 | ||
| Supported OS | Linux, Windows | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -40°C to 70°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Storage | 5 to 95%, non-condensing | |||
| Dimensions | Form factor | 3U CompactPCI (cPCI) | ||
| Width | 160 mm | |||
| Deep | 100 mm | |||
| Vibration | Vibration | 2G, 5 to 500 Hz | ||
| Shock | Measurement Data | 10G, half sine wave, 11 ms duration | ||
| Weight | 700 g | |||
| Controls | Reset | 1 Pce | ||
| Status indicators | Storage | 2 Pce | ||
| Power | 1 Pce | |||
| Gigabit Ethernet | 3 Pce | |||
| System Status | 1 Pce | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Compatibility | PICMG CompactPCI R2.0 | |||
| RoHS compliant | Yes | |||
