E-ATX Server Mainboards
// E-ATX Industrial Mainboards
// LGA 4710
// Intel W890
// 288-pin DDR5 DIMM
// 3 x G-LAN (Back side)
// 4 x USB (Back side)
// 1 x USB (internal)
// 6 x PCIe x16
// Power Supply ATX
Sales only to business customers.
Delivery time: upon request

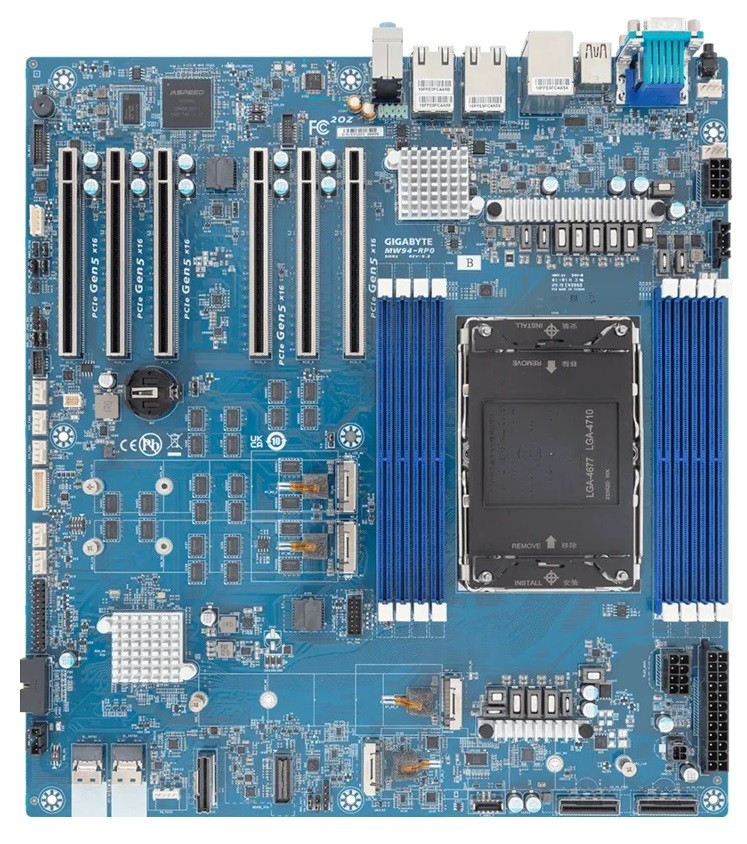

Basic Module: GIGAIPC MW94-RP0
| General information | ||||
| SKU / Item Number | MW94-RP0 | |||
| Product Basic Data | ||||
| Manufacturer | GIGAIPC | |||
| System | ||||
| Processor | Vertical Segment | Server | ||
| Socket | LGA 4710 | |||
| Thermal Design Power (TDP) | 350 W | |||
| Chipset | Intel W890 | |||
| Memory | Structure | 288-pin DDR5 DIMM | ||
| Memory Type | DDR5 | |||
| DIMM Type | Registered DIMM | |||
| DIMM data transfer rate | 6400 MT/s | |||
| Slots | 8 Pce | |||
| Maximum expansion | 4096 GB | |||
| ECC (Error-Correcting Code) | is supported | |||
| BIOS | AMI SPI 128 Mbit | |||
| IPMI (Intelligent Platform Management Interface) | IPMI controller | Aspeed AST2600 BMC | ||
| Version | 2.0 | |||
| Graphics | ||||
| Processor | Aspeed AST2600 BMC | |||
| VGA | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Extension | ||||
| PCIe x16 | x16 signal | Generation | 5 | |
| Quantity | 6 Pce | |||
| PCIe Interfaces | 6x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 (Gen. 5) | |||
| Supported dimensions | 2280, 22110 | |||
| Slot 2 | Key ID | M | ||
| Interface | NVMe, PCIe ×4 (Gen. 5) | |||
| Supported dimensions | 2280, 22110 | |||
| Slot 3 | Key ID | M | ||
| Interface | NVMe, PCIe ×4 (Gen. 5) | |||
| Supported dimensions | 2280, 22110 | |||
| Slot 4 | Key ID | M | ||
| Interface | NVMe, PCIe ×4 (Gen. 5) | |||
| Supported dimensions | 2280, 22110 | |||
| M.2 Key IDs | M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC897 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel X710-AT2 (10 Gbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Realtek RTL8211FD (10/100/1000 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||

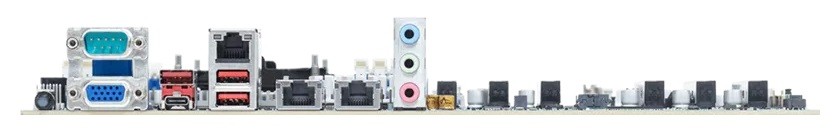

| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| Audio | Line-in | 1 Pce | ||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| RJ-45 with OOB | 1 Pce | |||
| Serial | RS-232 | DB-9 | 1 Pce | |
| USB | USB 3.2 (Gen 2) | 3 Pce | ||
| USB v3.2 (Gen 2, Type C) | 1 Pce | |||
| Internal I/O | ||||
| USB | USB 3.2 | Key-A Header (20-pin) | 1 Pce | |
| Key-E Header (20-Pin) | 1 Pce | |||
| VROC connector | Yes | |||
| Audio | Connector | 2.00 mm pitch | ||
| Mini Cool Edge IO (MCIO) | 4i | 2 Pce | ||
| 8i | 3 Pce | |||
| Safety | ||||
| Trusted Platform Module (TPM) | TPM header | |||
| Power Supply | ||||
| Typ (Input) | ATX | Connector | 2 x 8-pin ATX (12V DC), 4-pin ATX (12V DC), 24-pin ATX | |
| Power supply - Input | ATX: 2 x 8-pin ATX (12V DC), 4-pin ATX (12V DC), 24-pin ATX | |||
| PMBus connector | Yes | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 10° to 40°C | ||
| Storage | -40° to 60°C | |||
| Relative humidity | Operation | 5 to 80%, non-condensing | ||
| Storage | 20 to 95%, non-condensing | |||
| Dimensions | Form factor | E-ATX | ||
| Width | 304,8 mm | |||
| Deep | 330,2 mm | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Power | 1 Pce | ||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
