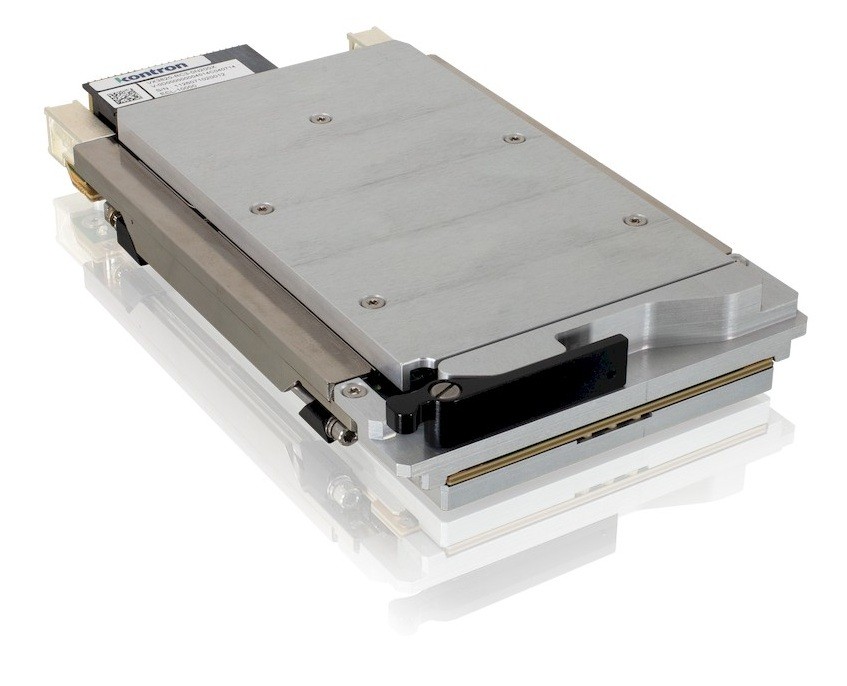

Kontron VX33211

VX33211-RC4-0N100, VX33211-SA-0F100

VPX Boards

PRODUCT FEATURES

// 3U VPX Industrial Mainboards

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Kontron VX33211

General information
SKU / Item NumberVX33211VX33211-RC4-0N100, VX33211-SA-0F100
Product Basic Data
ManufacturerKontron
Product ID1080-7179, 1080-7180
Graphics
ProcessorNvidia RTX Pro 2000 Blackwell
CoresCUDA3328 Pce
RT Cores26 Pce
Tensor104 Pce
MemoryRAM8 GB (GDDR7)
Broadband128-bit
Performance featureSupportDirectX 12 Ultimate, OpenGL 4.6, Vulkan 1.2.131
PerformanceTFLOPS (FP32)13,78
Externe I/O (Rear Panel)
DisplayMini DisplayPort2 Pce, -
OS / Software
LinuxDistributionLinux
Supported OSLinux
Mechanical / Environment
Thermal Design Power (TDP)60 W
DimensionsForm factor3U VPX
InterfacePCI Express 4.0 x 8
Certificates / Conformities
CEYes
Additional certificates / compliance approvalsREACH
RoHS compliantYes
