Network Interface Cards
// PCIe Network Interface Cards
// [2 | 4] x G-LAN
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

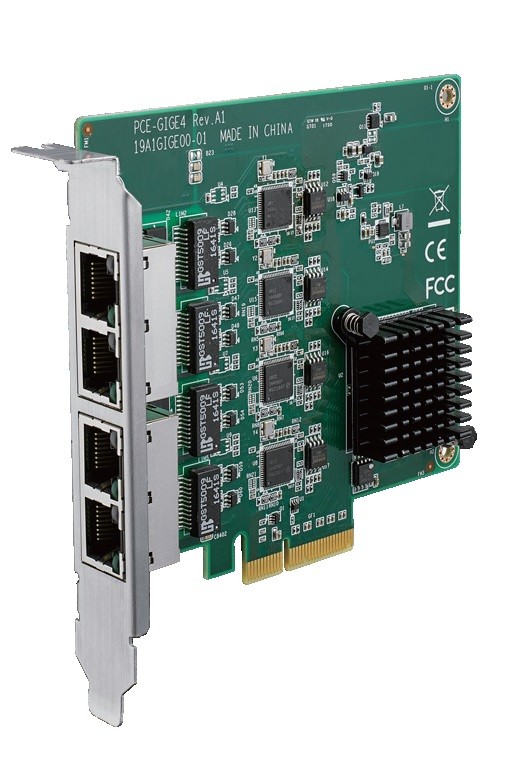

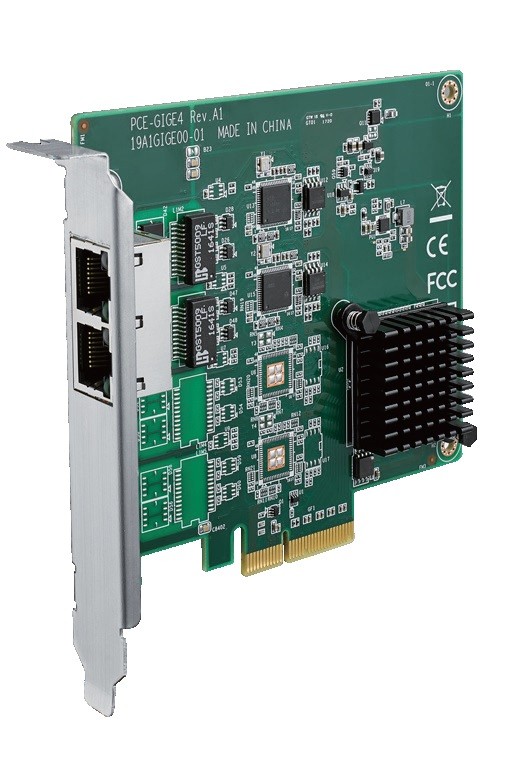

Basic Module: Advantech PCE-GIGE
| General information | ||||
| SKU / Item Number | PCE-GIGE | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| Extension | ||||
| PCIe x4 | Generation | 2 | ||
| x2 Signal | 1 Pce | |||
| PCIe Interfaces | 1x PCIe x4 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210 PCIe (10/100/1000 Mbps) | |
| Quantity | 2 Pce, 4 Pce | |||
| External I/O | ||||
| Ethernet | RJ-45 | 2 Pce, 4 Pce | ||
| OS / Software | ||||
| Windows | Windows 7 (32/64-bit) | is supported | ||
| Windows 8 (32-bit) | is supported | |||
| Windows 8 (64-bit) | is supported | |||
| Windows 10 (64-bit) | is supported | |||
| Windows Server 2012 | is supported | |||
| Windows Server 2016 | is supported | |||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -40°C to 85°C | |||
| Dimensions | Form factor | PCIe | ||
| Interface | PCI Express 2.0 x 4 | |||
| Width | 118 mm | |||
| Deep | 111 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
