Network Interface Cards
// Network Interface Cards
// 4 x G-LAN
Sales only to business customers.
Delivery time: upon request

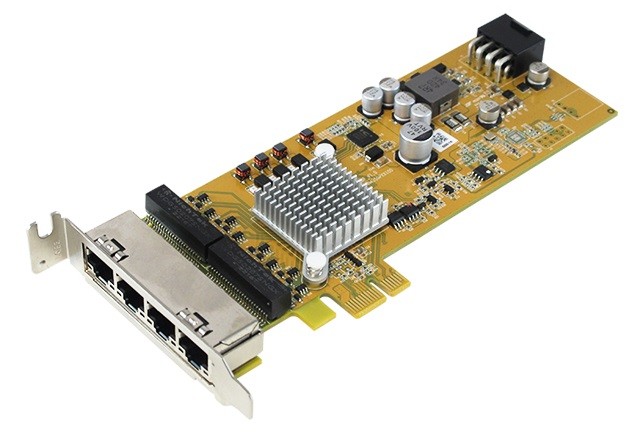

Basic Module: Sunix LAN4350PL
| General information | ||||
| SKU / Item Number | LAN4350PL | |||
| Product Basic Data | ||||
| Manufacturer | Sunix | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I350-AM4 Quad Port PCIe (10/100/1000 Mbps) | |
| External I/O | ||||
| Ethernet | RJ-45 with PoE | 4 Pce | ||
| Power Supply | ||||
| Typ (Input) | DC | Range | 12V | |
| Connector | 8-pin PCIe (GFC) ATX connector (for PoE power supply) | |||
| POE+ | Quantity | 4 Pce | ||
| Power supply - Input | DC: 12V | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Windows 11 IoT | is supported | |||
| Linux | Distribution | Linux | ||
| Supported OS | Windows Embedded, Linux | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -10°C to 85°C | |||
| Relative humidity | Operation | 5 to 85%, non-condensing | ||
| Storage | 0 to 80%, non-condensing | |||
| Dimensions | Width | 1,6 mm | ||
| Deep | 167 mm | |||
| Height | 68,5 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Additional certificates / compliance approvals | BSMI, VCCI | |||
| RoHS compliant | Yes | |||
| IEEE Ethernet and Networking Standards | IEEE 802.3 for 10BASE-T Ethernet, IEEE 802.3ab for 1000BASE-T Gigabit Ethernet, IEEE 802.3af/at/bt for Power over Ethernet (PoE/PoE+/PoE++), IEEE 802.3u for 100BASE-TX Fast Ethernet | |||
