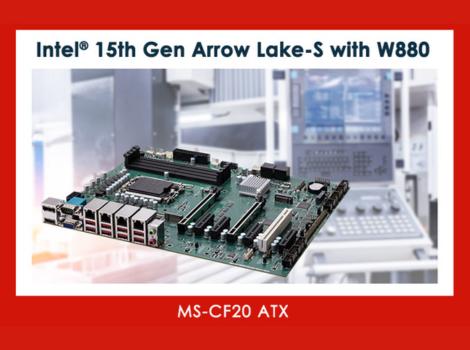

MS-CF20: Next-Generation ATX Motherboard with 15th Gen Intel® Arrow Lake-S Processors and Robust Legacy Support

MSI IPC, Taiwan, 22.04.2025 - Introducing the MS-CF20, a high-performance ATX motherboard with the Intel® W880 chipset, supporting the 15th Gen Intel® Arrow Lake-S Series processors. Designed to meet the needs of advanced computing applications, the MS-CF20 combines next-generation CPU support with robust legacy features, offering unparalleled versatility for both modern and existing systems.
Optimized for Power and Performance
The MS-CF20 supports Intel® Core™ U9/U7/U5, Pentium®, and Celeron® processors, leveraging the latest advancements in Intel® 15th Gen Arrow Lake-S technology. With higher core counts, improved instructions per clock, and greater energy efficiency, the new processors deliver exceptional performance for demanding and AI-driven workloads.
The board is equipped with 4 DDR5 UDIMM slots, supporting both ECC and non-ECC memory at speeds up to 5600 MT/s and a maximum capacity of 192GB, enabling unmatched performance for data-intensive applications.
Advanced Graphics and Display Support
Built to enable seamless multitasking and visualization, the MS-CF20 offers triple independent display support via VGA, DisplayPort (DP), and HDMI. This feature makes it ideal for applications requiring high-resolution visuals across multiple screens, such as industrial automation, control centers, and digital signage.
Robust Connectivity for Networking and Storage
The MS-CF20 ensures high-speed, reliable networking with 4 2.5GbE LAN ports (RJ-45), enhancing connectivity for data processing and server-grade tasks. For storage, the board provides comprehensive options, including 2 M.2 M Key slots, 4 SATA 3.0 ports, and support for SATA RAID 0/1/5/10, offering flexibility and security for critical data management.
Extensive Expansion and I/O Interfaces
To accommodate diverse application requirements, the MS-CF20 features:
- PCIe Expansion: 1 PCIe x16 (Gen 5) slot or 2 PCIe x8 (Gen 5), plus 4 PCIe x4 (Gen 4) slots, allowing superior flexibility for GPU, network, or accelerator card integration.
- USB Ports: 8 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, and 3 USB 2.0 ports, ensuring connectivity for high-speed peripherals.
- Serial Communication: 10 COM ports (2 RS-485, 8 RS-232) for industrial-grade compatibility.
- Additional I/O: GPIO, PS/2, audio ports, and onboard TPM 2.0 for enhanced security.
- Legacy Support PS/2 Port: Supports legacy peripherals like older keyboards and mice, often used in industrial and automation environments where reliability and low-latency input are critical.
- Legacy Support PCI Slot: Retains compatibility with legacy PCI cards, allowing users to integrate older expansion cards for industrial control systems, automation, and legacy hardware support.
- Legacy Support VGA Port: Ensures compatibility with legacy displays and projectors, widely used in control systems, factory automation, and applications requiring extended lifecycle support.
- Legacy Support Serial Communication: 10 COM ports (1 Rear, 9 Internal): COM1/2 support RS-232/422/485 with Ring/0V/5V/12V Autoflow (default: Ring). COM3-10 support RS-232 with 0V/5V/12V Autoflow, ensuring industrial-grade compatibility and flexible serial communication.
Reliability and Industry Standards
Designed with reliability in mind, the MS-CF20 integrates advanced features such as SMBus, I2C, PMBus, and Intel® AMT 19.x for remote management and monitoring. Chassis Intrusion detection adds another layer of physical security, while multiple system fan connectors ensure efficient thermal management.
Key Features Summary
- Intel® 15th Gen Arrow Lake-S processors with Intel® W880 chipset
- 4 DDR5 ECC/non-ECC UDIMM slots up to 192GB
- Triple independent displays: VGA, DP, HDMI
- 4 2.5GbE LAN ports
- Flexible PCIe expansion (Gen 5 and Gen 4)
- Dual M.2 M Key slots and 4 SATA 3.0 for storage with RAID support
- Rich I/O: USB 3.2, COM ports, GPIO, PS/2, PCI slot, and onboard TPM 2.0
- Legacy support for PS/2, PCI, VGA and COM.
- ATX Power design with advanced thermal and security features
Target Applications
The MS-CF20 is built for high-performance computing solutions, including:
- Industrial Automation and Control Systems: Enables seamless control and monitoring of industrial machinery, production lines, and process automation.
- Data Processing Servers: Provides the computational power and connectivity needed for high-volume data analysis and real-time processing.
- Transportation Systems: Supports fleet management, traffic control, and transportation logistics with robust reliability and connectivity.
- Surveillance and Security Platforms: Offers the processing capability for high-definition video streaming, real-time monitoring, and analytics.
- Medical Imaging and Data Processing: Ensures fast and accurate processing of medical imaging data for diagnostics and healthcare systems.
- Edge AI and Machine Learning Systems: Facilitates real-time data processing and AI inferencing for smart applications in IoT and edge environments.
- Autonomous Vehicles and Robotics: Provides the high-performance computing needed for automation, navigation, and real-time decision-making.
- Energy Management and Smart Grid Applications: Supports energy monitoring, grid control, and efficient resource management in smart infrastructure.
- Broadcast and Streaming Servers: Handles high-bandwidth media delivery, live streaming, and content distribution efficiently and reliably.
- Legacy System Integration: Seamlessly supports older devices, displays, and peripherals through PS/2, PCI, and VGA, ensuring extended lifecycle support for industrial and enterprise systems.
The MS-CF20 delivers the performance, connectivity, and reliability required for today’s most demanding applications, while retaining critical legacy support for industrial environments.
MSI is a leading provider of innovative embedded and industrial computing solutions, delivering cutting-edge products tailored to diverse industries. With a focus on quality, reliability, and customer satisfaction, MSI empowers businesses to achieve their goals with advanced technology.
