SMARC
// Rockchip RK3568
// 2 GB
// 2 x G-LAN
// 4 x USB (intern)
// 1 x CAN Bus
// 32 GB eMMC
// Digital I/O (12-Bit)
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

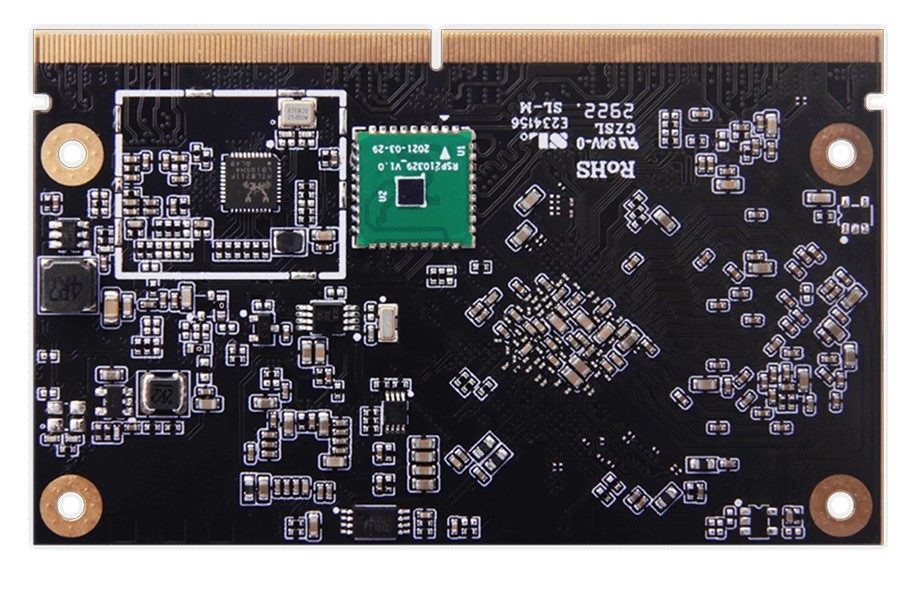

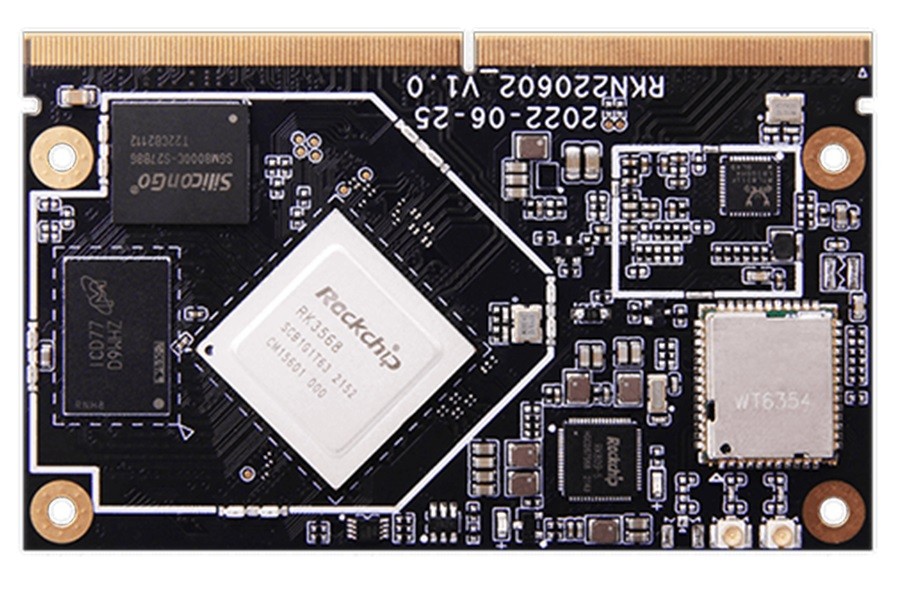

Basismodul: Avalue SMA-3568
Allgemein | ||||
SKU / Artikelnummer | SMA-3568 | |||
Produktgrunddaten | ||||
Hersteller | Avalue | |||
System | ||||
Prozessor | Serie | ARM Cortex-A55 | ||
Nummer | Rockchip RK3568 | |||
CPU Kerne | 4 St | |||
Basis Frequenz | 2 GHz | |||
Speicher | Maximaler Ausbau | 8 GB | ||
Speicher onBoard | 2 GB | |||
Storage | Embedded MultiMedia Card (eMMC) | 32 GB | ||
Storage | Embedded MultiMedia Card (eMMC) 32 GB | |||
Grafik | ||||
Prozessor | ARM Mali-G52 MP6 | |||
Performance | TOPS (INT8) | 1 | ||
Erweiterung | ||||
PCIe x2 | x2 Signal (Interface) | 3 St | ||
PCIe Schnittstellen | 3x PCIe x2 | |||
Externe I/O | ||||
Ethernet | Interface | 2 St | ||
Interne I/O | ||||
USB | USB v2.0 | Interface | 2 St | |
USB v3.0 | Interface | 1 St | ||
USBOTG (USB On-The-Go) | Interface | 1 St | ||
Anzeige | LVDS Interface | 1 St | ||
HDMI Interface | 1 St | |||
Digital I/O | Bits | 12-Bit | 1 St | |
Serial Peripheral Interface (SPI) | 2 St | |||
I²C | 4 St | |||
UART | Tx/Rx | 6 St | ||
Image Capture Interfaces | Kamera Eingang 1 | MIPI-CSI (Camera Serial Interface) | 1 St | |
Lanes | 4 St | |||
MIPI-DSI (Display Serial Interface) | 1 St | |||
CAN Bus | Version 2.0B (Interface) | 1 St | ||
Audio | I²S | 1 St | ||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
Kompatibilität | SMARC Spezifikation Revision 2.1 | |||
RoHS konform | Ja |
