SMARC
// SMARC
// [Intel Atom X7211RE | Intel Atom x7425E | Intel Atom X7433RE | Intel Atom x7835RE | Intel Core i3-N305 | Intel N50 | Intel N97 | Intel N200]
// [4 GB | 8 GB | 16 GB]
// LVDS
// [1 | 2] x G-LAN
// 8 x USB (internal)
// [0 | 2] x CAN Bus
// [32 GB | 64 GB] eMMC
// Digital I/O (8-Bit)
// 3 x PCIe x1
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

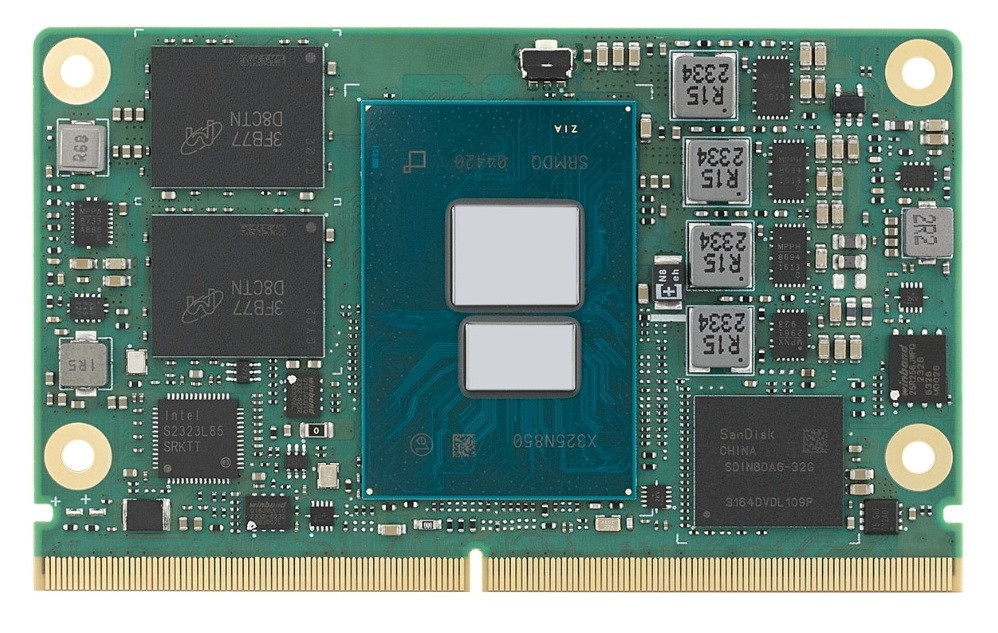

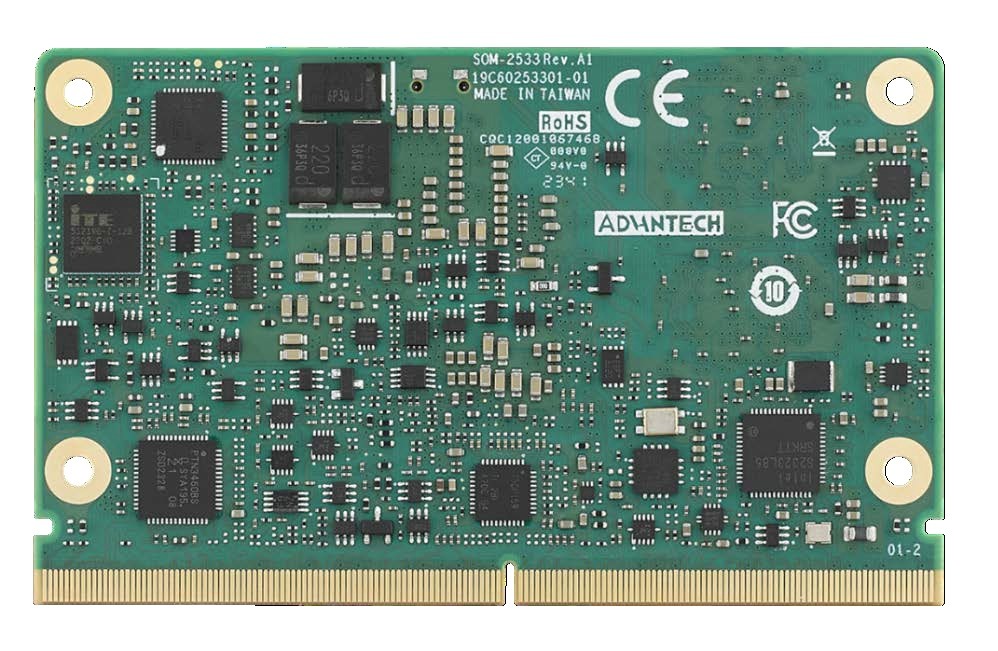

Basic Module: Advantech SOM-2533
| General information | ||||
| SKU / Item Number | SOM-2533 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Number | Intel Atom X7211RE, Intel Atom x7425E, Intel Atom X7433RE, Intel Atom x7835RE, Intel Core i3-N305, Intel N50, Intel N97, Intel N200 | ||
| CPU cores | 2 Pce, 4 Pce, 8 Pce | |||
| Threads | 4 Pce, 8 Pce, - | |||
| Socket | BGA 1264 | |||
| Max Turbo Frequency | 3,2 GHz, 3,4 GHz, 3,6 GHz, 3,7 GHz, 3,8 GHz | |||
| Cache | 6 MB | |||
| Thermal Design Power (TDP) | 6 W, 9 W, 12 W, 15 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR5 | ||
| DIMM data transfer rate | 4800 MT/s | |||
| Maximum expansion | 16 GB | |||
| Internal memory | 4 GB, 8 GB, 16 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 32 GB, 64 GB | ||
| BIOS | AMI UEFI 256 Mbit SPI | |||
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| Screens (Multi-display) | 3 displays | |||
| HDMI | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Version | 2.0b | |||
| DisplayPort | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Version | 1.4 | |||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| eDP (Embedded DisplayPort) | Maximum resolution | 1920 x 1080 at 60 Hz | ||
| Extension | ||||
| PCIe x1 | x1 Signal (Interface) | 3 Pce | ||
| PCIe Interfaces | 3x PCIe x1 | |||
| External I/O | ||||
| Ethernet | Interface | 1 Pce, 2 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Interface | 6 Pce | |
| USB 3.2 | Generation | Gen. 2 | ||
| Interface | 2 Pce | |||
| Display | LVDS interface | 1 Pce, - | ||
| eDP (Embedded DisplayPort) lanes | 1 Pce, - | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| Serial Peripheral Interface (SPI) | 1 Pce | |||
| Enhanced Serial Peripheral Interface (eSPI) | 1 Pce | |||
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| UART | Tx/Rx | 3 Pce | ||
| Tx/Rx/CTS/RTS | 1 Pce | |||
| CAN bus | Version 2.0B (Interface) | 2 Pce, - | ||
| Serial ATA | SATA R3.0 (Interface) | 1 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 65535 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | fTPM 2.0 (Firmware Simulation) | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows Embedded | |||
| Cooling | ||||
| Implementation | Active (fan cooling), Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C, -40°C to 85°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Storage | 5 to 95%, non-condensing | |||
| Dimensions | Form factor | SMARC | ||
| Width | 82 mm | |||
| Deep | 50 mm | |||
| Vibration | Vibration | 3G, 10 to 500 Hz | ||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Compatibility | SMARC Specification Revision 2.1 | |||
| RoHS compliant | Yes | |||
