SMARC
// SMARC
// [Intel Atom X7211RE | Intel Atom x7425E | Intel Atom X7433RE | Intel Atom x7835RE | Intel Core i3-N305 | Intel N50 | Intel N97 | Intel N200]
// [4 GB | 8 GB | 16 GB]
// LVDS
// [1 | 2] x G-LAN
// 8 x USB (intern)
// [0 | 2] x CAN Bus
// [32 GB | 64 GB] eMMC
// Digital I/O (8-Bit)
// 3 x PCIe x1
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

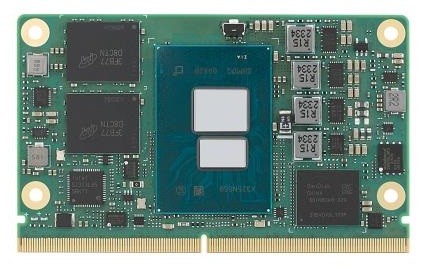

Basismodul: Advantech SOM-2533
Allgemein | ||||
SKU / Artikelnummer | SOM-2533 | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
System | ||||
Prozessor | Nummer | Intel Atom X7211RE, Intel Atom x7425E, Intel Atom X7433RE, Intel Atom x7835RE, Intel Core i3-N305, Intel N50, Intel N97, Intel N200 | ||
CPU Kerne | 2 St, 4 St, 8 St | |||
Threads | 4 St, 8 St, - | |||
Sockel | BGA 1264 | |||
Max. Turbo-Taktfrequenz | 3,2 GHz, 3,4 GHz, 3,6 GHz, 3,7 GHz, 3,8 GHz | |||
Cache | 6 MB | |||
Thermal Design Power (TDP) | 6 W, 9 W, 12 W, 15 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Memory Type | DDR5 | ||
DIMM Datarate | 4800 MT/s | |||
Maximaler Ausbau | 16 GB | |||
Speicher onBoard | 4 GB, 8 GB, 16 GB | |||
Storage | Embedded MultiMedia Card (eMMC) | 32 GB, 64 GB | ||
BIOS | AMI UEFI 256 Mbit SPI | |||
Storage | Embedded MultiMedia Card (eMMC) 32 GB, Embedded MultiMedia Card (eMMC) 64 GB | |||
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
Bildschirme (Multidisplay) | 3 Displays | |||
HDMI | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Version | 2.0b | |||
Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Version | 1.4 | |||
LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
eDP (embedded Display Port) | Maximale Auflösung | 1920 x 1080 bei 60 Hz | ||
Erweiterung | ||||
PCIe x1 | x1 Signal (Interface) | 3 St | ||
PCIe Schnittstellen | 3x PCIe x1 | |||
Externe I/O | ||||
Ethernet | Interface | 1 St, 2 St | ||
Interne I/O | ||||
USB | USB v2.0 | Interface | 6 St | |
USB v3.2 | Generation | Gen. 2 | ||
Interface | 2 St | |||
Anzeige | LVDS Interface | 1 St, - | ||
eDP (embedded Display Port) Lanes | 1 St, - | |||
Digital I/O | Bits | 8-Bit | 1 St | |
SMBus | 1 St | |||
Serial Peripheral Interface (SPI) | 1 St | |||
Enhanced Serial Peripheral Interface (eSPI) | 1 St | |||
I²C | 1 St | |||
UART | Tx/Rx | 3 St | ||
Tx/Rx/CTS/RTS | 1 St | |||
CAN Bus | Version 2.0B (Interface) | 2 St, - | ||
Serial-ATA | S-ATA R3.0 (Interface) | 1 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | fTPM 2.0 (Firmware Simulation) | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows Embedded | |||
Kühlung | ||||
Umsetzung | Aktiv (Lüfterkühlung), Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C, -40° bis 85°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Lagerung | 5 bis 95%, nicht kondensierend | |||
Abmaße | Formfaktor | SMARC | ||
Breite | 82 mm | |||
Tiefe | 50 mm | |||
Vibration | Vibration | 3G, 10~500 Hz | ||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
Kompatibilität | SMARC Spezifikation Revision 2.1 | |||
RoHS konform | Ja |
