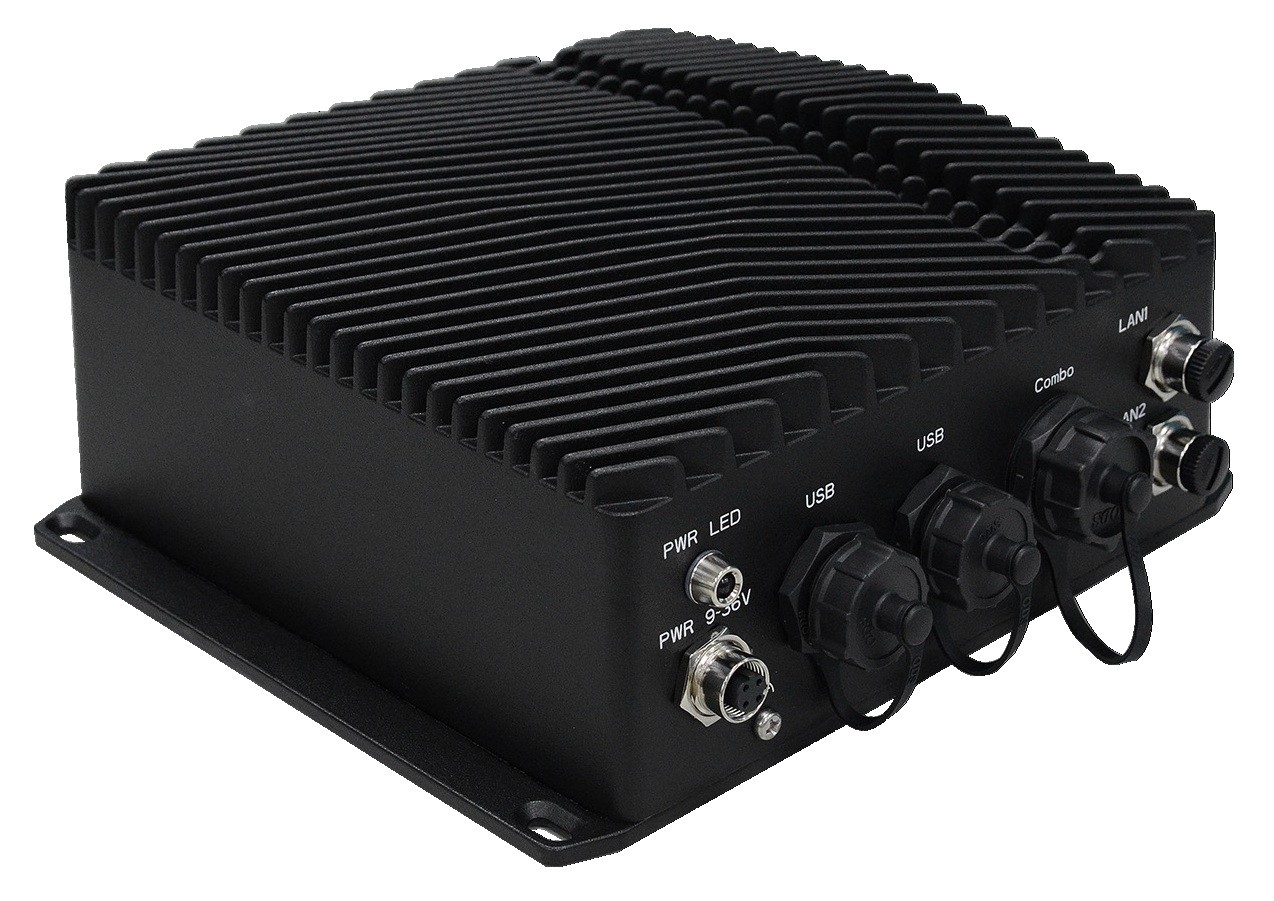

DFI ECX700-ASL

ECX700-ASL2020A-X33, ECX700-ASL2020A-X35

Embedded System

PRODUCT FEATURES

// Embedded System
// [Intel Atom X7433RE | Intel Atom x7835RE]
// Passive cooled
// 16 GB RAM
// 1 x Display
// 2 x Serial
// 2 x USB (Back side)
// 2 x G-LAN (Back side)
// 3 x M.2 Slot
// 9 to 36V

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: DFI ECX700-ASL

General information
SKU / Item NumberECX700-ASLECX700-ASL2020A-X33, ECX700-ASL2020A-X35
Product Basic Data
ManufacturerDFI
Product ID750-ECX7000-000G, 750-ECX7000-100G
System
ProcessorVertical SegmentEmbedded
SeriesIntel Amston Lake
NumberIntel Atom X7433RE, Intel Atom x7835RE
CPU cores4 Pce, 8 Pce
SocketBGA 1264
Max Turbo Frequency3,4 GHz, 3,6 GHz
Cache6 MB
Thermal Design Power (TDP)9 W, 12 W
ChipsetSoC (System on a Chip)
MemoryMemory TypeDDR5
DIMM data transfer rate4800 MT/s
Maximum expansion16 GB
Internal memory16 GB
StorageEmbedded MultiMedia Card (eMMC)64 GB
BIOSAMI SPI 256 Mbit
Power supply - InputEmbedded MultiMedia Card (eMMC) 64 GB
Extension
M.2Slot 1Key IDE
InterfaceCNVi (Connected Network Interface), PCIe ×1 (Gen 3), USB 2.0, Wi-Fi
Supported dimensions2230
Slot 2Key IDB
Interface4G/LTE, 5G / Storage Module, PCIe ×1 (Gen 3), USB 2.0, USB 3.0
Supported dimensions3042, 3052
Slot 3Key IDM
InterfacePCIe ×1 (Gen 3), SATA III
Supported dimensions2242, 2280
M.2 Key IDsB, E, M
StorageM.2
Network
G-LANControllerChipsetIntel I226IT PCIe (10/100/1000/2500 Mbps)
Quantity2 Pce
WirelessWi-FiProtocol802.11a/b/g/n/ac
BluetoothTypev5.1
Cellular NetworkNetwork4G, LTE
Network2x G-LAN, Bluetooth, Wi-Fi

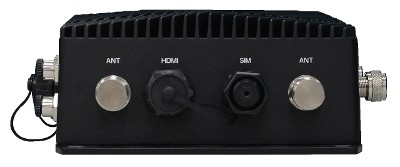

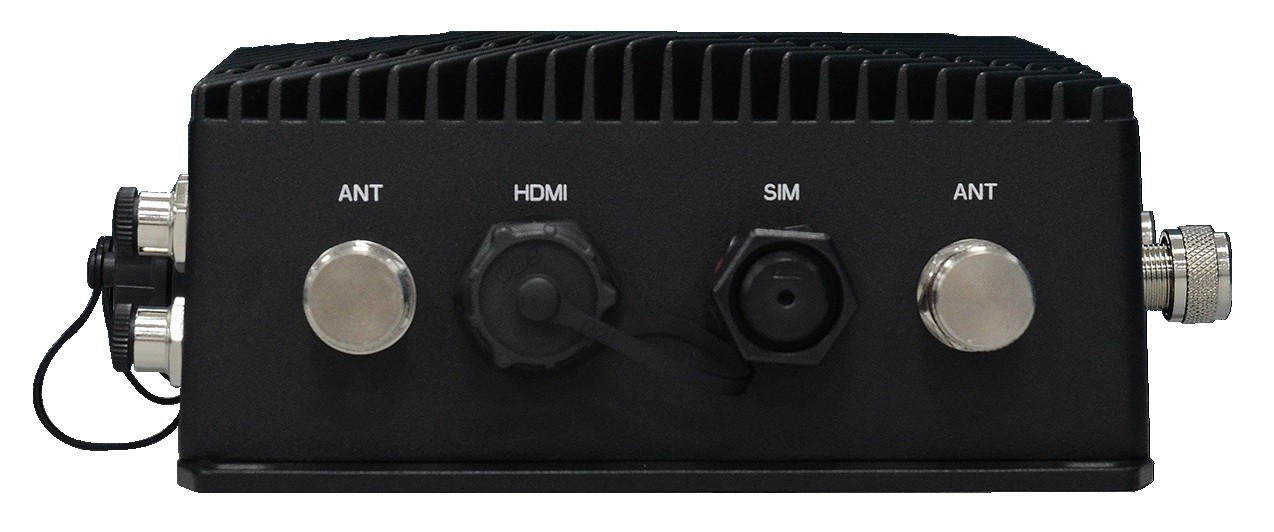

Externe I/O (Front Panel)
DisplayHDMI1 Pce
SIM card slot1 Pce

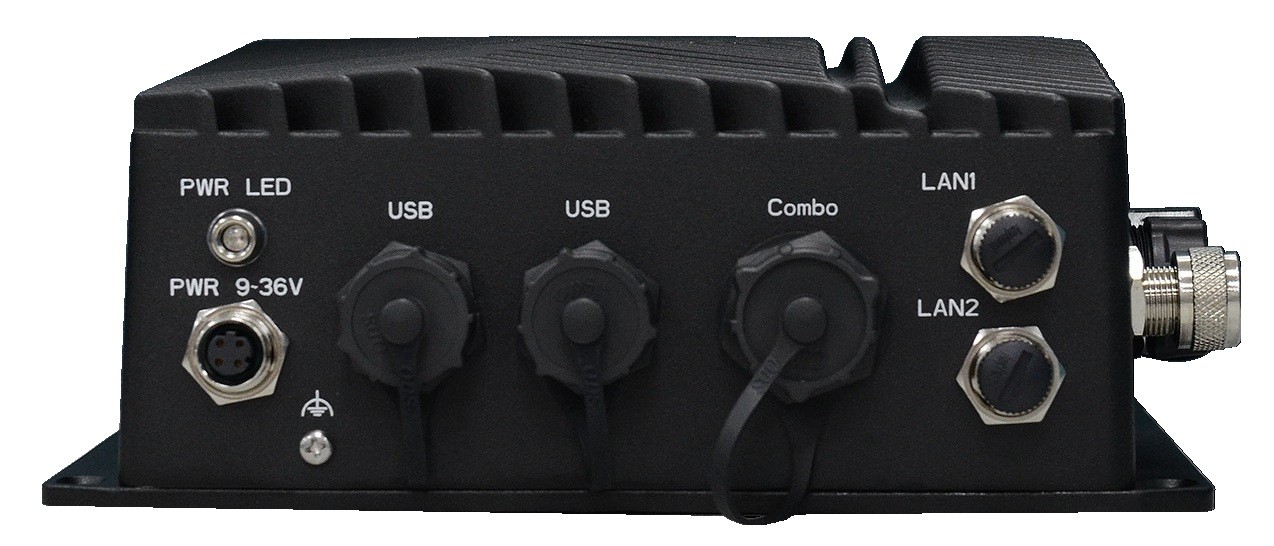

Externe I/O (Rear Panel)
EthernetM12 connectors2 Pce
SerialRS-232DB-92 Pce
USBUSB 3.2 (Gen 2)2 Pce
CAN busConnectorDB-9
piece2 Pce
Safety
Trusted Platform Module (TPM)v2.0
Power Supply
Typ (Input)DCWide RangeYes
Range9 to 36V
ConnectorM12
Power supply - InputDC: 9~36V
Cooling
ImplementationPassive
Mechanical / Environment
TemperatureOperation-40°C to 70°C
Storage-40°C to 85°C
Relative humidityOperation5 to 95%, non-condensing
DimensionsForm factorEmbedded System
IP RatingIP67
VibrationReference StandardIEC 68-2-64
ShockReference StandardIEC 68-2-27
Status indicatorsPower1 Pce

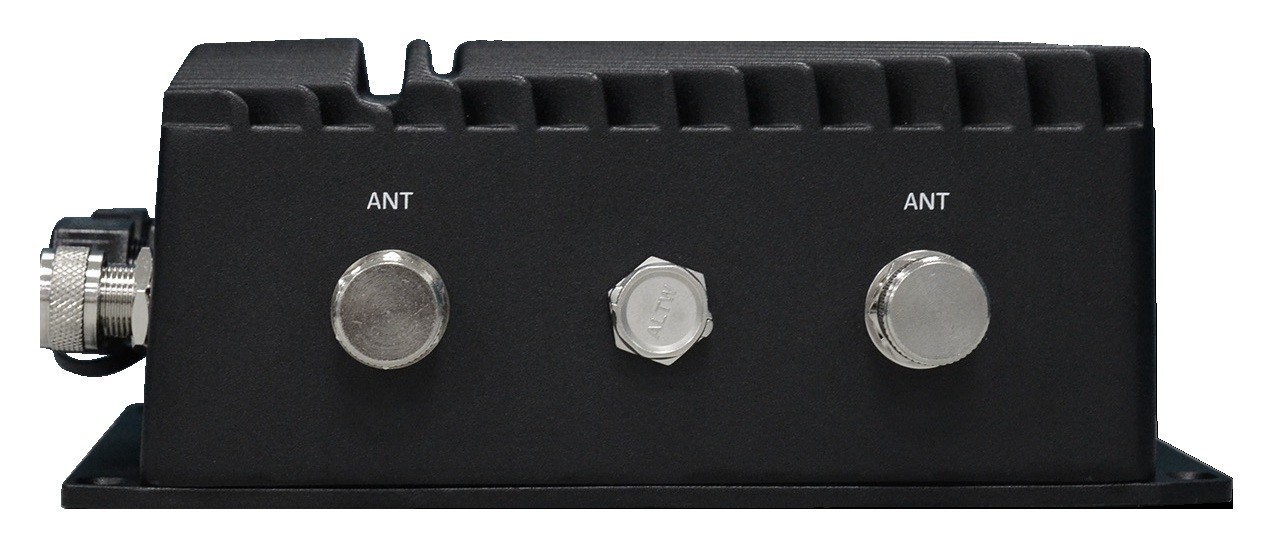

Antenna holes4 Pce
ColorSilver
Mounting optionWall Mount
OS / Software
Windows EmbeddedWindows 11 IoTis supported
LinuxDistributionLinux
Supported OSLinux, Windows Embedded
Certificates / Conformities
CEYes
FCCClass AYes
RoHS compliantYes
