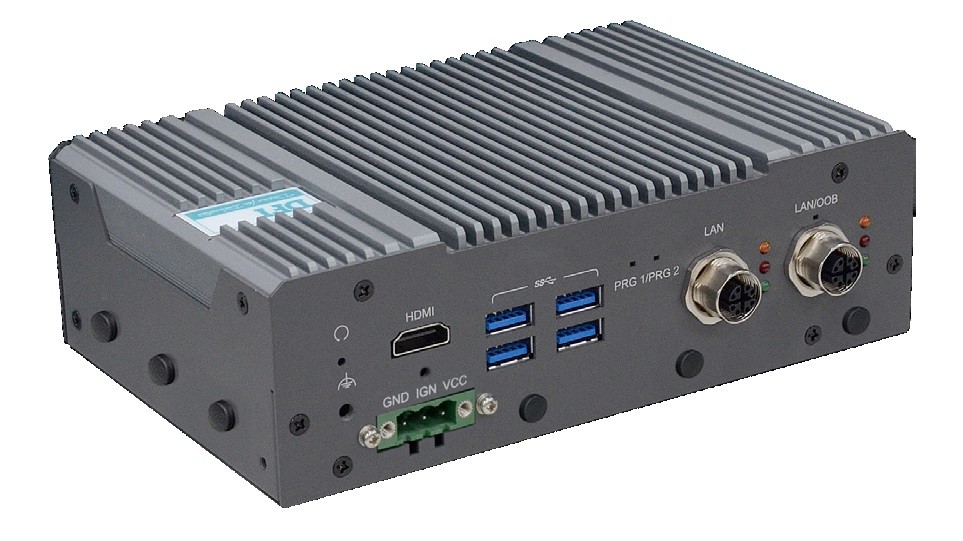

Vehicle (In-Vehicle) System
// Vehicle (In-Vehicle) System
// [Intel Atom X7211RE | Intel Atom X7433RE | Intel Atom x7835RE]
// Passive cooled
// 2 x Display
// 2 x Serial
// 4 x USB (Front page)
// 4 x G-LAN (Front page)
// 2 x Mini-PCIe
// 3 x M.2 Slot
// 9 to 36V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: DFI VC700-ASL
| General information | ||||
| SKU / Item Number | VC700-ASL | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Amston Lake | |||
| Number | Intel Atom X7211RE, Intel Atom X7433RE, Intel Atom x7835RE | |||
| CPU cores | 2 Pce, 4 Pce, 8 Pce | |||
| Socket | BGA 1264 | |||
| Max Turbo Frequency | 3,2 GHz, 3,4 GHz, 3,6 GHz | |||
| Cache | 6 MB | |||
| Thermal Design Power (TDP) | 6 W, 9 W, 12 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR5 | ||
| Frequency | 5200 MHz | |||
| Maximum expansion | 8 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 64 GB | ||
| BIOS | AMI SPI 64 Mbit | |||
| Power supply - Input | Embedded MultiMedia Card (eMMC) 64 GB | |||
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| Screens (Multi-display) | 2 displays | |||
| VGA | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| HDMI | Maximum resolution | 4096 x 2160 at 24 Hz | ||
| Version | 1.4b | |||
| Extension | ||||
| Mini-PCIe | Half building depth | Quantity | 1 Pce | |
| USB support | Yes | |||
| Full installation depth | Quantity | 1 Pce | ||
| USB support | Yes | |||
| PCIe Interfaces | 2x Mini-PCIe slots | |||
| M.2 | Slot 1 | Key ID | A, E | |
| Interface | PCIe ×1 (Gen 3), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | B | ||
| Interface | 4G/LTE, 5G / Storage Module, PCIe ×1 (Gen 3), USB 3.0 | |||
| Supported dimensions | 3042, 3052 | |||
| Slot 3 | Key ID | B + M | ||
| Interface | PCIe ×2, SATA III | |||
| Supported dimensions | 2242, 2280 | |||
| M.2 Key IDs | A, B, B + M, E | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Micro SIM | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210 PCIe (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||

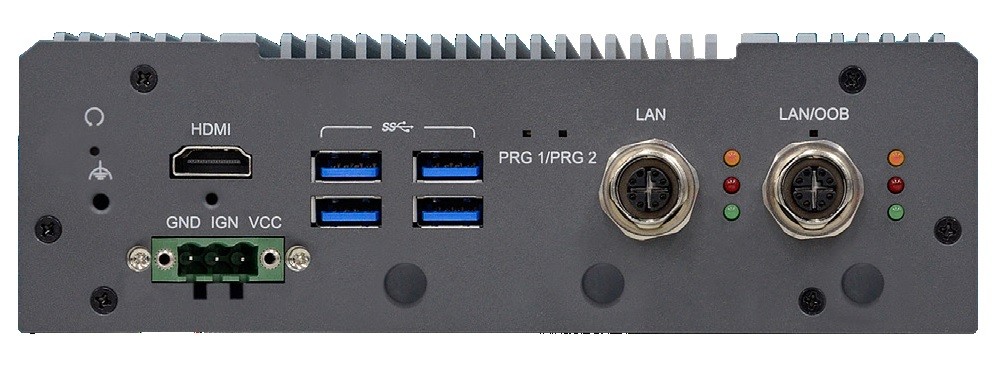

| Externe I/O (Front Panel) | ||||
| Display | HDMI | 1 Pce | ||
| Ethernet | RJ-45 | 1 Pce | ||
| RJ-45 with OOB | 1 Pce | |||
| M12 connectors | 2 Pce | |||
| USB | USB 3.2 (Gen 1) | 4 Pce | ||

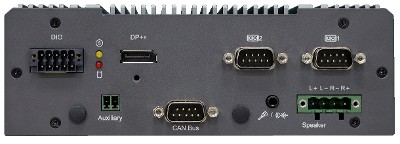

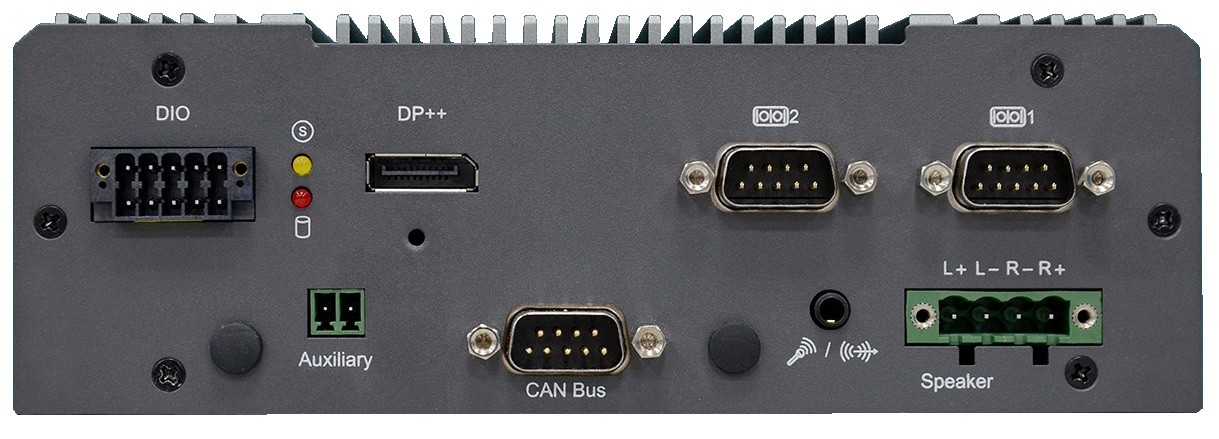

| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| Audio | Speaker Out | 1 Pce | ||
| S/PDIF | 1 Pce | |||
| Combo Jack | 1 Pce | |||
| Serial | RS-232 / 422 / 485 | DB-9 | 2 Pce | |
| Digital I/O | Quantity | 1 Pce | ||
| Bits | 8-bit | |||
| Connector | DB-15 | |||
| CAN bus | Connector | DB-9 | ||
| piece | 2 Pce | |||
| Protocol | CAN 2.0B, SAE J1939 | |||
| Sensor | ||||
| 3D sensor | 3D Accelerometer, 3D Gyroscope, 3D Magnetometer | |||
| GPS module | u-blox NEO-M9N | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 9 to 36V | |||
| Connector | 3-pin terminal connector | |||
| Ignition (IGN) | Yes | |||
| Power supply - Input | DC: 9~36V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -40°C to 70°C | ||
| Storage | -40°C to 85°C | |||
| Dimensions | Form factor | Vehicle (In-Vehicle) System | ||
| Width | 182,4 mm | |||
| Deep | 118,4 mm | |||
| Height | 56,5 mm | |||
| Vibration | Reference Standard | MIL-STD-810G Method 514.6 | ||
| Shock | Reference Standard | MIL-STD-810G Method 516.6 Procedure I | ||
| Controls | Reset | 1 Pce | ||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| System Status | 2 Pce | |||
| Antenna holes | 7 Pce | |||
| Color | Dark grey | |||
| Material | Aluminum, Steel | |||
| Mounting option | Wall Mount | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Windows 11 | Supported | |||
| Linux | Distribution | Ubuntu 22.04 | ||
| Supported OS | Linux, Windows | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Additional certificates / compliance approvals | E-mark, ITxPT, UKCA | |||
| RoHS compliant | Yes | |||
