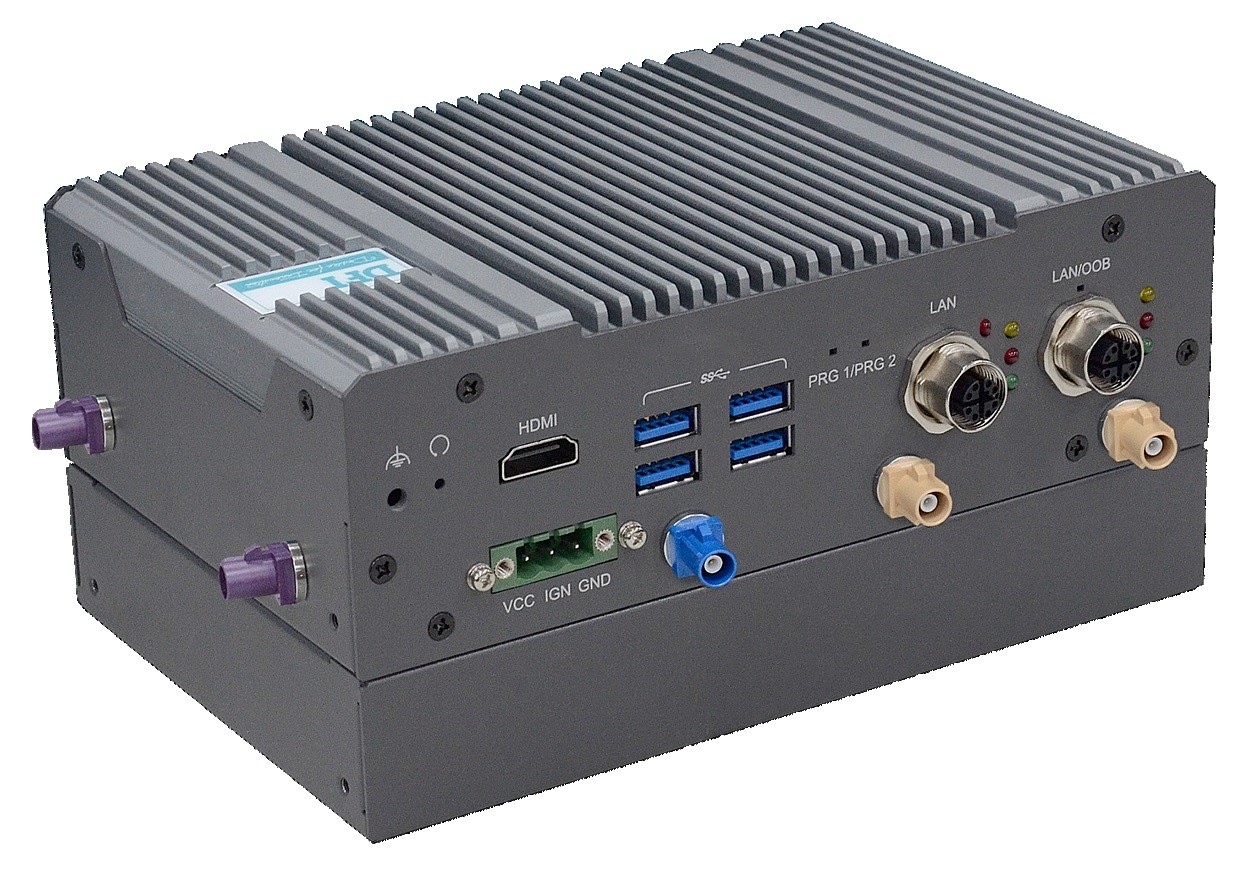

Fahrzeug (In-Vehicle) System
// Fahrzeug (In-Vehicle) System
// [Intel Atom X7211RE | Intel Atom X7433RE | Intel Atom x7835RE]
// Passiv gekühlt
// 2 x Anzeige
// 2 x Seriell
// 4 x USB (Frontseite)
// 4 x G-LAN (Frontseite)
// 2 x Mini-PCIe
// 3 x M.2 Slot
// 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: DFI VC700-ASL
Allgemein | ||||
SKU / Artikelnummer | VC700-ASL | |||
Produktgrunddaten | ||||
Hersteller | DFI | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Amston Lake | |||
Nummer | Intel Atom X7211RE, Intel Atom X7433RE, Intel Atom x7835RE | |||
CPU Kerne | 2 St, 4 St, 8 St | |||
Sockel | BGA 1264 | |||
Max. Turbo-Taktfrequenz | 3,2 GHz, 3,4 GHz, 3,6 GHz | |||
Cache | 6 MB | |||
Thermal Design Power (TDP) | 6 W, 9 W, 12 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Memory Type | DDR5 | ||
Frequenz | 5200 MHz | |||
Maximaler Ausbau | 8 GB | |||
Storage | Embedded MultiMedia Card (eMMC) | 64 GB | ||
BIOS | AMI SPI 64 Mbit | |||
Storage | Embedded MultiMedia Card (eMMC) 64 GB | |||
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
Bildschirme (Multidisplay) | 2 Displays | |||
VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
HDMI | Maximale Auflösung | 4096 x 2160 bei 24 Hz | ||
Version | 1.4b | |||
Erweiterung | ||||
Mini-PCIe | Halbe Bautiefe | Anzahl | 1 St | |
USB Unterstützung | Ja | |||
Volle Bautiefe | Anzahl | 1 St | ||
USB Unterstützung | Ja | |||
PCIe Schnittstellen | 2x Mini-PCIe | |||
M.2 | Slot 1 | Key ID | A, E | |
Interface | PCIe ×1 (Gen. 3), USB 2.0 | |||
Unterstütze Abmaße | 2230 | |||
Slot 2 | Key ID | B | ||
Interface | 4G/LTE, 5G / Storage Module, PCIe ×1 (Gen. 3), USB 3.0 | |||
Unterstütze Abmaße | 3042, 3052 | |||
Slot 3 | Key ID | B + M | ||
Interface | PCIe ×2, SATA III | |||
Unterstütze Abmaße | 2242, 2280 | |||
M.2 Key IDs | A, B, B + M, E | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Micro SIM | |||
Storage | M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I210 PCIe (10/100/1000 Mbps) | |
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||

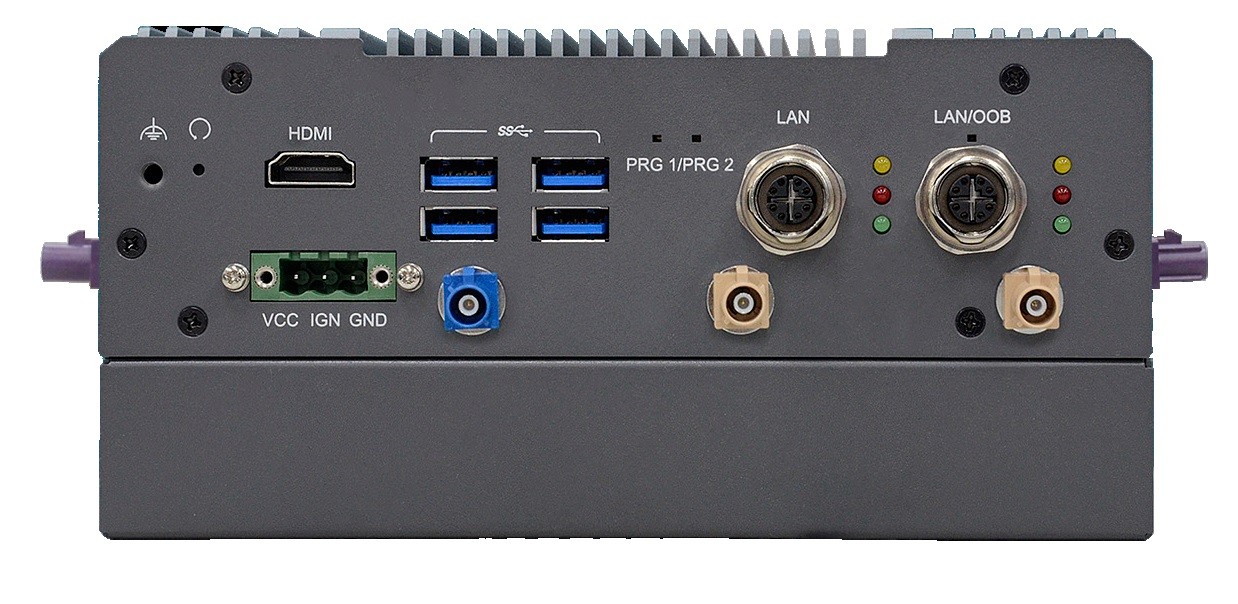

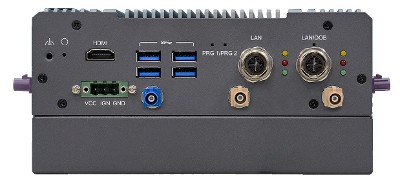

Externe I/O (Frontseite) | ||||
Anzeige | HDMI | 1 St | ||
Ethernet | RJ-45 | 1 St | ||
RJ-45 mit OOB | 1 St | |||
M12 Steckverbinder | 2 St | |||
USB | USB v3.2 (Gen 1) | 4 St | ||

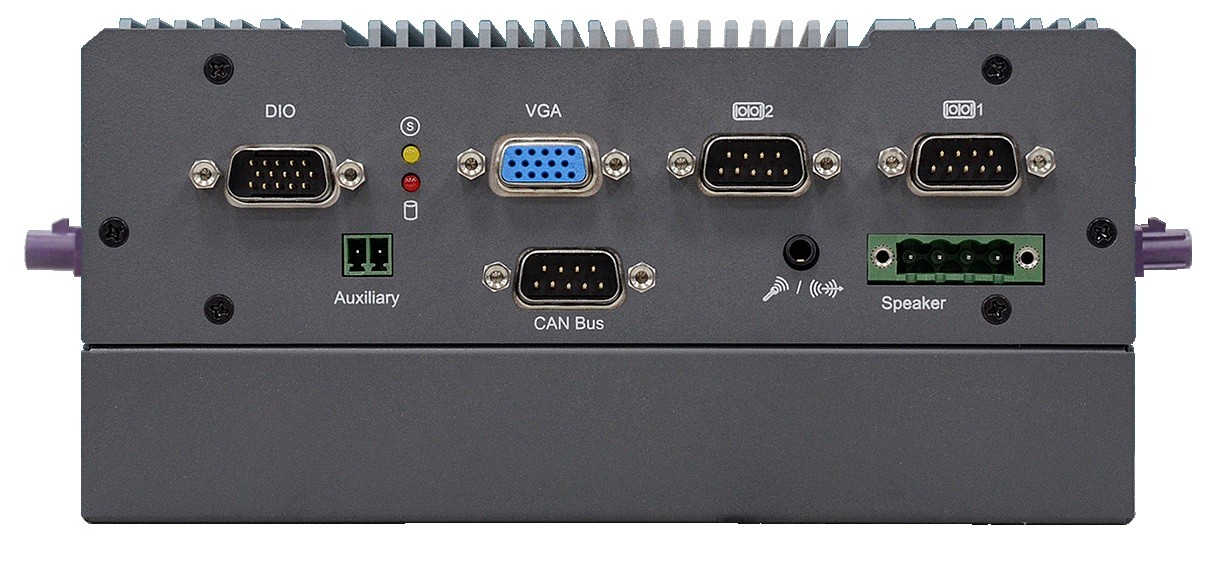

Externe I/O (Rückseite) | ||||
Anzeige | VGA | 1 St | ||
Audio | Speaker-Out | 1 St | ||
S/PDIF | 1 St | |||
Combo Jack | 1 St | |||
Seriell | RS-232 / 422 / 485 | DB-9 | 2 St | |
Digital I/O | Anzahl | 1 St | ||
Bits | 8-Bit | |||
Anschluss | DB-15 | |||
CAN Bus | Anschluss | DB-9 | ||
Stück | 2 St | |||
Protokoll | CAN 2.0B, SAE J1939 | |||
Sensor | ||||
3D Sensor | 3D Accelerometer, 3D Gyroscope, 3D Magnetometer | |||
GPS Module | u-blox NEO-M9N | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~36V | |||
Anschluss | 3 Pin Terminal Stecker | |||
Ignition (IGN) | Ja | |||
Stromversorgung - Eingang | DC: 9~36V | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -40° bis 70°C | ||
Lagerung | -40° bis 85°C | |||
Abmaße | Formfaktor | Fahrzeug (In-Vehicle) System | ||
Breite | 182,4 mm | |||
Tiefe | 118,4 mm | |||
Höhe | 56,5 mm | |||
Vibration | Referenz Standard | MIL-STD-810G Method 514.6 | ||
Schock | Referenz Standard | MIL-STD-810G Method 516.6 Procedure I | ||
Bedienelemente | Reset | 1 St | ||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
System Status | 2 St | |||
Antennenlöcher | 7 St | |||
Farbe | Dunkel Grau | |||
Material | Aluminium, Stahl | |||
Montageoption | Wandmontage | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Windows 11 | Wird unterstützt | |||
Linux | Distribution | Ubuntu 22.04 | ||
Unterstützte BS | Linux, Windows | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
Weitere Zertifikate / Konformitäten | E-Mark, ITxPT, UKCA | |||
RoHS konform | Ja |
