PICMG 1.3 (PCIe/PCI Bus)
// PICMG 1.3 Industrial Mainboards
// LGA 1700 (H6)
// [Intel H610E | Intel R680E]
// 288-pin DDR5 DIMM
// 2 x G-LAN (Back side)
// 2 x USB (Back side)
// [2 | 6] x USB (internal)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply ATX
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

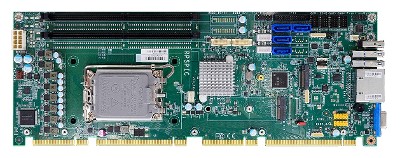

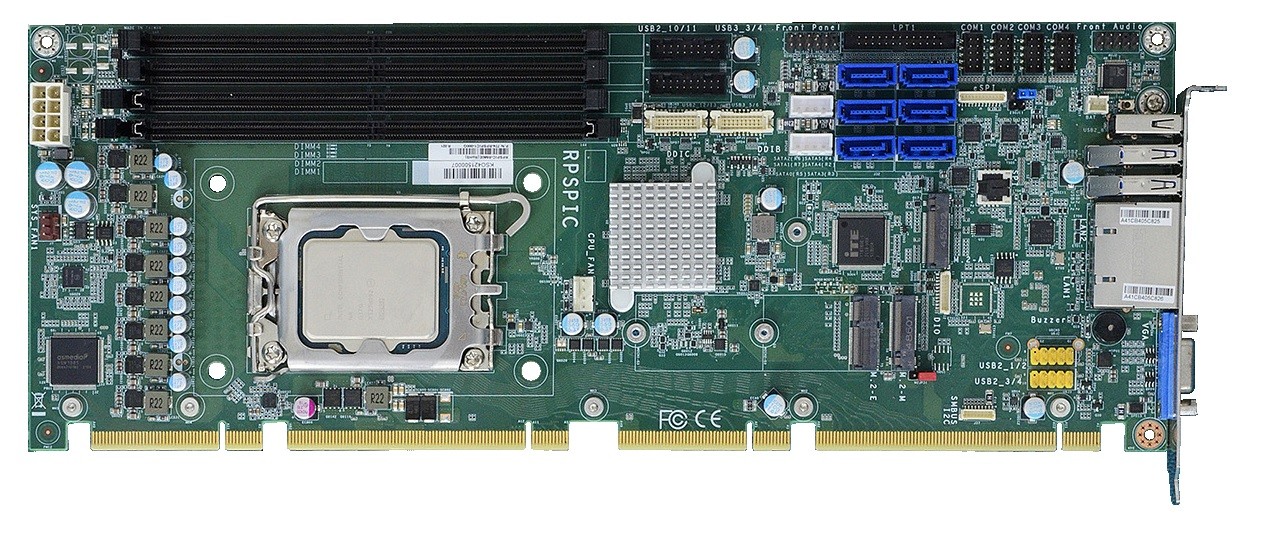

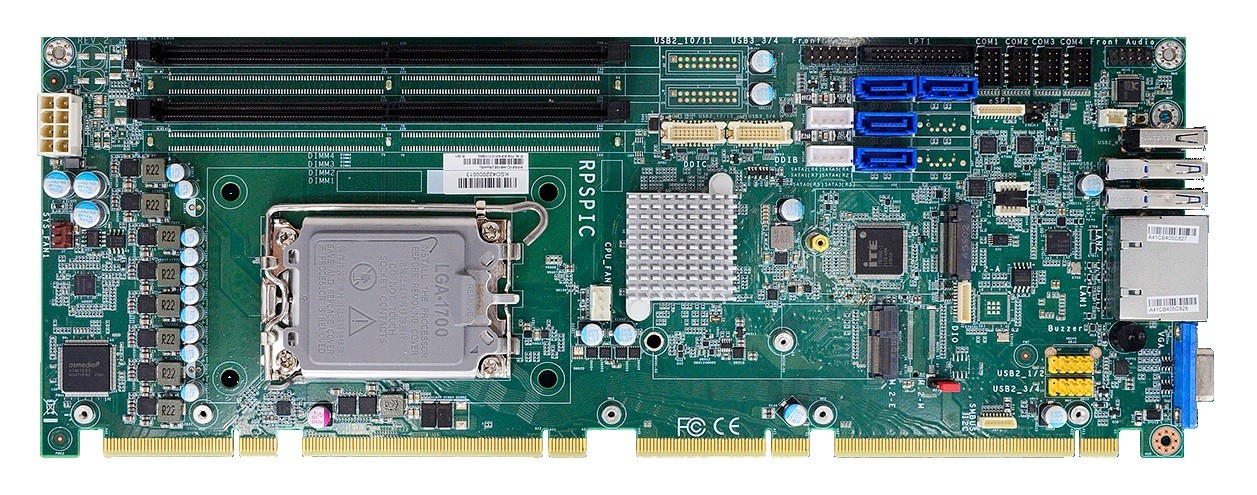

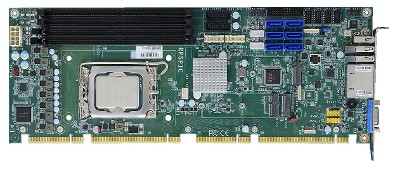

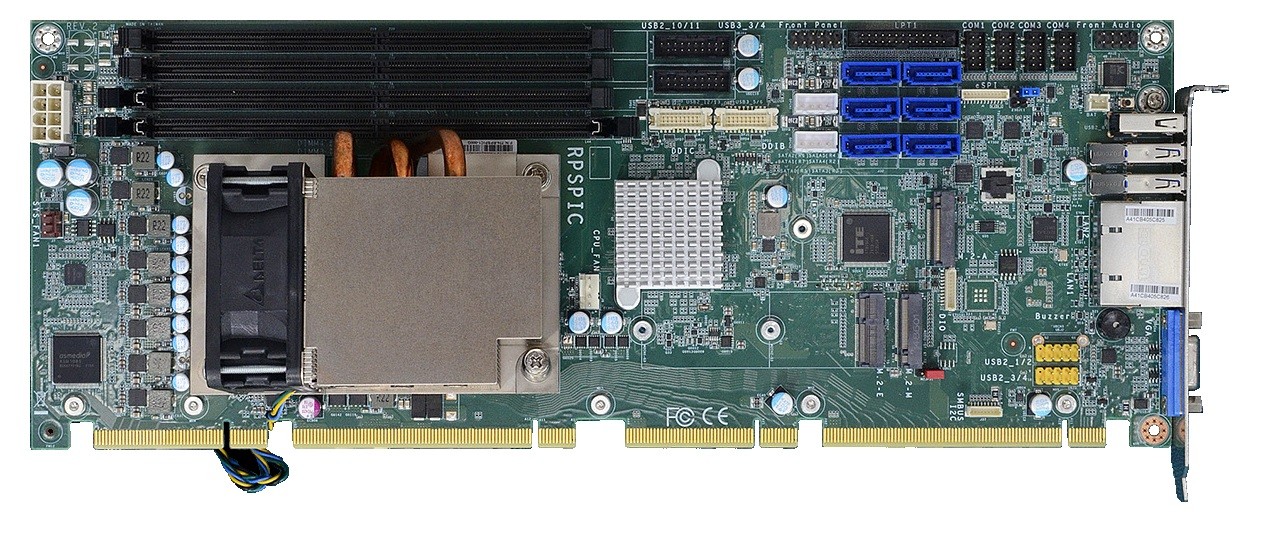

Basic Module: DFI RPSPIC
| General information | ||||
| SKU / Item Number | RPSPIC | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| Product ID | 770-PICPIC1-000G, 770-PICPIC1-100G | |||
| System | ||||
| Processor | Series | Intel Alder Lake / Raptor Lake | ||
| Socket | LGA 1700 (H6) | |||
| Thermal Design Power (TDP) | 65 W | |||
| Chipset | Intel H610E, Intel R680E | |||
| Memory | Structure | 288-pin DDR5 DIMM | ||
| Memory Type | DDR5 | |||
| Frequency | 4800 MHz | |||
| Slots | 2 Pce, 4 Pce | |||
| Maximum expansion | 96 GB, 128 GB | |||
| ECC (Error-Correcting Code) | is supported, not supported | |||
| BIOS | AMI SPI 256 Mbit | |||
| I/O controller | Controller 1 | I/O controller | Fintek F81439 | |
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| Screens (Multi-display) | 3 displays | |||
| VGA | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| DVI | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| HDMI | Maximum resolution | 1920 x 1080 at 60 Hz | ||
| DisplayPort | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | CNVi (Connected Network Interface), PCIe ×1 (Gen 3), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | M | ||
| Interface | NVMe, PCIe ×4 (Gen 4) | |||
| Supported dimensions | 2280 | |||
| Slot 3 | Key ID | A | ||
| Interface | OOB (Out Of Box) | |||
| Supported dimensions | 3042 | |||
| M.2 Key IDs | A, E | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps), Intel I226V PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||

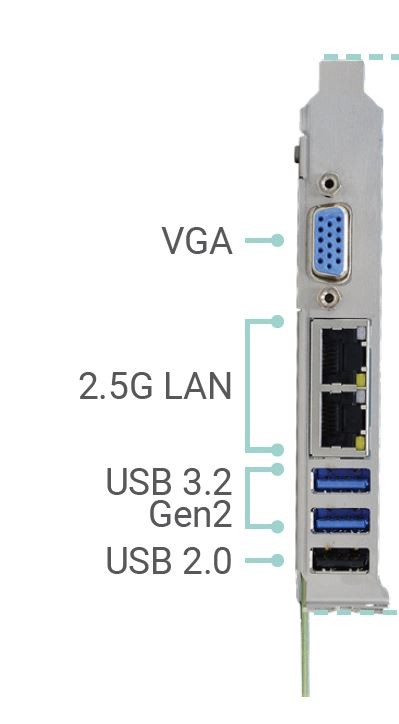

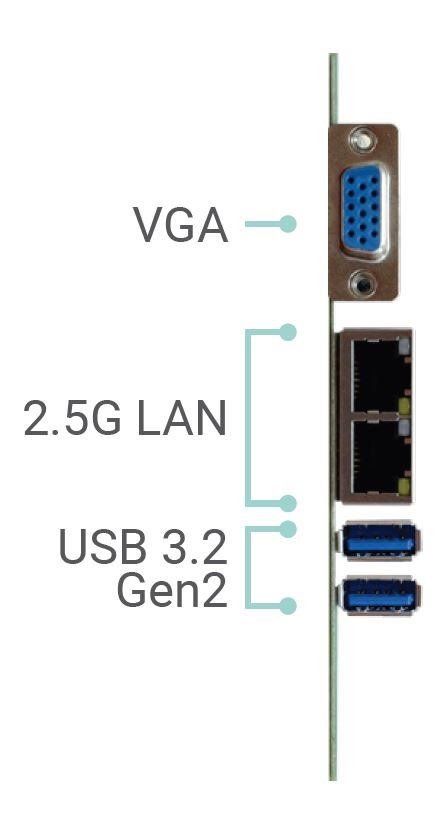

| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce, - | ||
| DVI | DVI-I Signal | 1 Pce, - | ||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.2 (Gen 2) | 2 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 2 Pce | |
| USB 3.2 | Key-A Header (20-pin) | 4 Pce, - | ||
| PS/2 | pin header | 1 Pce | ||
| Serial | RS-232 | Ports (2.00 mm pitch) | 2 Pce | |
| RS-232 / 422 / 485 | Ports (2.00 mm pitch) | 2 Pce | ||
| Parallel | Ports (2.54 mm pitch) | 1 Pce | ||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| Serial Peripheral Interface (SPI) | 1 Pce | |||
| Audio | Connector | 2.00 mm pitch | ||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 4 Pce, 6 Pce | ||
| RAID support | RAID 0/1/5/10 | is supported | ||
| Power connection (onboard) | 2 Pce | |||
| RAID support | RAID 0/1/5/10 | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | dTPM 2.0 (Hardware) | |||
| Power Supply | ||||
| Typ (Input) | ATX | Connector | 8-pin ATX (12V DC) | |
| Power supply - Input | ATX: 8-pin ATX (12V DC) | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Windows 11 IoT | is supported | |||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows Embedded | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -5° to 65°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | PICMG 1.3 | ||
| Width | 338 mm | |||
| Deep | 126,39 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
