PICMG 1.3 (PCIe/PCI Bus)
// PICMG 1.3 Industrie-Mainboards
// LGA 1700 (H6)
// [Intel H610E | Intel R680E]
// 288 Pin DIMM DDR5
// 2 x G-LAN (Back side)
// 2 x USB (Back side)
// [2 | 6] x USB (internal)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

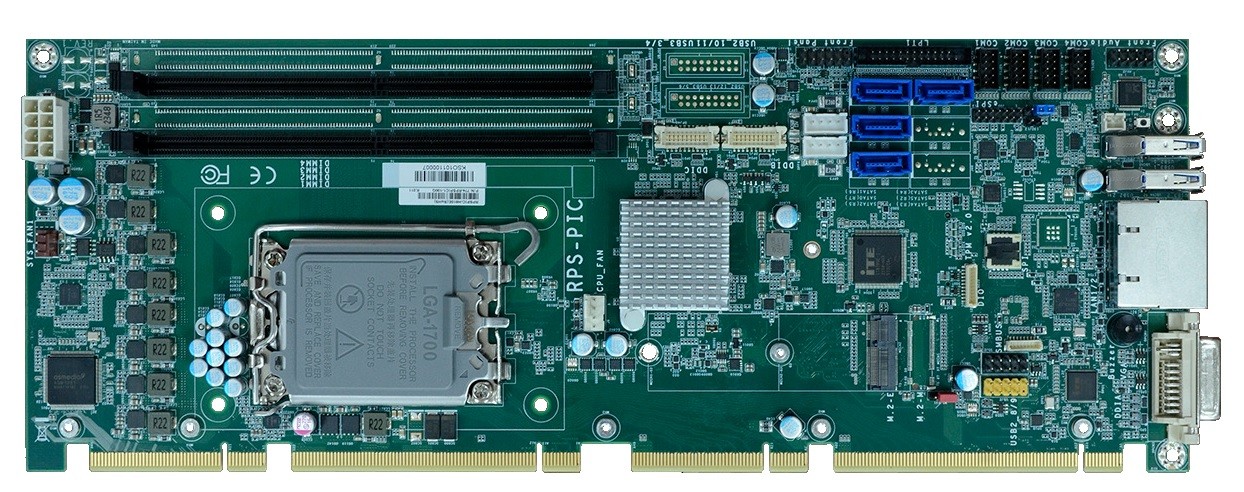

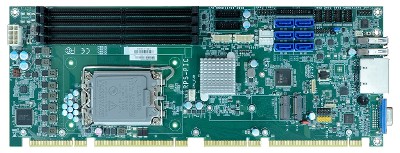

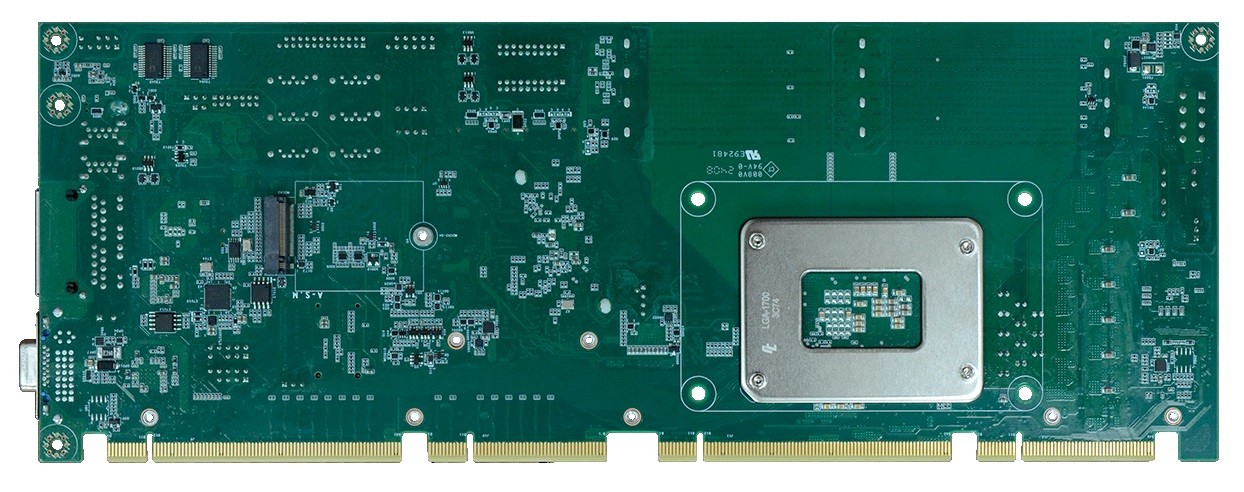

Basismodul: DFI RPSPIC
| Allgemein | ||||
| SKU / Artikelnummer | RPSPIC | |||
| Produktgrunddaten | ||||
| Hersteller | DFI | |||
| Produkt-ID | 770-PICPIC1-000G, 770-PICPIC1-100G | |||
| System | ||||
| Prozessor | Serie | Intel Alder Lake / Raptor Lake | ||
| Sockel | LGA 1700 (H6) | |||
| Thermal Design Power (TDP) | 65 W | |||
| Chipsatz | Intel H610E, Intel R680E | |||
| Speicher | Aufbau | 288 Pin DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| Frequenz | 4800 MHz | |||
| Steckplätze | 2 St, 4 St | |||
| Maximaler Ausbau | 96 GB, 128 GB | |||
| ECC | wird nicht unterstützt, wird unterstützt | |||
| BIOS | AMI SPI 256 Mbit | |||
| I/O Controller | Controller 1 | I/O Controller | Fintek F81439 | |
| Grafik | ||||
| Prozessor | Intel UHD Graphics | |||
| Bildschirme (Multidisplay) | 3 Displays | |||
| VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| DVI | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| HDMI | Maximale Auflösung | 1920 x 1080 bei 60 Hz | ||
| Displayport | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| Erweiterung | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | CNVi, PCIe ×1 (Gen. 3), USB 2.0 | |||
| Unterstütze Abmaße | 2230 | |||
| Slot 2 | Key ID | M | ||
| Interface | NVMe, PCIe ×4 (Gen. 4) | |||
| Unterstütze Abmaße | 2280 | |||
| Slot 3 | Key ID | A | ||
| Interface | OOB | |||
| Unterstütze Abmaße | 3042 | |||
| M.2 Key IDs | A, E | |||
| Audio | ||||
| Chipsatz | Realtek ALC888S-VD2-GR | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I226LM PCIe (10/100/1000/2500 Mbps), Intel I226V PCIe (10/100/1000/2500 Mbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
| Anzahl | 1 St | |||
| Netzwerk | 2x G-LAN | |||

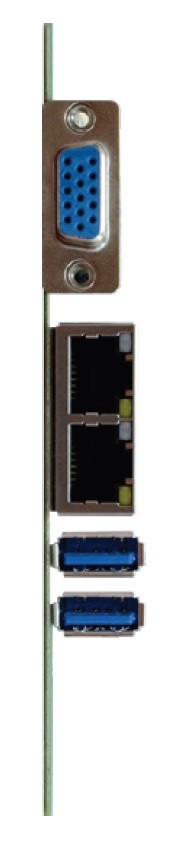

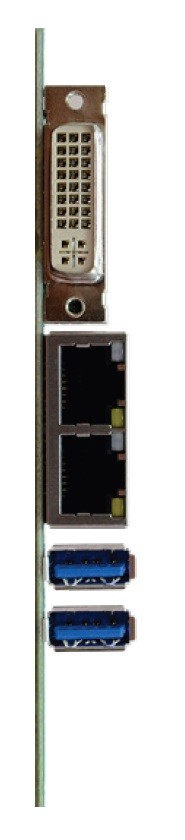

| Externe I/O (Rückseite) | ||||
| Anzeige | VGA | 1 St, - | ||
| DVI | DVI-I Signal | 1 St, - | ||
| Ethernet | RJ-45 | 2 St | ||
| USB | USB v3.2 (Gen 2) | 2 St | ||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.00 mm Pitch) | 2 St | |
| USB v3.2 | Key-A Header (20-Pin) | 4 St, - | ||
| PS/2 | Stiftleiste | 1 St | ||
| Seriell | RS-232 | Ports (2.00 mm Pitch) | 2 St | |
| RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 2 St | ||
| Parallel | Ports (2.54 mm Pitch) | 1 St | ||
| Digital I/O | Bits | 8-Bit | 1 St | |
| SMBus | 1 St | |||
| Serial Peripheral Interface (SPI) | 1 St | |||
| Audio | Anschluss | 2.00 mm Pitch | ||
| Line-Out | 1 St | |||
| Mic-In | 1 St | |||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 4 St, 6 St | ||
| Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
| Stromanschluss (onboard) | 2 St | |||
| RAID Unterstützung | RAID 0/1/5/10 | |||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | dTPM 2.0 (Hardware) | |||
| Stromversorgung | ||||
| Typ (Eingang) | ATX | Anschluss | 8-Pin ATX (12V DC) | |
| Stromversorgung - Eingang | ATX: 8-Pin ATX (12V DC) | |||
| Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
| Betriebssysteme / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
| Windows 11 IoT | wird unterstützt | |||
| Linux | Distribution | Linux | ||
| Unterstützte BS | Linux, Windows Embedded | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | -5° bis 65°C | ||
| Lagerung | -40° bis 85°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
| Abmaße | Formfaktor | PICMG 1.3 | ||
| Breite | 338 mm | |||
| Tiefe | 126,39 mm | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| RoHS konform | Ja | |||
