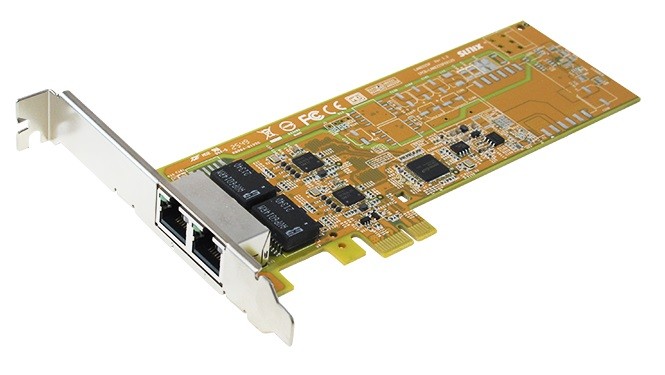

Sunix LAN2225

Network Interface Cards

PRODUCT FEATURES

// Network Interface Cards
// 2 x G-LAN

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: Sunix LAN2225

General information
	SKU / Item Number			LAN2225
Product Basic Data
	Manufacturer			Sunix
Network
	G-LAN	Controller	Chipset	Intel I226LM PCIe (10/100/1000/2500 Mbps)
			Quantity	2 Pce
	Network			2x G-LAN
External I/O
	Ethernet	RJ-45		2 Pce
OS / Software
	Windows	Windows 10 (64-bit)		is supported
		Windows 11		Supported
	Linux	Distribution		Linux
		Kernel		5.x
	Supported OS			Windows, Linux
Mechanical / Environment
	Temperature	Operation		0° to 60°C
		Storage		-10°C to 85°C
	Relative humidity	Operation		5 to 85%, non-condensing
		Storage		0 to 80%, non-condensing
	Dimensions	Interface		PCI Express 2.0 x 1
		Width		1,6 mm
		Deep		170 mm
		Height		68,5 mm
Certificates / Conformities
	CE			Yes
	FCC	Class A		Yes
	Additional certificates / compliance approvals			BSMI, VCCI
	RoHS compliant			Yes
	IEEE Ethernet and Networking Standards			IEEE 802.1Q for VLAN tagging, IEEE 802.3 for 10BASE-T Ethernet, IEEE 802.3ab for 1000BASE-T Gigabit Ethernet, IEEE 802.3ad for Link Aggregation (LACP), IEEE 802.3bz for 2.5G/5GBASE-T Ethernet, IEEE 802.3u for 100BASE-TX Fast Ethernet, IEEE 802.3x for flow control
