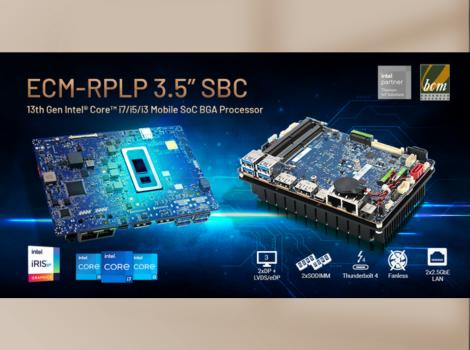

ECM-RPLP 3,5" SBC with 13th Gen Intel® Core™ Mobile Processor

BCM, USA, 18.07.2023 - BCM introduces its ECM-RPLP, a palm size 3,5" SBC which is designed based on the 13th Gen Intel® Core™ mobile processor platform. The board is a cost effective, low power platform delivering features for performance(28W)/modern (15W) thin and light IoT Edge and AI computing applications. ODM services are available for applications that require 14-Core performance, the Raptor Lake H (45W) series.

13th Gen Intel® Core™ i7/i5/i3 scalable SoC Processor Onboard, formerly Raptor Lake U (15W) and P (28W) Platform

• Intel® Core™ i7-1365UE (15W)
• Intel® Core™ i5-1345UE (15W)
• Intel® Core™ i3-1315UE (15W)
• Intel® Core™ i7-1370PE (28W)
• Intel® Core™ i5-1350PE (28W)
• Intel® Core™ i3-1320PE (28W)

ECM-RPLP Hardware Features

• The Raptor Lake U-series provides up to 15W processor base power. P-series up to 28W
• Fanless operation with the 15W processor
• Select Core™ i7/i5 processors are vPro Eligible with Intel® Active Management Technology
• Select Core™ i7/i5 processors provide integrated Intel® Iris Xe GPU Graphics Engine for Media, Graphics, Display, and light-AI applications Integrates hardware-accelerated AI with Intel® Deep Learning Boost (Intel® DL Boot)
• Supports DDR5 4800MHz memory up to 64GB
• Supports Intel® Wi-Fi 6E and Bluetooth via M.2 modules
• Supports 3 independent displays: 2 x DP and LVDS or eDP (optional)
• Integrated USB Type C Thunderbolt 4
• 2 x 2.5 GbE LAN Ports
• 3 x M.2 sockets: M.2 E-Key CNVi, M.2 M-Key NVMe, M.2 B-Key Nano SIM Card Slot for cellular communication
• 4 x USB 3.2, 3 x USB 2.0, 4 x COM Ports, 1 x SATA III
• Available in NUC-type embedded system chassis with I/O flexibility of maximizing USB capability by adding additional USB ports

Market Applications

The BCM ECM-RPLP 3,5" offers a range of hardware features that make it well-suited for a variety of applications including Retail, Banking, Education, Hospitality, Healthcare, Vision, and Security.
