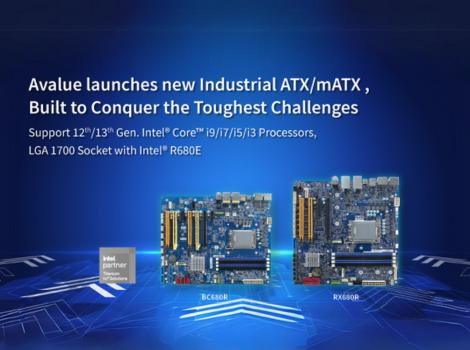

Avalue launches new ATX/mATX motherboards, Built to Conquer the Toughest Challenges

Avalue, Taipei, Taiwan, 25.01.2024 - Avalue Technology Inc. (TAIEX: 3479-TW), a global industrial PC solutions provider and Titanium member of the Intel® Internet of Things Solutions Alliance, is proud to announce the launch of the BC680R ATX motherboard and the RX680R Mirco ATX motherboard. These motherboards are equipped with Intel® 12th /13th generation Alder Lake and Raptor Lake platforms and can be used with Intel® Core™ i9/i7/i5/i3/Pentium or Celeron processors depending on the application requirements. Designed with high-speed transmission, multiple expansion options, and a wide temperature range, these motherboards offer the most efficient way to build a solution that delivers both performance and stability in the harsh environment of industrial applications. They perfectly meet the upgrade needs of industrial manufacturing, automotive electronics, military, medical, and other fields.

Both the BC680R and RX680R feature the Intel® R680E chipset with the LGA 1700 socket, supporting processors up to 65W thermal design power. Users can choose from different performance Intel® Core™ processors depending on the industrial application requirements. The motherboards feature multiple high-speed transmission interfaces, including 2.5G Ethernet interfaces, USB 3.2 Gen 2, multiple PCIe and M.2 NVMe slots, providing high flexibility for expansion. They can operate stably in environments ranging from 0 to 60 degrees Celsius, meeting the requirements of high-performance computing and data storage solutions.

BC680R: ATX motherboard with efficient quad independent displays to enhance data-intensive applications

The BC680R offers rich interface expansion and supports up to 128GB DDR5-4400MHz memory with ECC memory slots for efficient and stable system operation. It provides 4 SATA III or 2 M.2 NVMe SSD slots, increasing storage configuration flexibility. For networking, it offers two 2.5G network and M.2 CNVi slots for high-speed data transfer to optimize workload efficiency. In addition, the BC680R can drive four displays simultaneously, including 2 HDMI and 2 DP++ display output interfaces, providing high-resolution 4K@60Hz display effects. It meets the needs of hassle-free industry upgrades and flexible expansion, while ensuring a good user experience with efficient performance.

RX680R: Micro ATX motherboard with perfectly balanced performance space, suitable for diverse industrial applications

The RX680R integrates a variety of expansion interfaces on its compact motherboard, achieving a harmonious balance between performance and space. It features 4 x DDR5-4400MHz memory slots with a maximum capacity of 128GB, supporting ECC specifications for reliable system performance and stability. In addition to its outstanding computing capabilities, the RX680R supports a wide range of I/O interfaces, with up to four independent DP++ display outputs and an LVDS interface for embedded displays. This flexibility in a limited space makes it ideal for maximizing application efficiency.

The BC680R and RX680R both support multiple interface expansions, a wide-temperature design that delivers powerful performance for demanding environmental applications, and full expansion capabilities without space constraints. Enhanced data security is provided by Trusted Platform Module (TPM) 2.0 technology, offering more choices for industrial applications and supporting the upgrade to industrial intelligence.

BC680R Highlight Features

• LGA1700 socket supports 12th /13th generation Intel® Core™ i9/i7/i5/i3, Pentium, Celeron processors, up to 65W
• Intel® R680E chipset
• 4 x DDR5 4400 U-DIMM slots (up to 128GB ECC memory)
• 2 HDMI, 2 DP++ (up to 4 independent displays)
• 2 x Intel® I225LM 2.5G Gigabit Ethernet ports
• Equipped with Realtek ALC888S audio chip, 6W x 2 stereo audio amplifiers
• 2 x M.2 Key M slots for 2242/2280/22110, 1 x M.2 Key E2230 slot
• 1 x Gen5 PCIe x16, 2 x Gen4 PCIe x4, 1 x Gen3 PCIe x4
• 1 x Gen3 PCIe x1, 2 x Gen3 PCIe x1 Open End
• 1 x USB 3.2 Gen2 x 2 Type-C, 6 x USB 3.2 Gen2 x1, 2 x USB 3.2 Gen2 x1 and 8 USB 2.0 through pin headers
• 1 x RS232/RS422/485, 5 RS232 serial communication ports
• 1 x 8-bit GPIO
• Built-in Infineon TPM 2.0 security chip
• Supports Line-out, Mic-in, and front audio pin headers
• ATX Power

RX680R Highlight Features

• LGA1700 socket supports 12th /13th generation Intel® Core™ i9/i7/i5/i3, Pentium, Celeron processors, up to 65W
• Intel® R680E chipset
• 4 x DDR5 4400 U-DIMM slots (up to 128GB ECC memory)
• 4 x DP++ and 1 LVDS (up to 4 independent displays)
• 2 x Intel® I225LM 2.5G Gigabit Ethernet ports
• Equipped with Realtek ALC888S audio chip, 6W x 2 stereo audio amplifiers
• 2 x M.2 Key M slots for 2242/2280/22110, 1 x M.2 Key E slot for 2230
• 1 x Gen5 PCIe x 16, 2 x Gen4 PCIe x 4, 1 x Gen3 PCIe x 4
• 1 x USB 3.2 Gen2 x 2 Type-C, 6 x USB 3.2 Gen2 x 1, 2 x USB 3.2 Gen2 x 1, and 8 USB 2.0 through pin headers
• 1 x RS232/RS422/485, 5 x RS232 serial communication ports
• 1 x 8-bit GPIO
• Built-in Infineon TPM 2.0 security chip
• Supports Line-out, Mic-in, and front audio pin headers
• ATX Power
