BCM OFT10W-3455J 10.1 inch Open Frame Panel PC In Stock for Shipping

BCM, USA, 03.08.2022 - The OFT10W-3455J is BCM’s newest Gen 4 open frame tablet (OFT). It is a plug-in and play, all-in-one solution which includes a 10.1-inch PCAP touch screen, built with Intel® Celeron Quad-core J3455 processor onboard, 4GB RAM, 32GB eMMC for storage, Wi-Fi module supporting Intel® 802.11 ac/b/g/n and Bluetooth 5.0. Certification includes CE and FCC Class B. Unlike the previous OFT generations, storage and memory are upgradeable on this 4th generation model.

Other Product Design Features

Multi-OS Support

• The OFT10W-3455J supports Android, Linux, and Windows 10 OS. The selected OS is pre-loaded in the system.

Dual Display

• Supports secondary display via external HDMI interface. Intel® HD Graphics 500 Integrated.

Wide Range DC-Input

• Covers more market uses that require 9V-36V wide range DC-in power supply.

Fanless Operation

• The OFT is based on the Intel® Celeron J3455 Quad Core SoC Processor up to 2.3GHz with a heat spreader design providing fanless & quiet operation.

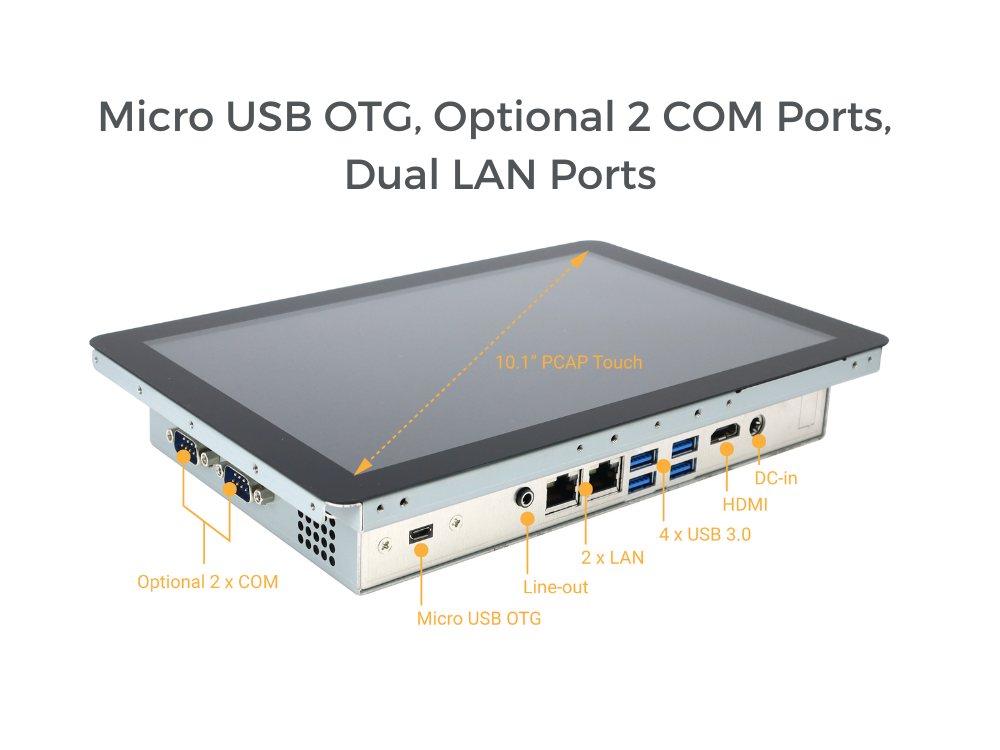

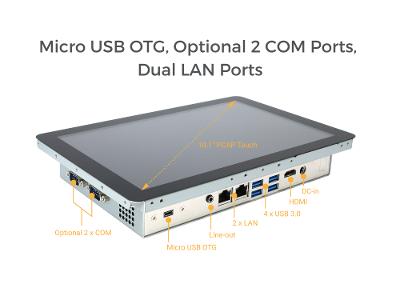

Rich External I/O, Optional 2 COM Ports

• 4 x USB 3.0, HDMI, Dual LAN, Line-out, Micro USB OTG, and 2 COM ports via customer installed serial cables utilizing the OFT’s knock-outs.

Product Longevity

• Long product lifecycle and support of at least 5+ years.

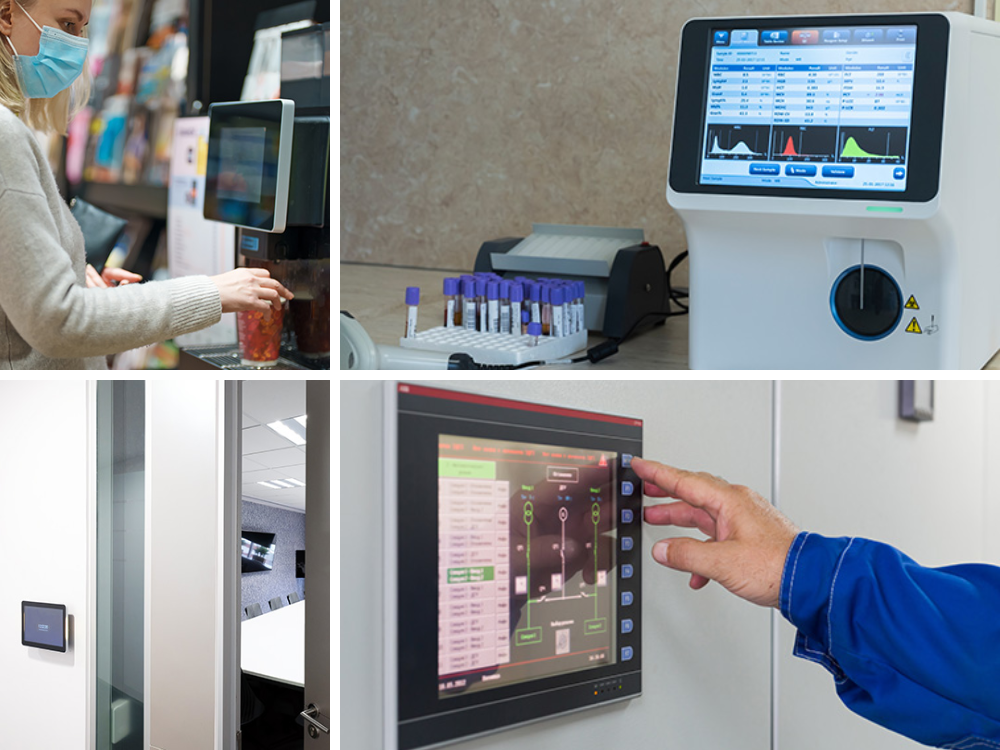

Target Applications

Interactive Kiosk HMI, Retail, Gaming

• Beverage Mixer/Dispensers
• Vending Machines
• Key Locker System with Touch HMI
• Small Retail POS System
• Lottery POS
• Cash Register Machines User Interface

Factory Automation / Light Industrial HMI

• 3D Printer User Control Interface
• Packing, Sawing Machine
• QA System User Interface
• Automotive Diagnostic HMI
• Lift System with Touch HMI
• Repair Devices HMI
• Industrial Vacuum HMI
• AC Machine User Control Interface

Medical Devices

• Surgical Room Lighting Control HMI
• Nitric Oxide Generator Machine HMI
• Lab (Blood, Urinary) Diagnostic Devices

Network, Audio, Visual

• Meeting Room Scheduler
• Building Automation HMI
• Stage Lighting Control Console HMI
• Digital Audio, Video, Network Devices with Touch Control interface

Multi-Touch Computing Made Easy!

The OFT series is designed with many essential features required by almost every embedded applications. It is a multi-purpose open frame tablet for OEMs to shorten their development time and reduce development and product cost.

BCM’s Open Frame Tablet (OFT) Series offers an easy, cost-effective way to modernize products with user-friendly, multi-touch LCD technology.
