HPM-SRSUA: A High Performance Computing Motherboard with IPMI 2.0 Support

BCM, USA, 21.06.2023 - BCM’s HPM-SRSUA is a server-grade ATX motherboard (12”x9.6”) powered by the 4th Gen Intel® Xeon® Scalable processors, formerly Sapphire Rapids, in LGA4677 single-socket platform. The 4th Gen Intel® Xeon® processors have the most built-in accelerators of any CPU on the market to improve performance in AI, analytics, networking, storage, and HPC.

A similar platform with dual CPU sockets, HPM-SRSDE, will be introduced later in Q3 for applications that require advanced high-performance computing.

Fewer surprises with product continuity and long-life availability

HPM-SRSUA is designed to deliver flexibility and server-class performance in industries that are accustomed to lengthy certification cycles. Compute continuity is the highest priority for our customers, who need to minimize the impact of bringing in new products. Customers are going to get the earliest possible access to the latest tech while benefitting from the longest possible product life cycle.

Why IPMI 2.0 Remote Monitoring and Management?

The inclusion of an onboard baseboard management controller (BMC) and the intelligent platform management interface (IPMI 2.0) offers system administrators the ability to monitor and manage hardware remotely, regardless of their location and time zone. This convenient accessibility empowers administrators to perform various tasks, such as adjusting startup settings, conducting real-time system health diagnostics, executing firmware and operating system upgrades, and scheduling predictive maintenance. Furthermore, the IPMI status monitor provides administrators with crucial information, including CPU temperature, fan speed, voltage monitoring, fan speed control, and case open detection data. IPMI plays a significant role in smart healthcare, medical, smart manufacturing, smart cities, and other safety-critical applications that require long-lasting systems, high performance, security, and remote management.

Find out more about the HPM-SRSUA in the Solution Brief "BCM Delivers Fast, Extended Access to 4th Gen Intel® Xeon® Scalable Platform Innovations".

Software support for a wide variety of operating systems

• Windows 10 IoT Enterprise LTSC 2021
• Windows 11 IoT Enterprise
• Windows Server IoT 2019 with VT-d disabled
• Windows Server IoT 2022
• Ubuntu 20.04 LTS or later
• Red Hat Enterprise Linux (RHEL) 8.2 and later

Focused Applications and benefits brought by HPM-SRSUA

• Healthcare - image guided therapy and accelerating disease diagnosis
• Life Sciences - genomics, computational chemistry, and bioinformatics
• Smart Manufacturing - automation and real-time defect detection
• Smart Cities - security, traffic management, and air quality monitoring

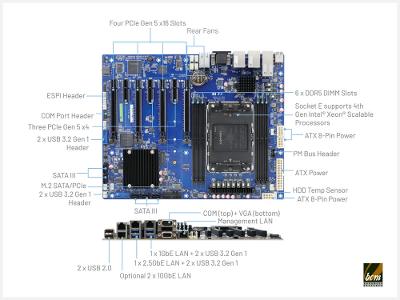

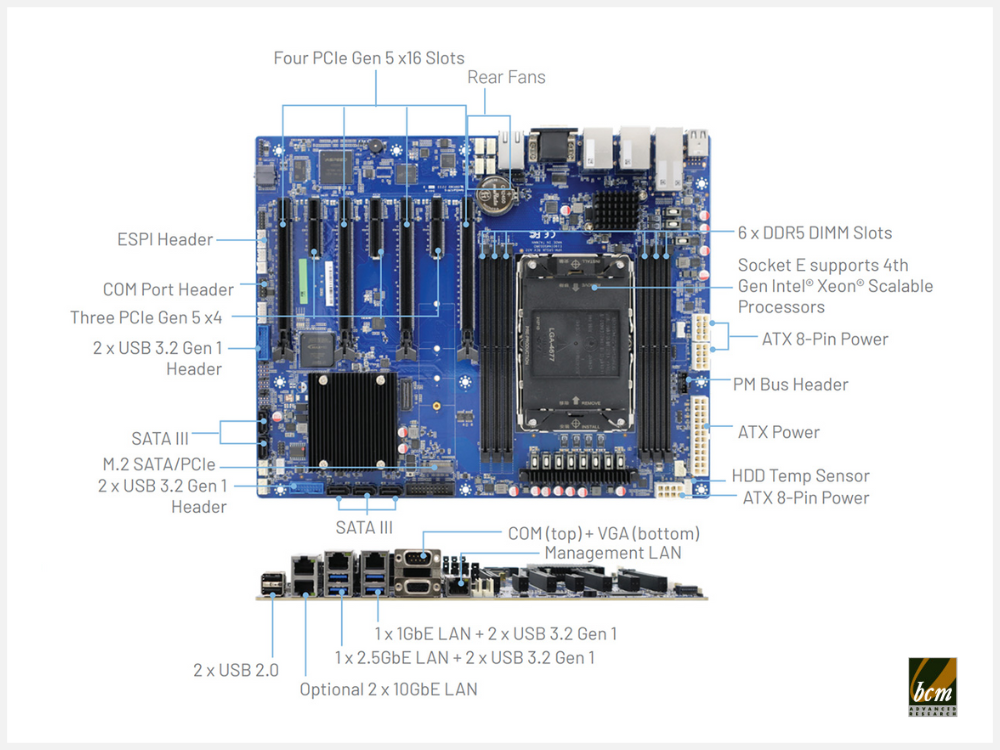

Hardware Highlight

• Supports 4th Gen Intel® Xeon Scalable Processor up to 250W TDP
• Six DDR5 DIMM slots operate at 4800/4400 MHz with RDIMM up to 1.5TB
• Multiple Gen 5 PCIe expansion slots (four x16, three x4) support up to four full-height and double-wide GPU cards
• For Storage:
• One M.2 M-Key slot, supports one SATA or one PCIe 3.0; NVMe SSD in 2242, 2260, 2280, 22110 form factors
• Five SATA III (6.0 Gb/s); SATA 1~4 support RAID 0, 1, 5, and 10
• Optional two 10GbE LAN
• Onboard TPM 2.0
• IPMI 2.0 Remote Monitoring and Remote Management
